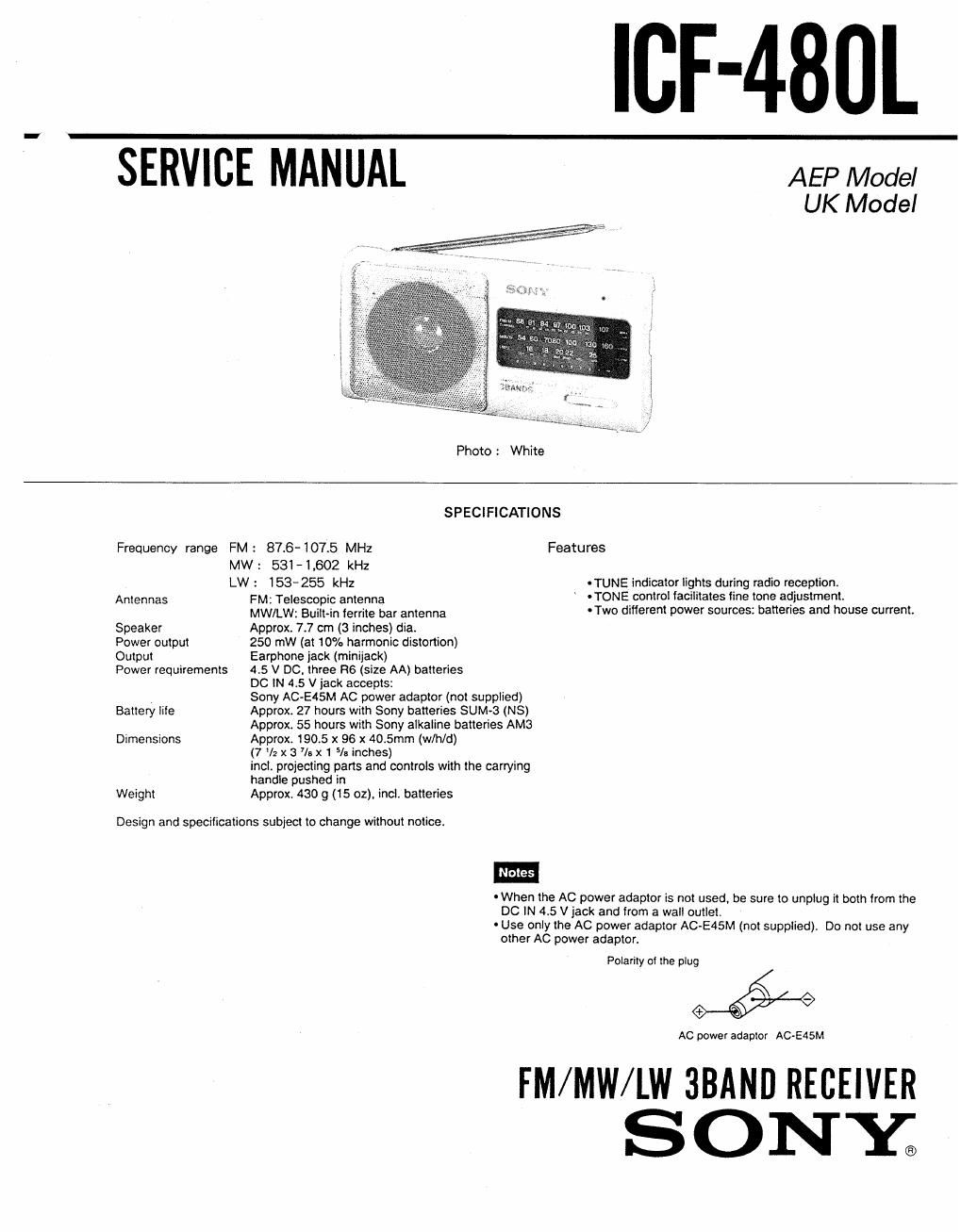

Page 1
ICE-480L
_SERVICE MANUAL
AEP Model
UK Model
Photo : White
SPECIFICATIONS
Frequency range FM: 875-1075 MHz
MW: 5314.602 ka
LW: 153-255 kHz
Antennas FM: Telescopic antenna
MW/LW: Built~in ferrite bar antenna
Speaker Approx. 7.7 cm (3 inches) dia.
Power output 250 NW (at 10% harmonic distortion)
Output Earphone jack (minijack)
Power requirements 4.5 V DC. three R6 (size AA) batteries
DC W 4.5 V jack accepts:
Sony AC-E45M AC power adaptor (not supplied)
Battery life Approx. 27 hours with Sony batteries SUM-3 (NS)
Approx. 55 hours with Sony alkaline batteries AM3
Dimensions Approx. 190.5 x 96 x 40.5mm (w/h/d)
(7 /2 x 3 15 x 1 5/: inches)
incl. projecting pans and controis with the carrying
handle pushed in
Weight Approx. 430 g (15 oz). incl. batteries
Design and specifications subject to change without notice.
Features
oTUNE indicator lights during radio reception.
vTONE control facilitates tine tone adjustment.
tTwo difierent power sources: batteries and house current.
- When the AC power adaptor is not used. be sure to unplug it both from the
DC IN 45 V jack and from a wall outlet.
° Use only the AC power adaptor AC-E45M (not supplied). Do not use any
other AC power adaptor.
Polarity oi the plug
AC power adaptor AC-EASM
FM/MW/LW 3BAND RECEIVER
SONX.
Page 2
ICF- 480L
SECTION 1
GENERAL
LOCATION AND FUNCTION CONTROLS
Front
Ava nt
Vordoraelte
Voorkant
Anteriore
,ut
Parts ironal
Rear
Arriere
Riickseite
Achterkant
Posteriore
.us
Parto posterior
This section is extracted from
instruction manual.
How to use the carrying handle J..." an. J1. us
Uitlisation de la poignée de
transport
Verwendung des ngegrifis
Gebrul kvan de draagbeuget
Uso della manigiia dl trasporto
When carrying the radio
Pour transporter la radio
Zurn Tragen des Radios
Voor meedragen van de radio
Quando si trasporta la radio
xfiJ 5.. m.
When using as a stand
Comme support
Zum Autstellen des Radios
Voor geomik als standaard
Quando si utilizza come
supporto
mm 3.5.; Jun: 1! a;
E Speaker
E] Dial scale
E Dial pointer
E BAND selector
(FM/MW/LW)
E Telescopic antenna
E TUNE (tuning) indicator
E TUNE (tuning) control
TONE control
To obtain clear treble. set to H" (high).
To reinforce bass, set to L" (low).
E POWER/VOL (volume) control
Turn left to increase the volume
Battery compartment
El (9 (earphone) jack
The sound through the speaker cannot be heard when an earphone is
connected to the jack
E] DC IN 4.5 v iack
E] Carrying handle
