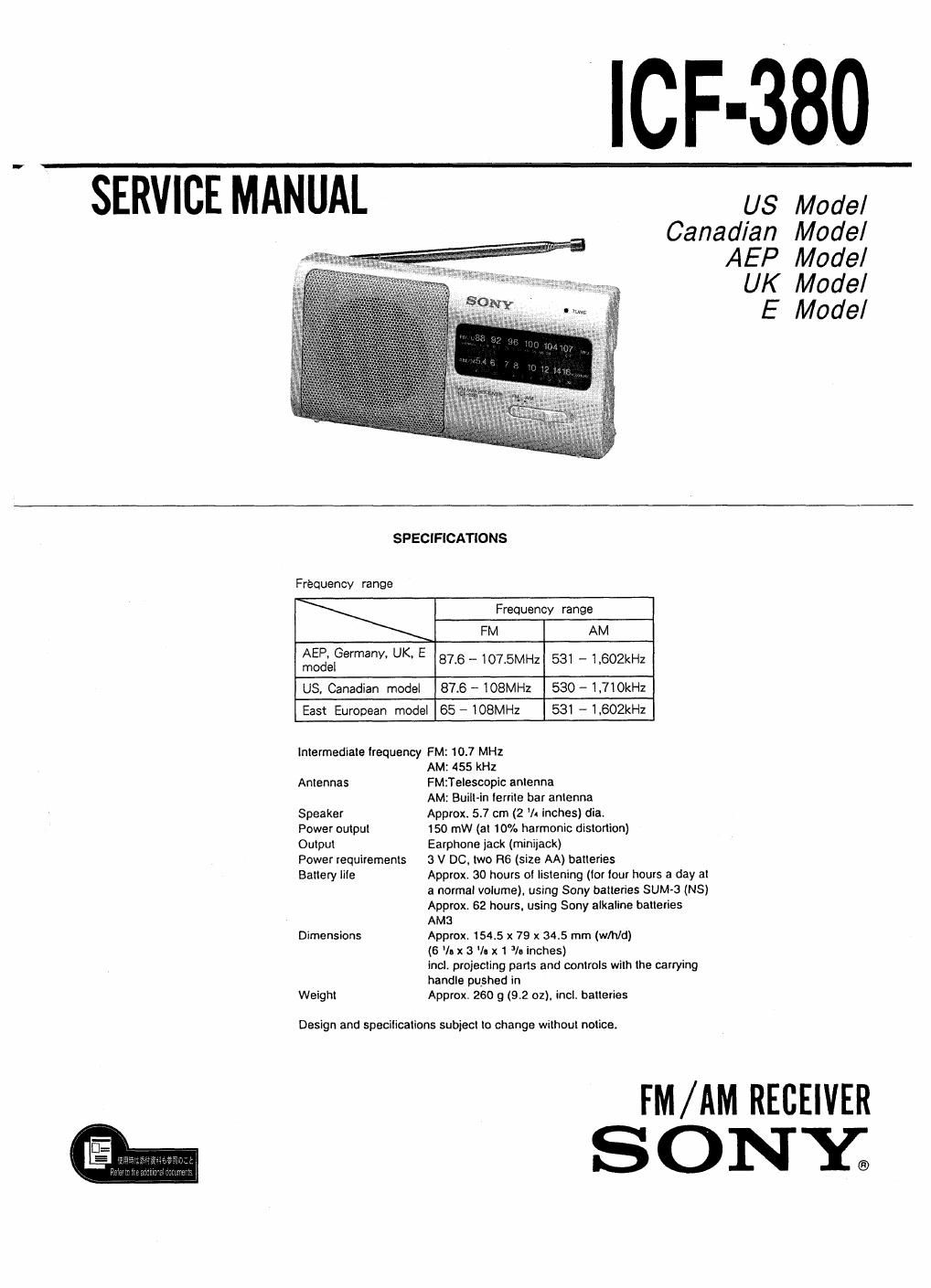

' ICF-380
SERVICE MANUAL us Model
Canadian Model
AEP Model
UK Model
E Model
SPECIFICATIONS
Frequency range
Frequency range
FM AM
AEP, Germany. UK. E _ _
model 876 107.5MH2 531 1,602kHz
US, Canadian model 87.6 - 108MHz 530 - 1,7lOkHz
East European model 65 - 108MHz 531 - 1.602kHz
Intermediate trequency FM: 10.7 MHz
AM: 455 kHz
Antennas FM:Telescopic antenna
AM: Buill'in territe bar antenna
Speaker Approx. 57 cm (2 'l4 inches) dia.
Power output 150 mW (at 10% harmonic distortion)
Output Earphone jack (minijack)
Power requirements 3 V DC, two H6 (size AA) batteries
Battery lite Approx 30 hours of listening (tor Iour hours a day at
a normal volume), using Sony batteries SUM-3 (NS)
Approx 62 hours, using Sony alkaline batteries
AMS
Dimensions Approxi 1545 x 79 x 34.5 mm (w/h/d)
(6 v. x 3 v. x 1 1/. inches)
incl. projecting parts and controls with the carrying
handle pushed in
Weight Approx. 260 g (9.2 oz). incl. batteries
Design and specifications subject to change without notice.
FM /AM RECEIVER
ONY;
Page 2
[5 Location Controls
E Speaker
E Dial scale
E Dial pointer
E BAND selector
E Telescopic antenna
E TUNE (tuning) Indicator
ETUNE (tuning) control
SECWON1
This section is extracted from
instruction manual.
GENERAL
E POWER/VOL (volume) control
Turn Ielt to increase the volume.
E Carrying handle
Battery compartment
(9 (earphone) Jack
The sound through the speaker cannot be heard when an earphone is
connected to the jack.
Front
Avant
Vorderseite
Pane tronlal
Davanti
Voorkant
Rear
Arrlére
Ftiickselte
Pane posterior
Retro
Achterkant
E How to use the anyan handle
Utilisation de la poignée de
transport
Verwendung des Grilles
Empleos del asa de trasporte
Uso delta maniglla di trasporto
Gebruik van de draagbeugel
When carrying the radio
Pour transporterJa radio
Zurn Tragen des Gerats
Cuando transports la radio
Per trasportara la radio
Voor meedragen van de radio
@ When using as a stand
Comma support
Zum Aulstellen des
Germs A
Cuando le emptee
como soporte
Duandp si usa Ia
manlglta come supporto
Gebruik als standaard
