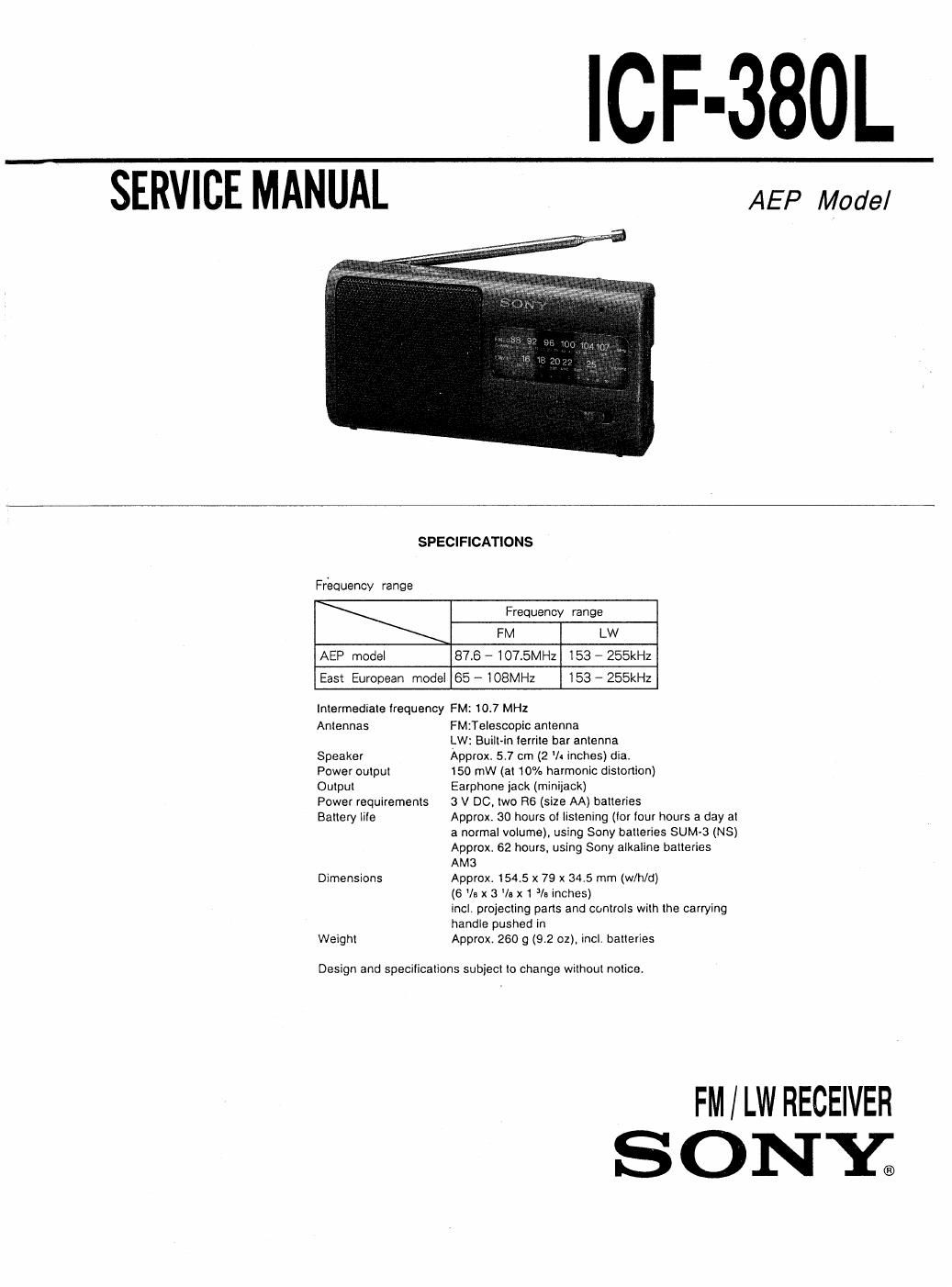

Page 1

ICF-380L

SERVICE MANUAL

AEP Model

Frequency range

SPECIFICATIONS

Frequency range
FM LW
AEP model 87.6 - iO7.5MHz 153 w 255kHz
East European mode! 65 - 108MHz 153 - 255kHz

Intermediate frequency FM: 10.7 MHz

Antennas

Speaker
Power oulput
Output

Power requirements

Battery lite

Dimensions

Weight

FM:Telescopic antenna

EW: Buiilvin ierrite bar antenna
Approx. 5.7 cm (2 /4 inches) dia.
150 mW (at 10% harmonic distortion)

Earphone jack (miniiack)
3 V DC, two R6 (size AA) batteries

Approx. 30 hours of iistening (tor four hours a day an
a normal voiume). using Sony batteries SUM-3 (NS)
Approx. 62 hours. using Sony aikaiine batteries

AMS

Approx. 1545 x 79 x 34.5 mm (w/h/d)
(6 /s x 3 /a x 1 3la inches)
incl. projecting parts and controls with the carrying

handie pushed in

Approx. 260 g (9.2 oz), incl. batteries

Design and specifications subject to change without notice

FM/ LW RECEIVER

SONY

Page 2

II] Speaker

[Zl Dial scale

E] Dial pointer

El BAND selector

E] Telescopic antenna
[ETUNE (tunlng) indicator

.TUNE (tuning) control

E! Location of Controls

SECTION 1

This section is extracted from
instruction manual.

GENERAL

POWER/VOL (volume) control
Turn left to increase the volume.

El Carrying handle
Battery compartment

E] (9 (earphone) lack

The sound through the speaker cannot be heard when an earphone is
connected to the iack.

Front

Avant
Vorderseite
Parte frontal
Davanti
Voorkant

Rear

Arriére
Riickseite
Pane posterior
Retro
Achterkant

[E] How to use the canying handle
Utilisation de la poignée de
transport
Verwendung .des Griffes
Empleos del asa de trasporte
Uso della maniglia di trasporto /
Gebruik van de draagbeugel

When carrying the radio
Pour transporterla radio
Zum Tragen des Gerats
Cuando transporte la radio
Per trasportare la radio

Voor meedragen van de radio

When using as a stand
Comme support

Zum Aulslellen des
Geréts

Cuando lo emplee
corno soporte

Ouando si usa Ia
manlglla come suppono
Gebruik als standaard
