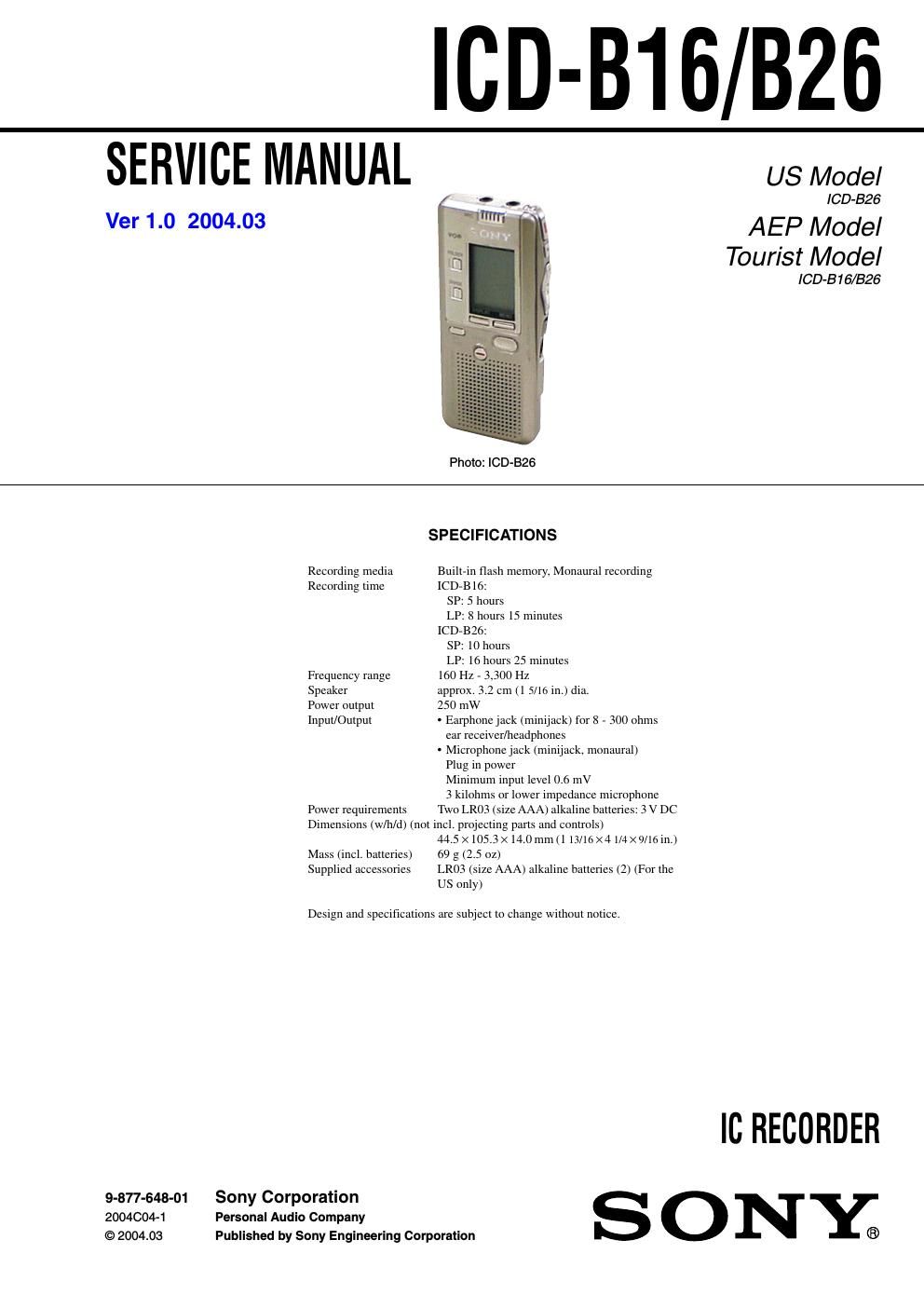

Page 1
2
TABLE OF CONTENTS
1. SERVICE NOTE
................................................................ 3
2. GENERAL
Index to Parts and Controls ..................................................... 4
3. DISASSEMBLY
3-1. Case (Upper) Assy .............................................................. 5
3-2. F-SW Board, P-SW Board .................................................. 6
3-3. Main Board ........................................................................\
. 6
4. DIAGRAMS
4-1. IC Pin Description ............................................................... 7
4-2. Block Diagram .................................................................... 9
4-3. Printed Wiring Board -“ Main Section -“ ............................ 11
4-4. Printed Wiring Board -“ F-SW Section -“ ........................... 12
4-5. Printed Wiring Board -“ P-SW Section -“ ........................... 13
4-6. Schematic Diagram -“ Main Section -“ ............................... 14
4-7. IC Block Diagrams ............................................................ 15
5. EXPLODED VIEWS
5-1. Case Section ...................................................................... 16
5-2. Main Board Section .......................................................... 17
6. ELECTRICAL PARTS LIST ........................................ 18
Notes on Chip Component Replacement
-
Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
ICD-B16/B26
- UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
- Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to about 350°C.
Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!
- Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
- Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
