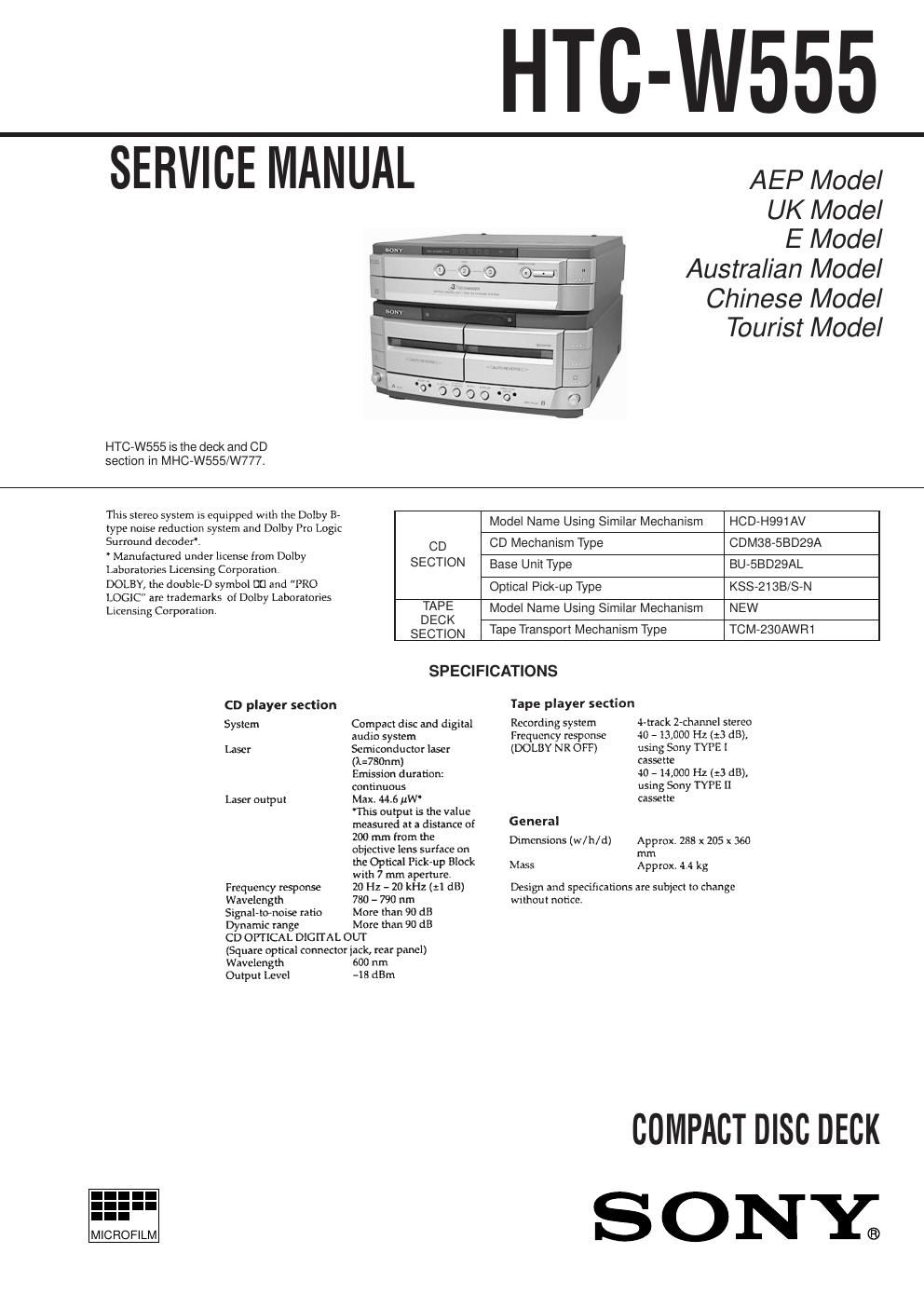

TC-W555
SERVICE MANUAL
HTC-W555 is the deck and CD
section in MHC-W555lW777.
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Tourist Model
This stereo system is equipped with the Dolby B-
type noise reduction system and Dolby Pro Logic
Surround decoder.
' Manufactured under license from Dolby
Laboratories Licensing Corporation
DOLBY. the double-D symbol m and "PRO
LOGIC" are trademarks of Dolby Laboratories
Licensing Corporation.
CD player section
System
laser
laser output
Frequency response
Model Name Using Similar Mechanism HCD-H991AV
CD CD Mechanism Type CDM38-5BD29A
SECTION Base Unit Type BU-SBD29AL
Optical Pick-up Type KSS-21BB/S-N
32?; Model Name Using Similar Mechanism NEW
SECTION Tape Transport Mechanism Type TCM-230AWR1
SPECIFICATIONS
Tape player section
Compact disc and digital Recording system 4-rrack 2-channcl stereo
audio system Frequency response 40 ~ 13,000 Hz (:3 dB),
Semiconductor laser (DOLBY NR OFF) using Sony TYPE l
(1:780nm) cassette
Emission duration: 40 - 14,000 Hz (:3 dB),
continuous using Sony TYPE [1
Max. 44.6 uW cassette
'l'his output is the value
measured at a distance of General
200 mm from the
objective lens surface on
the Optical Pick-up Block
with 7 mm aperture.
20 Hz -« 20 kHz (:1 dB)
Wavelength 780 - 790 nm
Signal-to-noise ratio More than 90 d8
namic range More than 90 :10
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength nm
Output level -18 dBm
MICROFILM
Dimensions (w/h/d)
Mass
Approx. 288 x 205 x 360
mm
Approx. 4.4 kg
Design and specifications are subtert to chmtge
Without notice.
COMPACT DISC DECK
ONY;
