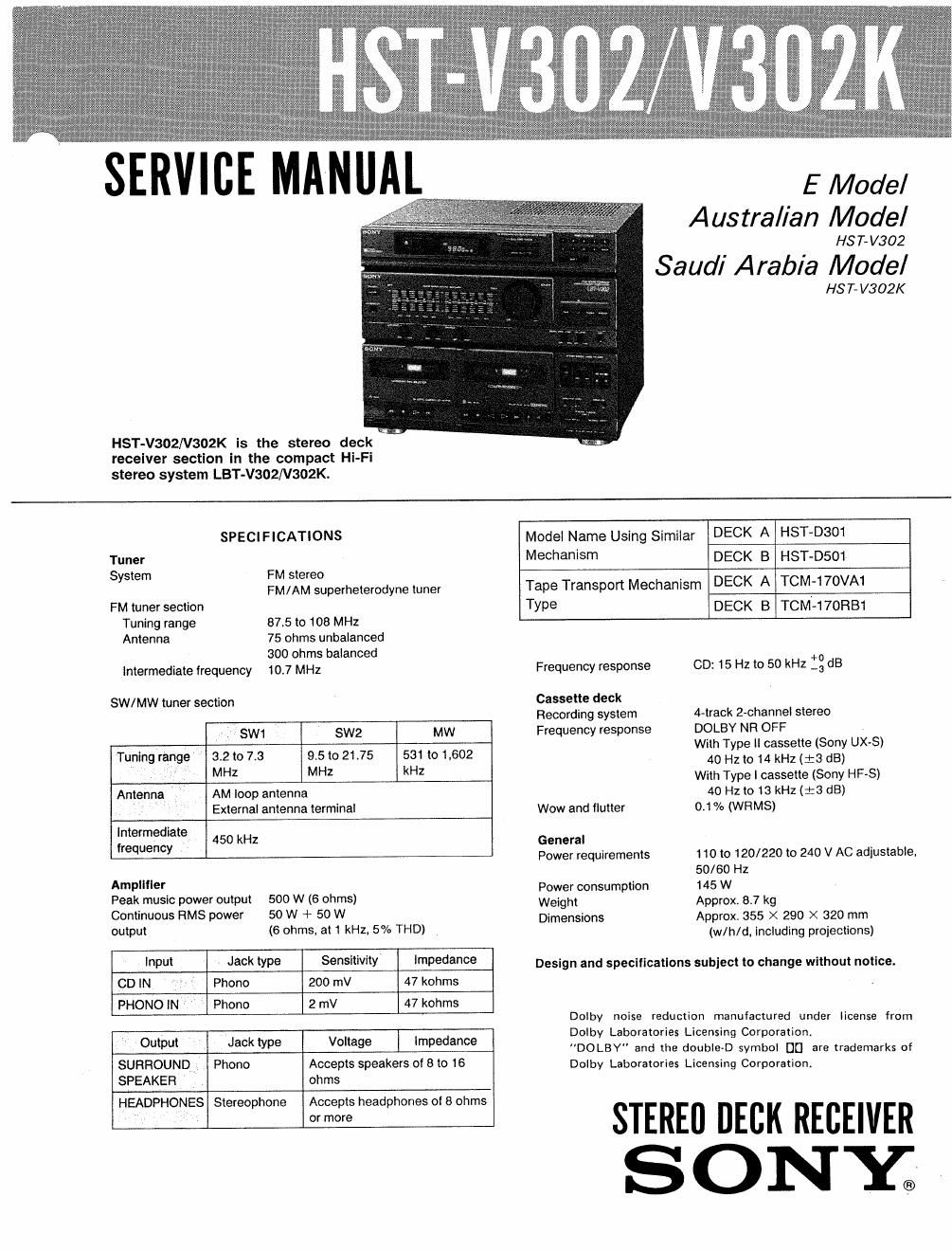

sony hstv 302 service manual

Extracted text from sony hstv 302 service manual (Ocr-read)


Page 2

l
HST-V302/V302K

TABLE OF CONTENTS

Section M Page
Specifications .................................. 1
Model Identification ' - 2
Note on Ceramic Filter (CFl, 2 ) Replacement ~~~~ 2
1. GENERAL

Location of Controls ~~~~~~~~~~~~~~~~~~~ 3
2_ DISASSEMBLY ......................... 4
3. ADJUSTMENTS
3-1 . Mechanical Adjustment ~~~~~~~~~~~~~~~~~~~~ 4
3-2, Electrical Adjustment ~~~~~~~~~~~~~~~~~~~~~ 4
4. DIAGRAMS
4-1. Tape Deck Section Schematic Diagram ------ 9
4-2. Tape Deck, System Control Section

Printed Wiring Boards ~~~~~~~~~~~~~~~~~ 11
4-3. Tuner, Amplifier, Power Supply Section

Printed Wiring Boards ~~~~~~~~~~~~~~~~~~~ 18
4-4. Tuner, System Control, Amplifier, Power Supply

Section Schematic Diagram ~~~~~~~~~~~~~~~~ 21
5. EXPLODED VIEWS ~~~~~~~~~~~~~~~~~~~~ 25
6. ELECTRICAL PARTS LIST ----------- 29

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A 0!? DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BV SONV.

MODEL IDENTIFICATION
-BACK PANEL (TOP LEFT CORNER) -

HST-V302
HST-V302K

E. Australian model:
Saudi Arabia model:

SONY® MODEL N0. m
STEREO DECK RECEIVER

AC: 110/120/220/240 V~50/60 Hz 145 W

l]

SERIAL No.
MADE IN JAPAN

Note on Ceramic Filter (CF1, 2) Replacement.

This set employs three ceramic filters (CH, 2) which
should have the same color marking to identify their center
frequency. Therefore FM IF offset adjustment by patem
bridged is necessary to match the center frequency of the
ceramic filters used with FM intermediate frequency.

color marking
(or-1, 2)
O : Short
>< : Open
Ceramic filter Mount
Intermediate
Color Center frequency requeney
mark (MHz) * A " 3 (MHz)
White 10.750 O X 10,750
Red 10,700 X X 10.700
Black 10.650 X 0 10.650

FM intermediate frequency is determined by the three
types as shown above, Ceramic filters of same center
frequency, i. e., of same color coding should be used for
CF 1, CFZ.

When replacing the ceramic filters, perform the FM
Discriminator Adjustment.
