Page 2

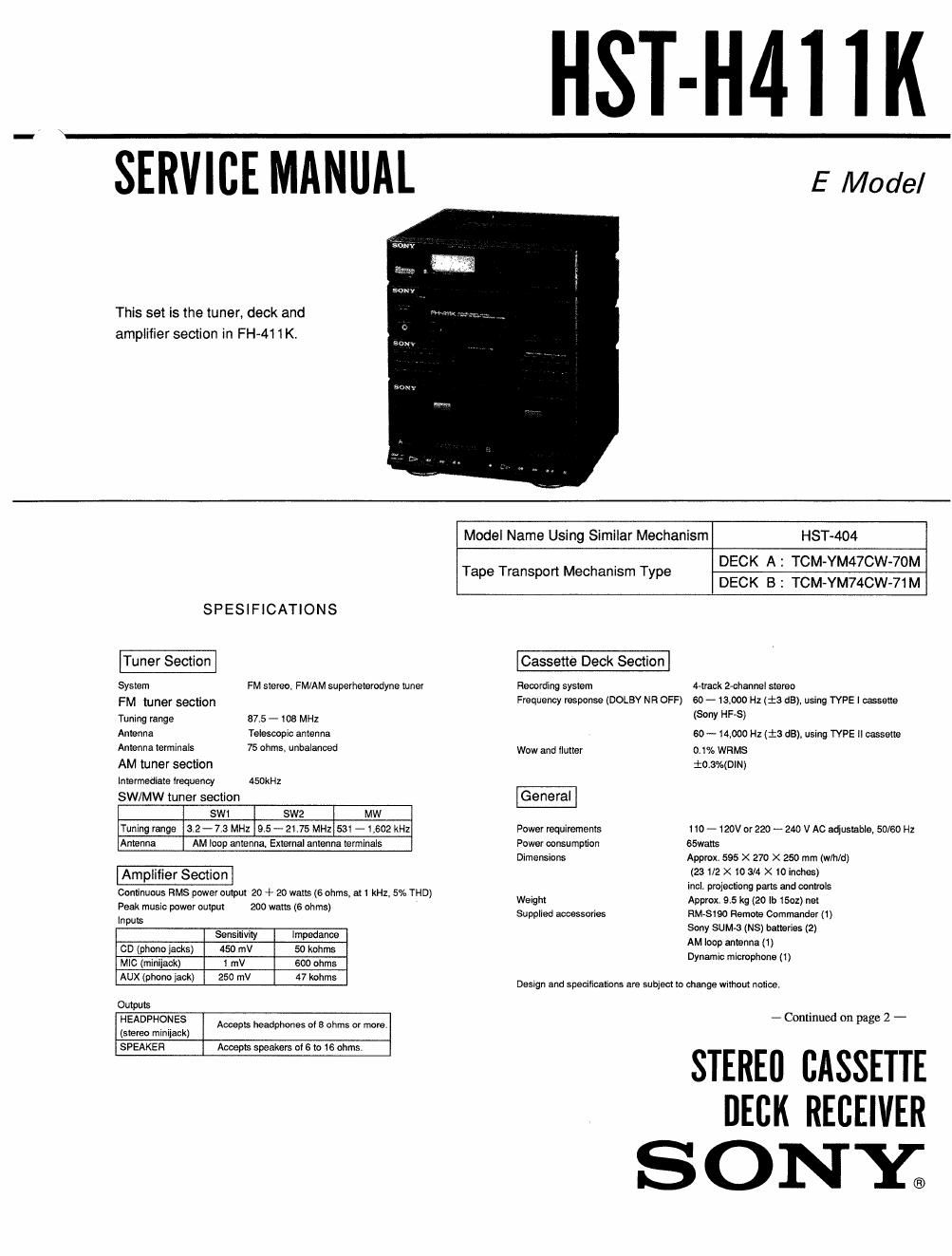

HST-H411K

Tuner section
' MW/SWI/SWZ/FM stations are receivable.
- Vou can store up to 25 stations in the memory.

Amplifier section

SAT (Super Acoustic Turbo) system is
incorporated to reiniorce bass sound

~ The MU LTIPLEX control allows you to
enjoy Karaoke" (singing along to music)
using Multiplex Tapes etiectively.

- The DIGITAL ECHO control makes your
"Karaoke" more impressive

- Erband stereo graphic equalizer adjusts
the sound quality to your preference during
playback,

Cassette deck section
- Double decks allow you to :
- dub tapes.
- play back one deck then the other
successively.

- MODEL IDENTIFICATION -
(Specification Label)

SONY
STEREo CASSETTE DECK RECEIVER

MODEL NO. HST-H41 1 K

WW

4-947-115-01 : E model
4-947-115-11 : Saudi Arabia model

TABLE OF CONTENTS

SECTION 1 GENERAL ........... . .................... o ............... 3
SECTION 2 DISASSEMBLY ~~~~~~~~~~~~~~~~~~~~~~ 6
SECTION 3 MECHANICAL ADJUSTMENT" 6
SECTION 4 ELECTRICAL ADJUSTMENT 7
SECTION 5 DIAGRAM
5-1. Semiconductor Lead Layouts 10
5-2, Circuit Boards Lomtion 10
5-3. Printed Wiring Boards 11
5-4. ' Schematic Diagram -' Deck AMP Section - 15
5-5. Schematic Diagram - Tuner Section - 19
IC Block Diagram ....................................... 21
SECTION 6 EXPLODED VIEWS
frl. Front Panel and Case Section ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 23
6-2. Mechanism Deck Section (1) '~ - 24
6-3. Mechanism Deck Section (2) " - 25
6-4. Mechanism Deck,Secli0n (3) ~ 26
SECTION 7 ELECTRICAL PARTS LIST ~~~~~~~~ ' 27

Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporationi
"DOLBY and the double-D symbol DC] are trademarks of
Dolby Laboratories Licensing Corporation.

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A 05! DOTTED
LINE WITH MARK & ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
