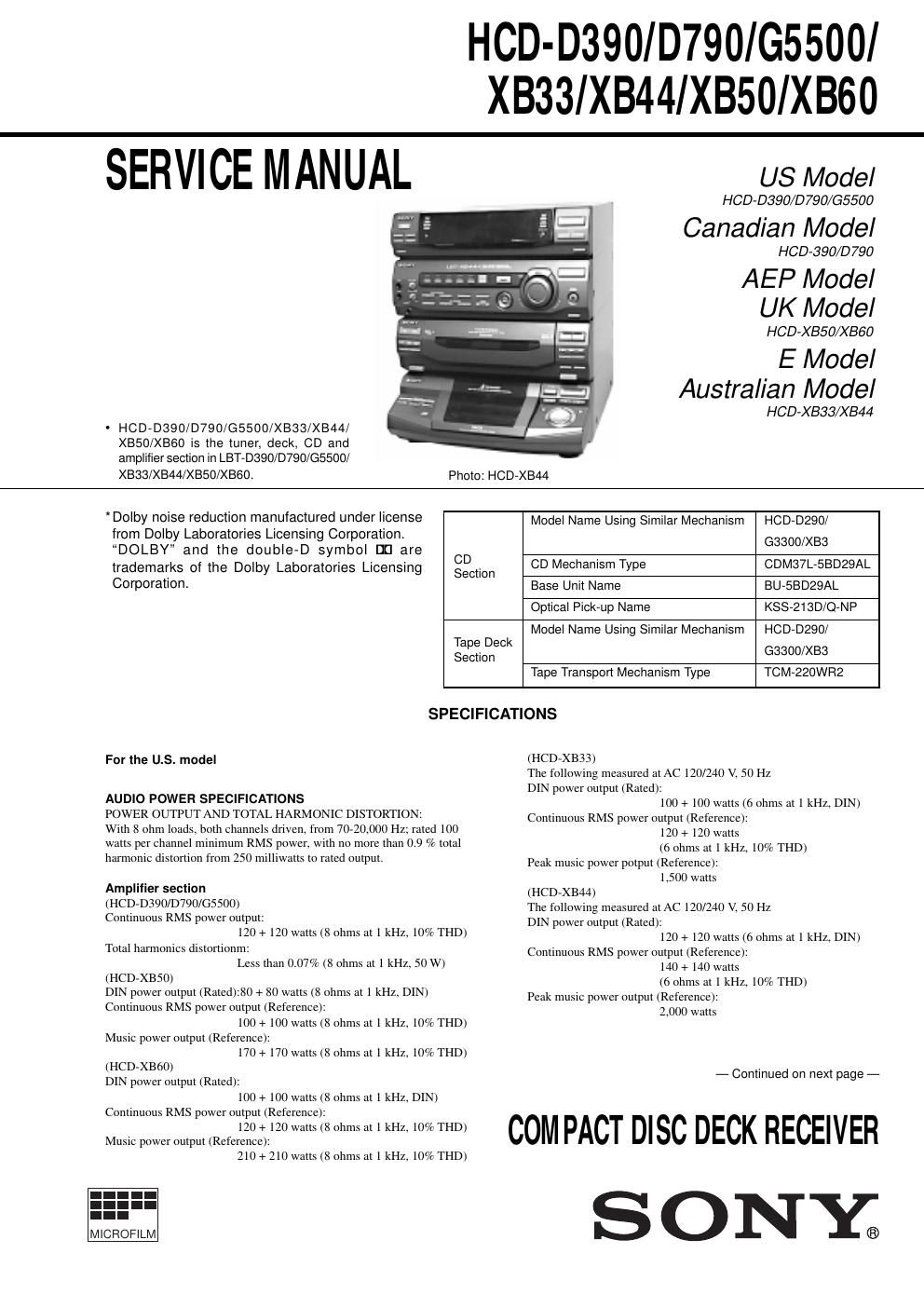

Page 1
Inputs
PHONO IN (phono jacks):
sensitivity 3 mV, impedance 47 kilohms
MIX MIC (phone jack): sensitivity 1 mV, impedance 10 kilohms
(HCD-D390/D790/G5500)
VIDEO (AUDIO) IN (phono jacks):
sensitivity 250 mV, impedance 47 kilohms
(HCD-XB33/XB44/XB50/XB60)
VIDEO/MD (AUDIO) IN (phono jacks):
sensitivity 250 mV, impedance 47 kilohms
Outputs
PHONES (stereo phone jack):
accepts headphones of 8 ohms or more
(HCD-XB33/XB44/XB50/XB60)
VIDEO/MD (AUDIO) OUT (phono jacks):
voltage 250 mV, impedance 1 kilohm
SPEAKER:
(HCD-D390/D790/G5500/XB50/XB60)
accepts impedance of 8 to 16 ohms
(HCD-XB33/XB44)
impedance of 6 to 16 ohms
SURROUND SPEAKER:
(HCD-D790/XB33/XB50/XB60 only)
accepts impedance of 16 ohms
CD player section
System Compact disc and digital audio system
Laser Semiconductor laser (l = 780nm).
Emission
duration: continuous
Laser output Max. 44.6µW*
*This output is the value measured at a
distance of 200 mm from the objective lens
surface on the Optical Pick-up Block with 7
mm aperture.
Wavelength 780 Ð 790 nm
Frequency response 2 Hz Ð 20 kHz (±0.5 dB)
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
(HCD-XB33/XB44/XB50/XB60)
CD DIGITAL OUT
(square optical connector jack, rear panel)
Wave length: 600 nm
Output level: Ð 18 dBm
Tape player section
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
60 Ð 13,000 Hz (±3 dB), using a Sony
TYPE I cassette
60 Ð 14,000 Hz (±3 dB), using a Sony
TYPE II cassette
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner sectionTuning range
(2 band model)
North American model:: 87.5 - 108.0 MHz (100 kHz step)
Other models: 87.5 - 108.0 MHz (50 kHz step)
(3 band model) 87.5 -108.0 MHz (50 kHz step)
(4 band model) 87.5 -108.0 MHz (50 kHz step)
65.0 - 74.0 MHz (10 kHz step) OIRT
UKV: 65.0 - 74.0 MHz (10 kHz step) POLAR
STEREO
Antenna FM wire antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
AM tuner sectionTuning range
(2 band model)
North American model: 530 Ð 1,710 KHz (with the tuning interval set
at 10 kHz)
531 Ð 1,710 KHz (with the tuning interval set
at 9 kHz)
Other models: 531 Ð 1,602 kHz
(with the tuning interval set at 9 kHz)
530 Ð 1,710 KHz
(with the tuning interval set at 10 kHz)
(3 band and 4 band models):
MW: 531 Ð 1,602 kHz
(with the tuning interval set at 9 kHz)
LW: 153 Ð 279 kHz
(with the tuning interval set at 3 kHz)
Antenna AM loop antenna, External antenna terminals
Intermediate frequency 450 kHz
General
Power requirements
North American model: 120 V AC, 60 Hz
European model: 230 V AC, 50/60 Hz
Mexican model: 120 V AC, 50/60 Hz
Australian and South African models:
220 Ð 240 V AC, 50/60 Hz
Thailand model:: 220 Ð 240 V AC, 50/60 Hz
Other models: 110 Ð 120 V or 220 Ð 240 V
AC, 50/60 Hz Adjustable with voltage selector
Power consumption
(HCD-D390/G5500): 170 watts
(HCD-D790): 198 watts
(HCD-XB50): 190 watts
(HCD-XB60): 230 watts
(HCD-XB33): 240 watts
(HCD-XB44): 250 watts
Dimensions (w/h/d) Approx. 355 x 425 x 435 mm (14 x 16
3/4 x 17 1/4 in) incl. projecting parts and controls
Mass
(HCD-D390/G5500): Approx. 12.5 kg (27 lb 9 oz.)
(HCD-D790/XB50/XB60): Approx. 13.0 kg (28 lb 11 oz.)
(HCD-XB33/XB44):
Approx. 14.0 kg (30 lb 14 oz.)
Supplied accessories: AM loop antenna (1)
Remote RM-SD70S (1)
Size AA (R6) batteries (2)
FM wire antenna (1)
Speaker cords* (2)
* except for HCD-D390/G5500/XB33/XB50
Design and specifications are subject to change without notice.
Ñ 2 Ñ
Page 2
Ñ 3 Ñ
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part having
a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturersÕ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The ÒlimitÓ indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
To Exposed Metal
Parts on Set
0.15
µF
1.5 k ½
AC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.
The following caution label is located inside the unit.
Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Notes on chip component replacement
¥ Never reuse a disconnected chip component.
¥ Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
¥ Keep the temperature of soldering iron around 270ûC
during repairing.
¥ Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
¥ Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH
MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT
Ë LA SƒCURITƒ!
LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES
DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT
CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY
DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU
DANS LES SUPPƒMENTS PUBLIƒS PAR SONY.
