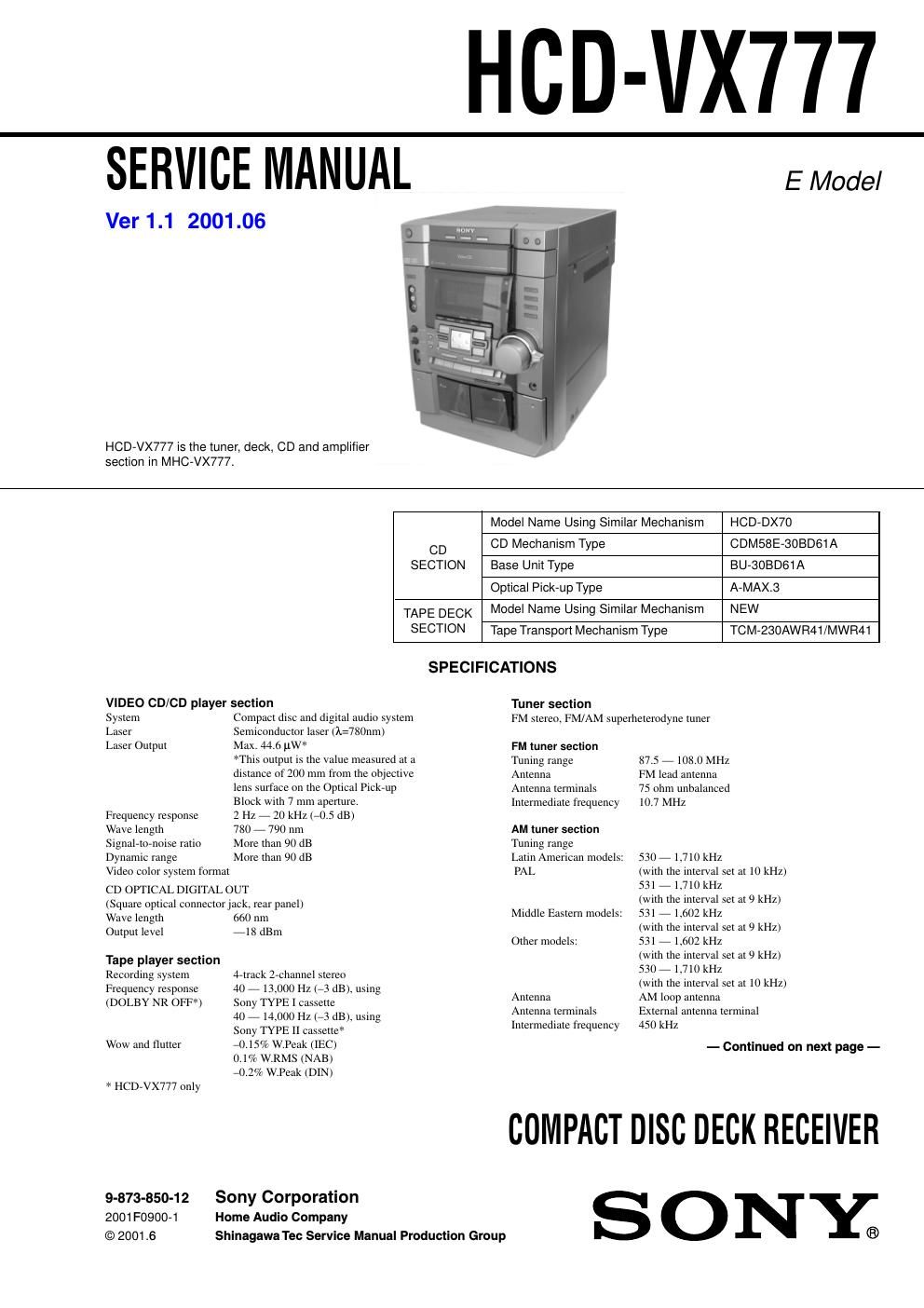

sony hcd vx 777

Extracted text from sony hcd vx 777 (Ocr-read)


Page 2

3 HCD-VX777 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement Never reuse a disconnected chip component. Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing Keep the temperature of soldering iron around 270˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. MODEL IDENTIFICATION - BACK PANEL - PARTS No. -Abbreviation EA : Saudi Arabia model IA : Indonesian model SP : Singapore model TH : Thai model MODEL E, EA, SP, IA models TH model PARTS No. 4-232-028-1s 4-232-028-5s SETTING THE TIME This section is extracted from instruction manual. 1 Turn on the system. 2 Press CLOCK/TIMER SET on the remote. When you set the time for the first time, proceed to step 5. 3 Press cursor V/v repeatedly to select CLOCK SET. 4 Press ENTER. 5 Press cursor V/v repeatedly to set the hour. 6 Press ENTER. 7 Press cursor V/v repeatedly to set the minute. 8 Press ENTER. The clock starts working. If you have made a mistake or want to change the time, start over from step 2. NoteThe clock settings are canceled when you disconnect the power cord or if a power failure occurs.
