Sony hcd vr50 hcd vr70

This is the 98 pages manual for sony hcd vr50 hcd vr70.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 98
left right
sony hcd vr50 hcd vr70

Extracted text from sony hcd vr50 hcd vr70 (Ocr-read)

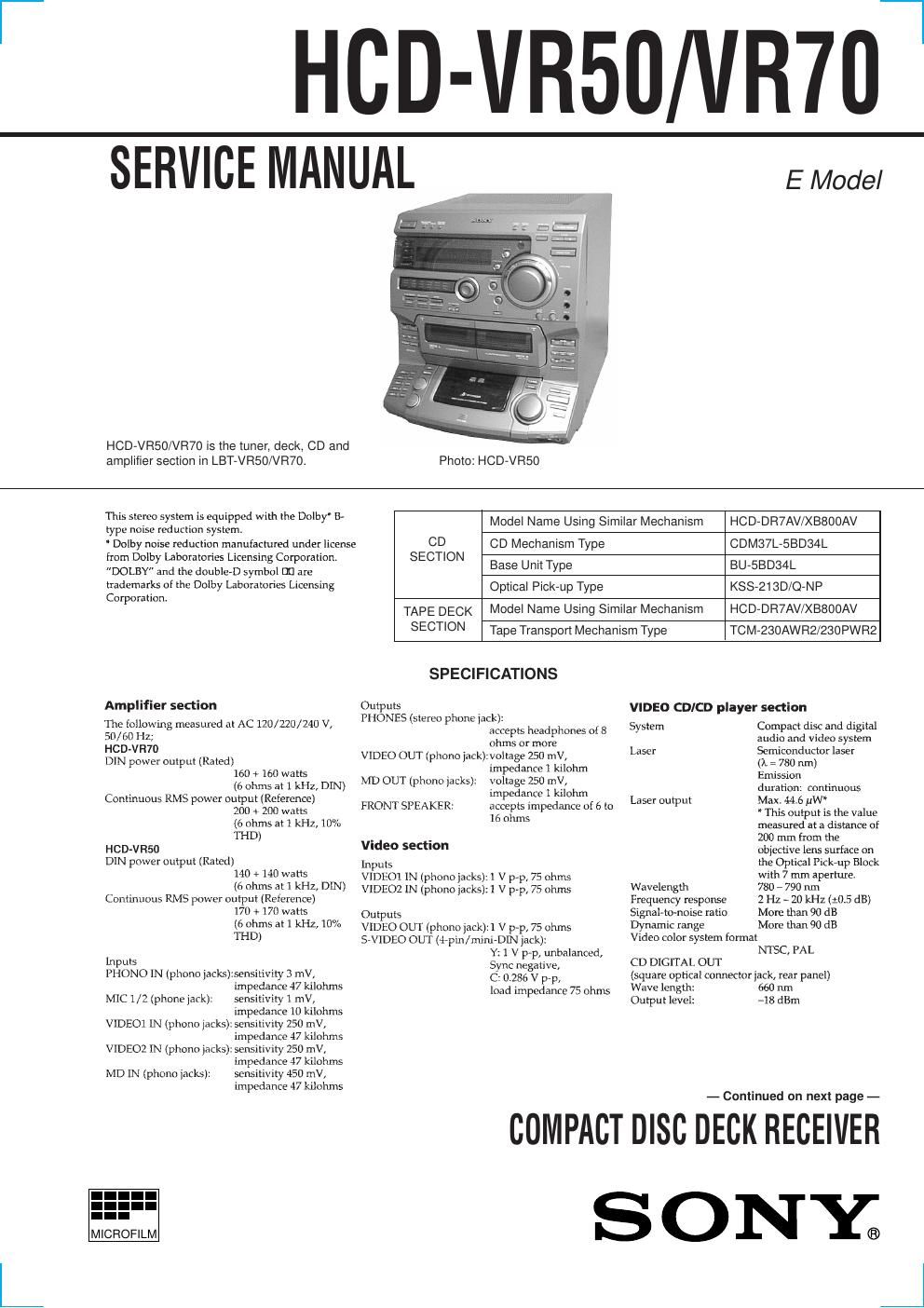

Page 1

Ð 2 Ð PARTS NO. MODEL 4-214-791-0¹VR50: MY, SP 4-214-791-1¹VR50: EA 4-214-792-0¹VR70: MY, SP 4-214-792-1¹VR70: IA MODEL IDENTIFICATION Ñ BACK PANEL Ñ ¥ Abbreviation MY : Malaysia model SP : Singapore model IA : Indonesia model EA : Saudi Arabia model Parts No. CAUTIONUse of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing ¥ Keep the temperature of soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior.
