Sony hcd v 818 2

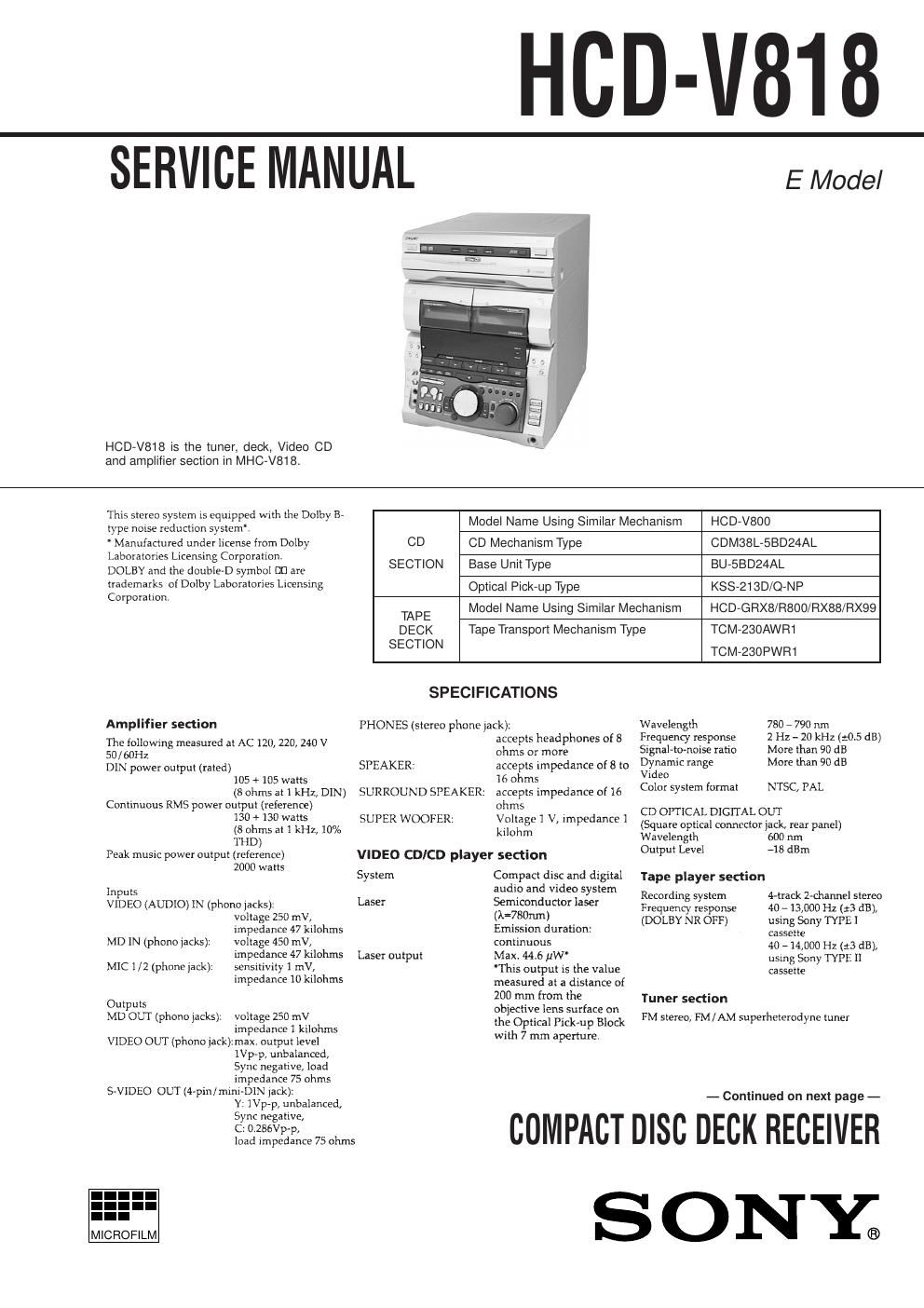

This is the 92 pages manual for sony hcd v 818 2.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 92
left right
sony hcd v 818 2

Extracted text from sony hcd v 818 2 (Ocr-read)


Page 1

Ð 2 Ð SELF DIAGNOSIS This unit is equipped with a self-diagnosis function. The function is used for diagnosing the conditions of the circuits of the VIDEO board. The circuits can be determined if normal or abnormal by the lighting of D502 of the VIDEO board. Lighting of D502 When lit : Operates normally Blinks repeatedly : The circuit may be faulty. [VIDEO BOARD] (SIDE A) SL501 D502 SL502 IC507 IC505 CT503 SL503 TEST MODE VIDEO FREQUENCY

Page 2

Ð 3 Ð CAUTIONUse of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing ¥ Keep the temperature of soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior. The following caution label is located inside of the unit. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. PARTS No. 4-999-907-0¹ 4-999-907-1¹ 4-999-907-3¹ 4-999-907-4¹ 4-999-907-5¹ MODEL SP, MY EA HK TW IA MODEL IDENTIFICATION Ñ BACK PANEL Ñ ¥ Abbreviation EA : Saudi arabia model HK : Hong Kong model SP : Singapore model MY : Malaysia model TW : Taiwan model IA : Indonesian model. Parts No. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the ÒS curve checkÓ in ÒCD section adjustmentÓ and check that the S curve waveform is output two times.
