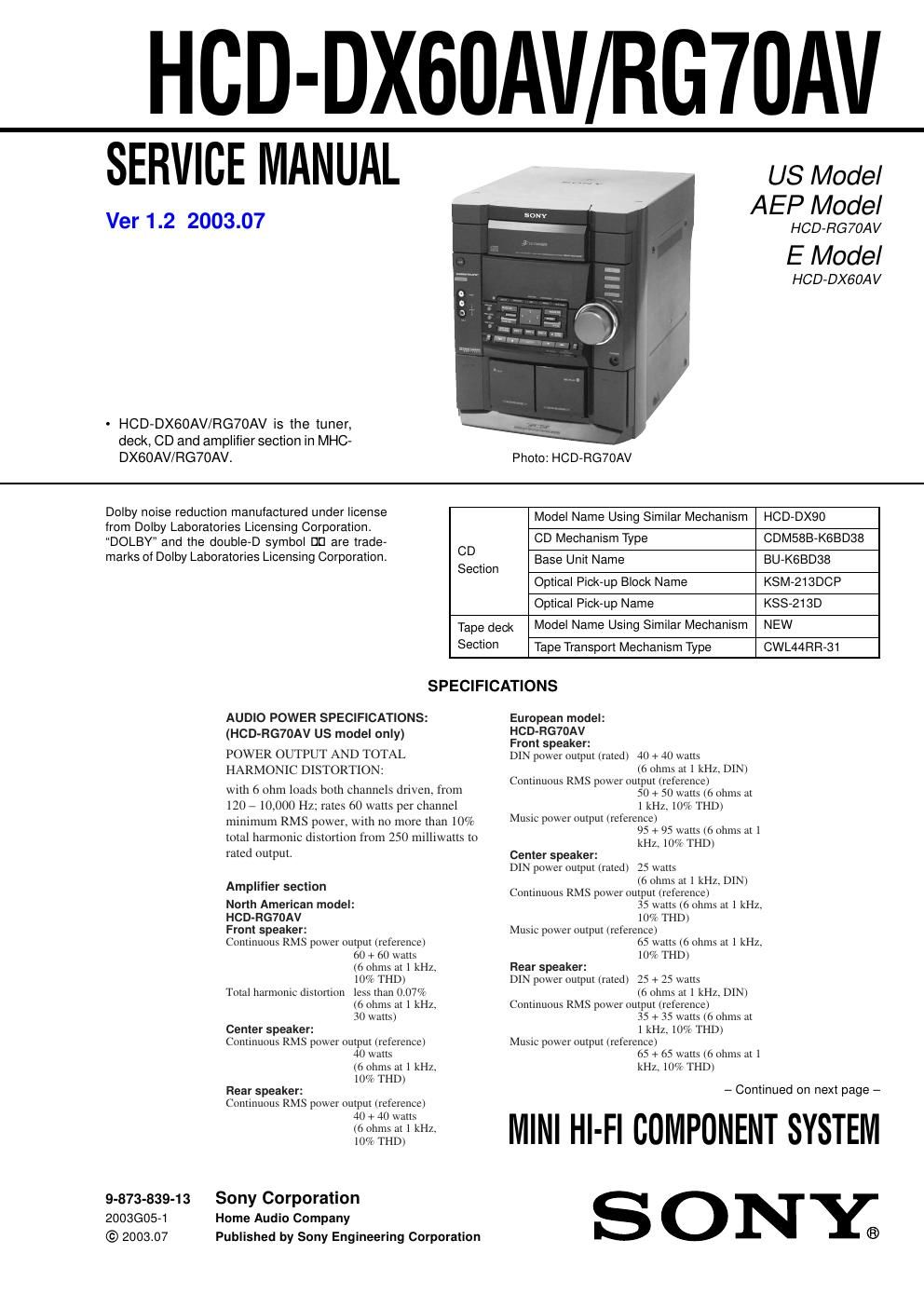

HCD-DX60AV/RG70AV
Outputs
PHONES (stereo mini jack):
accepts headphones of 8
ohms or more
FRONT SPEAKER: accepts impedance of 6 to
16 ohms
REAR SPEAKER: accepts impedance of 6 to
16 ohms
CENTER SPEAKER: accepts impedance of 6 to
16 ohms
WOOFER: voltage 1 V, impedance
1 kilohms
CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
(λ=780 nm)
Emission duration:
continuous
Frequency response 2 Hz -“ 20 kHz (±0.5 dB)
Wavelength 780 -“ 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength 660 nm
Out
put Level-“18 dBm
Tape deck section
Recording system 4-track 2-channel stereo
Frequency response 40 -“ 13,000 Hz (±3 dB),
using Sony TYPE I
cassettes
Wow and flutter±0.2% W.Peak (IEC)
0.35% W.RMS (NAB)
±0.3% W.Peak (DIN)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner sectionTuning range 87.5 -“ 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
AM tuner sectionTuning range
Pan-American model: 530 -“ 1,710 kHz (with the
interval set at 10 kHz)
531 -“ 1,710 kHz (with the
interval set at 9 kHz)
European model: 531 -“ 1,602 kHz (with the
interval set at 9 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
North American model: 120 V AC, 60 Hz
European model: 230 V AC, 50/60 Hz
Mexican model: 120 V AC, 60Hz
Power consumption
North American model: 170 watts
European model: 150 watts
0.5 watts (at the Power
Saving Mode)
Mexican model: 150 watts
Dimensions (w/h/d)
Approx. 280 × 325 × 421 mm
Mass
North American model: Approx. 9.0 kg
European model: Approx. 10.0 kg
Mexican model: Approx. 9.5 kg
Supplied accessories: AM loop antenna (1)
Remote commander (1)
Batteries (2)
FM lead antenna (1)
Front speaker pads (8)
Design and specifications are subject to change
without notice. Mexican model:
HCD-DX60AV
Front speaker:
DIN power output (rated) 45 + 45 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
60 + 60 watts
(6 ohms at 1 kHz, 10%
THD)
Center speaker:
DIN power output (rated) 30 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
40 watts
(8 ohms at 1 kHz, 10%
THD)
Rear speaker:
DIN power output (rated) 30 + 30 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
40 + 40 watts
(6 ohms at 1 kHz, 10%
THD)
Inputs
MD/VIDEO IN (phono jacks):
voltage 250/450 mV,
impedance 47 kilohms
DVD INPUT:
FRONT IN (phono jacks): voltage 450 mV,
impedance 47 kilohms
REAR IN (phono jacks): voltage 450 mV,
impedance 47 kilohms
CENTER IN (phono jacks):
voltage 450 mV,
impedance 47 kilohms
WOOFER IN (phono jacks):
voltage 450 mV,
impedance 47 kilohms
Page 2
3
HCD-DX60AV/RG70AV
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.
Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.
Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
-Keep the temperature of soldering iron around 270ËšC
during repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emis-
sion, observe from more than 30 cm away from the objective lens.SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suit-
able. (See Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k -„¦ 0.15 µF AC
voltmeter
(0.75 V) To Exposed Metal
Parts on Set
Earth Ground
