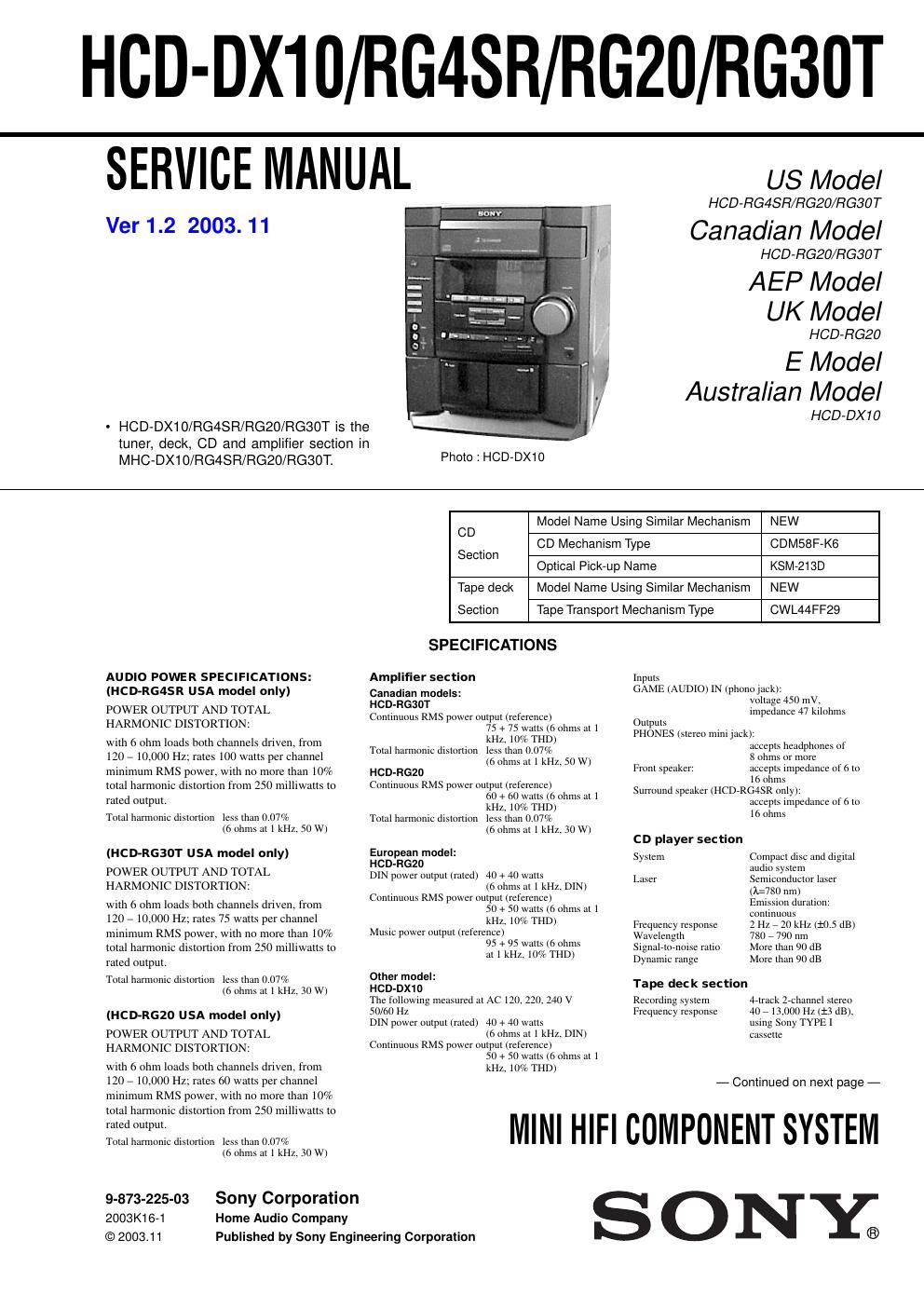

Page 1
2
HCD-DX10/RG4SR/RG20/RG30T
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT
ร- LA SรCURITร!
LES COMPOSANTS IDENTIFรS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHรMATIQUES ET LA LISTE DES PIรCES SONT
CRITIQUES POUR LA SรCURITร DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIรSES SONY
DONT LES NUMรROS SONT DONNรS DANS CE MANUEL OU
DANS LES SUPPรMENTS PUBLIรS PAR SONY.
To Exposed Metal
Parts on Set
0.15 ยตF
1.5 k-ฆAC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
General
Power requirements
North American models: 120 V AC, 60 Hz
European models: 230 V AC, 50/60 Hz
Australian models: 230 - 240 V AC,
50/60 Hz
Mexican models: 120 V AC, 50/60 Hz
Other models: 120 V, 220 V or
230 - 240 V AC,
50/60 Hz
Adjustable with voltage
selector
Power consumption
USA models:
HCD-RG4SR: 160 watts
HCD-RG30T: 115 watts
HCD-RG20: 95 watts
Canadian models:
HCD-RG30T: 115 watts
HCD-RG20: 95 watts
European model:
HCD-RG20: 85 watts
1.0 watts (at the Power
Saving Mode)
Other model:
HCD-DX10: 85 watts
Dimensions (w/h/d)
Approx. 280 ร 325 ร 421 mm
Mass
North American models:
HCD-RG4SR: Approx. 8.7 kg
HCD-RG30T: Approx. 8.2 kg
HCD-RG20: Approx. 7.8 kg
European model:
HCD-RG20: Approx. 8.1 kg
Other model:
HCD-DX10: Approx. 8.2 kg
Design and specifications are subject to change
without notice.
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Pan-American models: 530 - 1,710 kHz (with the
interval set at 10 kHz)
531 - 1,710 kHz (with the
interval set at 9 kHz)
European and Middle Eastern models:
531 - 1,602 kHz (with the
interval set at 9 kHz)
Other models: 531 - 1,602 kHz (with the
interval set at 9 kHz)
530 - 1,710 kHz (with the
interval set at 10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
Page 2
3
HCD-DX10/RG4SR/RG20/RG30T
PARTS No.
This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.
Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
-Keep the temperature of soldering iron around 270หC
during repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens. TABLE OF CONTENTS
MODEL IDENTIFICATION- BACK PANEL -
-Abbreviation
CND : Canadian model
AUS : Australian model
AR : Argentina model
SP : Singapore model
TW : Taiwan model
MX : Mexican model
MY : Malaysia model
E2 : 120V AC Area in E model
E3 : 240V AC Area in E model
E51 : Chilean and Peruvian model
1. GENERAL ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
2. DISASSEMBLY ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6
3. TEST MODE ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท11
4. ELECTRICAL ADJUSTMENTS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท13
5. DIAGRAMS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท15
5-1. Circuit Board Locationยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท15
5-2. Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท16
Tuner/CD Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท16
Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท17
5-3. Printed Wiring Board CD Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท18
5-4. Schematic Diagram CD Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท19
5-5. Printed Wiring Board Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท20
5-6. Schematic Diagram Main Section (1/4)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท21
5-7. Schematic Diagram Main Section (2/4)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท22
5-8. Schematic Diagram Main Section (3/4)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท23
5-9. Schematic Diagram Main Section (4/4)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท24
5-10. Printed Wiring Board Address Sensor,
Driver Motor Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท25
5-11. Printed Wiring Board Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท26
5-12. Schematic Diagram Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท27
5-13. Printed Wiring Board Power Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท28
5-14. Printed Wiring Board Trans Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท29
5-15. Schematic Diagram Trans Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท30
5-16. IC Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท31
5-17. IC Pin Function Descriptionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท34
6. EXPLODED VIEWS
6-1. Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท36
6-2. Front Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท37
6-3. Main Board Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท38
6-4. CD Mechanism Deck Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท39
7. ELECTRICAL PARTS LIST ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท40
MODEL
RG20: US, CND models
RG20: AEP, UK models
DX10: E2, E3, E51, TW models
DX10: AUS, AR, MX models
RG30T
RG4SR
DX10: MY, SP models
PARTS No.
4-234-701-0s
4-234-701-1s
4-234-701-2s
4-234-701-3s
4-234-701-4s
4-234-701-5s
4-234-701-6s
