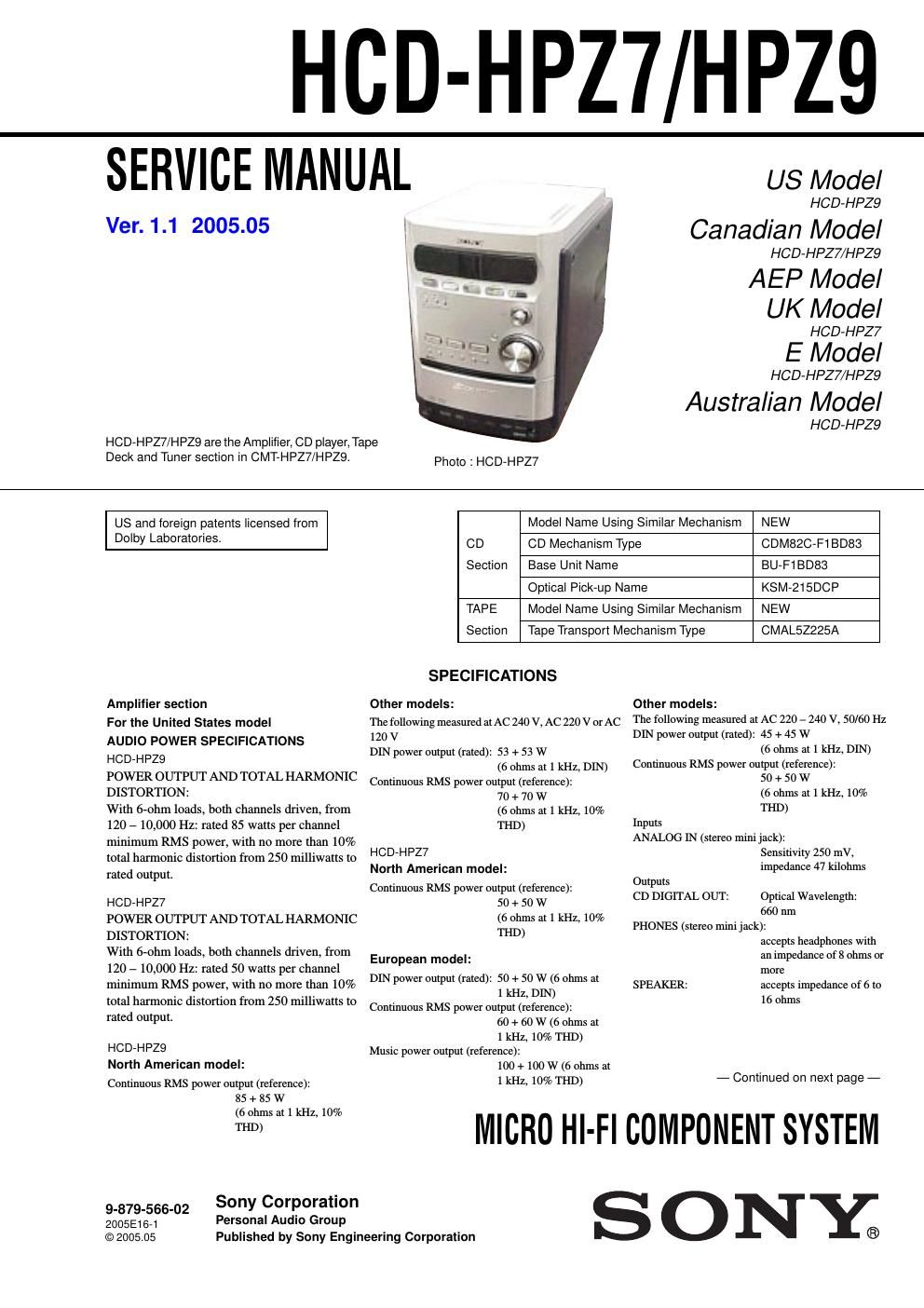

HCD-HPZ7/HPZ9
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT
DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
CD player section
System Compact disc and digital
audio system
Laser Diode Properties Emission duration:
continuous
Laser Output*:
Less than 44.6µW
*This output is the value measurement at a distance of
200 mm from the objective lens surface on the
Optical Pick-up Block with 7 mm aperture.
Frequency response 20 Hz -“ 20 kHz (±0.5 dB)
Wavelength 780 -“ 790 nm
Tape deck section
Recording system 4-track 2-channel stereo
Frequency response 50 -“ 13,000 Hz (±3 dB),
using Sony TYPE I
cassettes
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 -“ 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Pan-American model: 530 -“ 1,710 kHz
(with the tuning interval
set at 10 kHz)
531 -“ 1,710 kHz
(with the tuning interval
set at 9 kHz)
European model: 531 -“ 1,602 kHz
(with the tuning interval
set at 9 kHz)
Other models: 530 -“ 1,710 kHz
(with the tuning interval
set at 10 kHz)
531 -“ 1,602 kHz
(with the tuning interval
set at 9 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
North American model: 120 V AC, 60 Hz
European model: 230 V AC, 50/60 Hz
Other models: 120 V, 220 V or 230 -“
240 V AC, 50/60 Hz
Adjustable with voltage
selector
Power consumption
HPZ9
North American model: 145 W
Other models: 125 W
HPZ7
North American model: 85 W
European model: 95 W
0.25 W (in Power Saving
Mode)
Other models: 90 W
Dimensions (w/h/d) (excl. speakers)
Approx. 198 × 275 ×
341 mm
Mass (excl. speakers)
Amplifier/Tuner/Tape/CD section:
HPZ9 : 7.7 kg
HPZ7 : 7.3 kg
Design and specifications are subject to change
without notice.
