Page 2

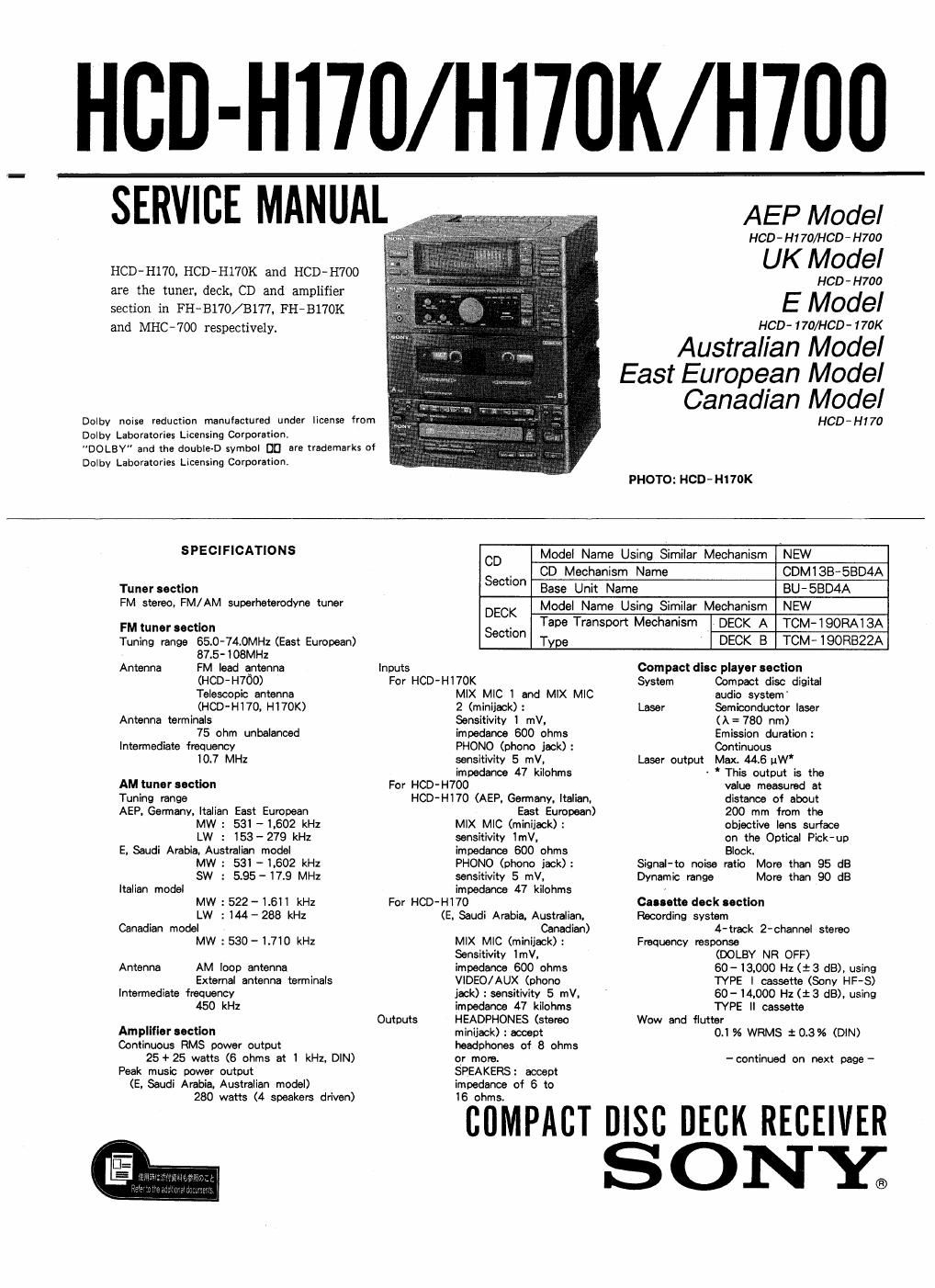

HCD H170/H170K/H700

Speaker section

Speaker system 3 way system

Speaker units
Woofer: 13 cm Elia, cone type
Tweeter: 5 cm dia., cone type
Super tweeter: 2 cm dia., dome

type
Enclosure Bass reflex
Frequency range 60 Hz - 20 kHz
Sensitivity 88 dB/w/m
Rated impedance 6 ohms
Dimensions Approx. 195 x 285 x 230 mm
(7 518x11 114x 9 inches)
Weight Approx. 3.0 kg (6 lb 10 02)
net per speaker
General
Desti- Power Power
nation requirements consumption
AEP. Italian,
Germany. 220- 230V
East European AC, 50/60 Hz 80 watts
model
UK 240V AC.
model 50 Hz 160 watts
E 100V-120V
. . or 220V-
fufgéfib" 240v AC so watts
muffiel '3 adjustable.
° 50/60Hz
Canadian 120V AC,
model 60H: 80 5
Dimensions
Approx. 225 x 285 x 268 mm
(w/h/d)

(8 7/8x 11 114x 10 5/8 inches)
incl. projecting parts and controls
Weight
Approx. 6.2 kg (13 lb 11 oz)
Accessories supplied
AM loop antenna (1)
Remote commander (1)
Sony SUM-3 (NS) batteries (2)
FM lead antenna (1) (HCD-H700 only)
Speaker cords (2)
(HCD-H700, except for the UK
model)

Design and specifications subject to
change without notice.

Note

This appliance conforms with EEC
Directive 87l308/EEC regarding
interference suppression.

This appliance is classified as 3
CLASS 1 LASER product.

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE The OLASS I LASER PRODUCT

KLAss 55,,me iabel Is located on the rear

exterior.

TABLE OF CONTENTS
m m ES:
LSERVICINGNOTES ............... 3
2.GENERAL~~«---~-m---~--- ....................... 5

3. DISASSEMBLY

3.1_ Case ........ ..................... 25
3- 2. POW Block ................................ . 25
3-3.Main Board... ..... .................. ..... "26
3-4. CD Mechanism Block ......................... 25
3-5. TC Mechanism Block ............. 27
3- 6. Volume/ MIC HP/ Display/ SW Board --------- 27

4. MECHANICAL ADJUSTMENTS - - - - ~ 28

5.ELECTRICALADJUSTMENTS---~--~-'-~--~-~ 28

S. DIAGRAMS
6- 1. Semiconductor Lead Layouts ~ ~ - 34
6-2, Circuit Boards Location ~ - 35
6-3. Printed Wiring Boards -Main Section- . ~ . - 87
6-4. Schematic Diagram ~Main Section-~ ~ ~ . - ~ - .. 41
6-5. Schematic Diagram -Sub Section- --------- 46
6-6. Printed Wiring Boards --Sub Section- ------ 51
6-7, Printed Wiring Boards -Display Section-- - - 56
6- 8. Schematic Diagram -Display Section- ------ 59
6-9. Schematic Diagram -BD Section- ' - - - ' ' . . ~ ' ' 62
6- 10, IC Pin Description . .. ........................ 67

7. EXPLODED VIEWS
7- 1, Case, P0wer Section . . . . . ...... . . . ............ 71
7-2. Front Panel, Main Board Section ~ ~ . . - ~ - ~ ~ - - - 72
7- 3, MD Chassis Section ........................... 73
7-4. Mechanism Deck Section (1) 74
7-5. Mechanism Deck Section (2) 75
7-6. CD Section (1)......... ....................... 76
7-7, CD Section (2) ...... ........... 77

a. ELECTRICAL PARTS LIST .......................... 78

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON. THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
