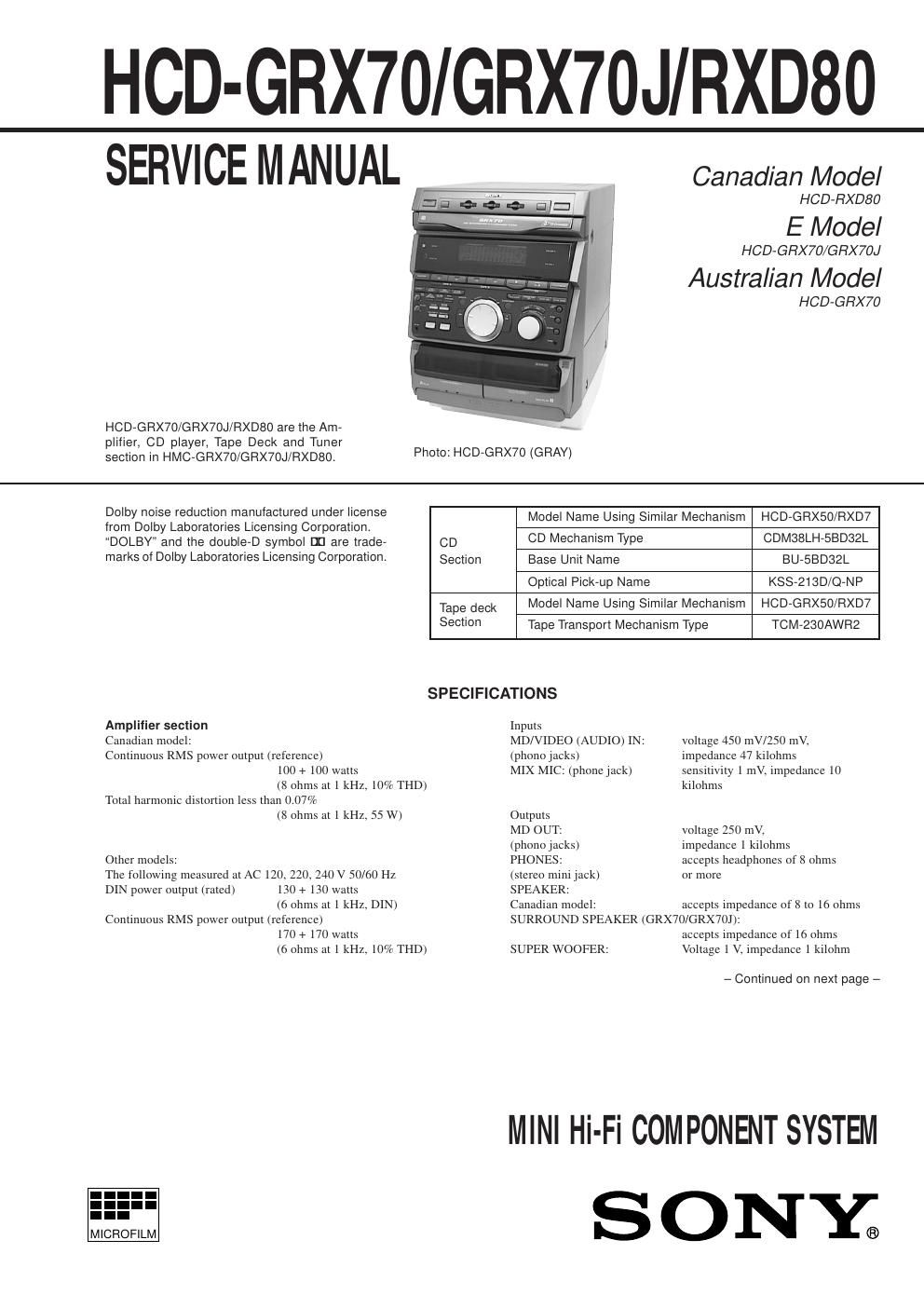

Specifications (continued)
CD player section
System Compact disc and digital audio system
Laser Semiconductor laser (l=780nm)
Emission duration: continuous
Laser output Max. 44.6 mW*
*This output is the value measured at
distance of 200 mm from the objective
lens surface on the Optical Pick-up
Block with 7 mm aperture.
Frequency response 2 Hz - 20 kHz (±0.5 dB)
Wavelength 780 -790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength 600 nm
Output Level -18 dBm
Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 - 13,000 Hz (±3 dB),
(DOLBY NR OFF) using Sony TYPE I cassette
40 - 14,000 Hz (±3 dB),
using Sony TYPE II cassette
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner sectionTuning range 87.5 - 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
UKV tuner section (3 band (FM-AM-UKV) models only)Tuning range 65.0 - 74.0 MHz
Stereo Plus
AM tuner sectionTuning range
2 Band type:
Canadian model: 530 - 1,710 kHz
(with the interval set at 10 kHz)
531 - 1,710 kHz
(with the interval set at 9 kHz)
Other models: 531 - 1,602 kHz
(with the interval set at 9 kHz)
530 - 1,710 kHz
(with the interval set at 10 kHz)
3 Band type:
Middle Eastern models:
MW: 531 - 1,602 kHz
(with the interval set at 9 kHz)
SW: 5.95 - 17.90 MHz
(with the interval set at 5 kHz)
Other models:
MW: 531 - 1,602 kHz
(with the interval set at 9 kHz)
530 - 1,710 kHz
(with the interval set at 10 kHz)
SW: 5.95 - 17.90 MHz
(with the interval set at 5 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHzGeneral
Power requirements
Canadian model: 120 V AC, 60 Hz
Mexican model: 120 V AC, 50/60 Hz
Australian model: 230 - 240 V AC, 50/60 Hz
Thai model: 220 V AC, 50/60 Hz
Other models: 120 V, 220 V, or 230 - 240 V AC,
50/60 Hz
Adjustable with voltage selector
Power consumption 170 watts
Dimensions (w/h/d) Approx. 280 ´ 340 ´ 395 mm
(11
1/8 ´ 13 1/2 ´ 15 5/8 in.)
Mass
Canadian model: Approx. 10.2 kg
Other models: Approx. 10.6 kg
Supplied accessories: AM loop antenna (1)
Remote Commander (1)
Batteries (2)
FM lead antenna (1)
Speaker cords (2)
Front speaker pads (8)
Design and specifications are subject to change without notice.
