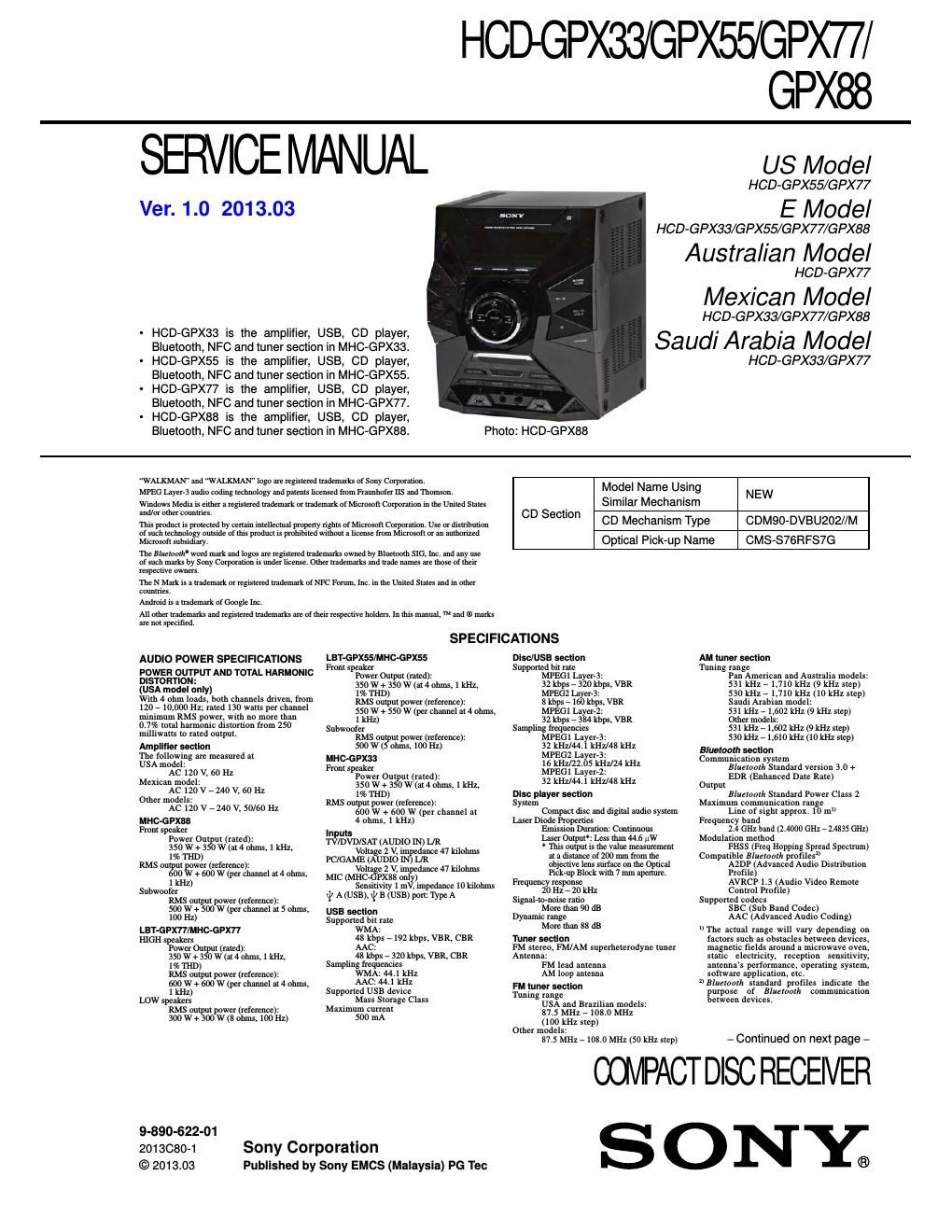

Sony hcd gpx 33 gpx 55 gpx 77 gpx 88 ver 1 0

This is the 82 pages manual for sony hcd gpx 33 gpx 55 gpx 77 gpx 88 ver 1 0.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 82
left right
sony hcd gpx 33 gpx 55 gpx 77 gpx 88 ver 1 0

Extracted text from sony hcd gpx 33 gpx 55 gpx 77 gpx 88 ver 1 0 (Ocr-read)


Page 2

HCD-GPX33/G PX55/G PX77/G PX88

General

Power icqniicincnis
USA model
AC 120 V160 in
Mexican nnnici,
AC 120 v 7240 v, 50 1-12
DIIIer models.
AC 110 v 7240 v, 50/50 1-12

Power consumpflun
MHCVGPXXS. 250 w
LBTVGPX77IMHCVGPX77. 265 w
LBTVGPXSSIMHCVGPXSS: 255 w
MHCVGPXBZ. 195 w

Dimenuom (Wm/<1) (excl spcakcis) (Approx)
170 mm x 363 mm x 364 mm
(ms/n x 14 vim x 143/1111)

Mass (m1, speakers) (Approx)
HCDVGPXEXIGPX77/GPX55/GPX33. 51 kg
(11 1a 8 oz)

siipp1ica accessories
Remote control (1)
R6 (Size AA) batteries (2)
FM lead/AM loop antenna (1)
Spacer (MHCVGPXXS only) (2)
Speaker pads (MHCVGPXSS nniy) (15)
Speaker pniis (LBTVGPXW/MHCVGPXW only) (a)

Design and spaciricaiinns are subjecI In change wiIIIuIn notice.

NOTES ON CHIP COMPONENT REPLACEMENT

Never reuse a disconnected chip component.
Notice that the minus side of a tantalum capacitor may be
damaged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

Keep the temperature of soldering iron around 270 °C during
repairing.

Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

Be careful not to apply force on the conductor when soldering
or unsoldering.

SAFETY CHECK-OUT

After correcting the original service problem, perform the
following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.

1.

A commercial leakage tester, such as the Simpson 229 or RCA
WT»540A. Follow the manufacturers instructions to use these
instruments.

A battery~operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter The limit" indication
is 0.75 V, so analog meters must have an accurate low-Voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 VAC range are suitable. (See
Fig. A)

To Exposed Metal
Parts on Set

AC
0. 15 uF / voltmeter

(0.75 V)

g 1.5)

_7_ Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

This appliance is classified as a CLASS 1
LASER product. this marking is located on
the rear exterior.

crass I LASER Pkonucr
LUOKAN 1 taszmmz

KLASS 1 usgmmm

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
