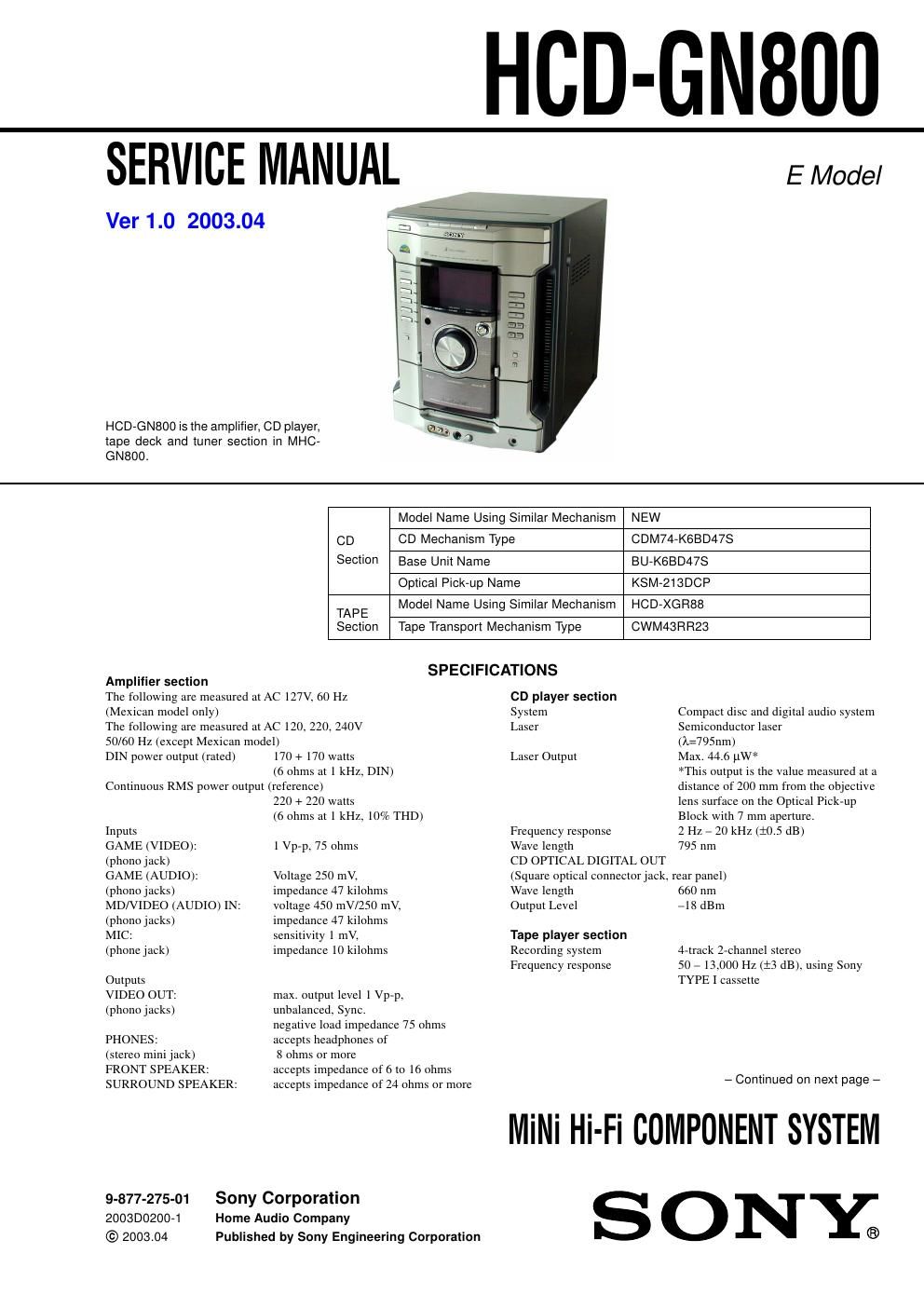

Page 1

HCD-GN800

SERVICE MANUAL EMode/

Ver 1.0 2003.04

HCD-GN800 is the amplifier, CD player,
tape deck and tuner section in MHC-
GN800.

Model Name Using Similar Mechanism NEW
CD CD Mechanism Type CDM74-KGBD47S
Section Base Unit Name BU-KSBD47S
Optical Pick-up Name KSM-213DCP
TAPE Model Name Using Similar Mechanism HCD-XGR88
Section Tape Transport Mechanism Type CWM43FlR23

_ _ . SPECIFICATIONS
ArnplIerr sectlon

The following are measured at AC 127V, 60 Hz CD player section
(Mexican model only) System Compact disc and digital audio system
The following are measured at AC 120, 220, 240V Laser Semiconductor laser
50/60 Hz (except Mexican model) (1:795nm)
DIN power output (rated) 170 + 170 watts Laser Output Max. 44.6 IIW"
(6 ohms at 1 kHz, DIN) *This output is the value measured at a
Continuous RMS power output (reference) distance of 200 mm from the objective
220 + 220 watts lens surface on the Optical Pick-up
(6 ohms at 1 kHz, 10% THD) Block with 7 mm aperture.
Inputs Frequency response 2 Hz - 20 kHz (£05 dB)
GAME (VIDEO): I Vp-p. 75 ohms Wave length 795 nm
(phono jack) CD OPTICAL DIGITAL OUT
GAME (AUDIO): Voltage 250 mV, (Square optical connectorjack, rear panel)
(phono jacks) impedance 47 kilohms Wave length 660 nm
MD/VIDEO (AUDIO) IN: voltage 450 mV/250 mV, Output Level -18 dBm
(phono jacks) impedance 47 kilohms
MIC: sensitivity 1 mV, Tape player section
(phonejack) impedance 10 kilohms Recording system 4-track 2-channel stereo
Frequency response 50 - 13,000 Hz (i3 dB), using Sony
Outputs TYPE I cassette
VIDEO OUT: max. output level 1 Vp-p.
(phono jacks) unbalanced, Sync.
negative load impedance 75 ohms
PHONES: accepts headphones of
(stereo minijack) 8 ohms or more
FRONT SPEAKER: accepts impedance of 6 to 16 ohms _
SURROUND SPEAKER: accepts impedance of 24 ohms or more _ ContInued on he) page _

MINI HI-FI COMPONENT SYSTEM
9-877-275-01 Sony Corporation
2003D0200-1 Home Audio Company
© 2003.04 Published by Sony Engineering Corporation ®

Page 2

HCD-GN800

Tuner section
FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 - 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz

AM tuner section
Tuning range
Latin Americanmodels: 530 - 1,710 kHz
(with the interval set at 10 kHz)
531 - 1,710 kHz
(with the interval set at 9 kHz)
Middle Eastern models: 531 - 1,602 kHz
(with the interval set at 9 kHz)
531 - 1,602 kHz
(with the interval set at 9 kHz)
530 - 1,710 kHz
(with the interval set at 10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz

Other models:

General

Power requirements
Mexicali models:
Argentina models:
Other models:

120V or 127V AC, 60 Hz

220 V AC, 50/60 Hz

120 V, 220 V or 230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector

Power consumption 250 watts

Dimensions (w/h/d) Approx. 280 x 360 x 386.5 mm

Mas : Approx. 13.6 kg

Design and specifications are subject to change without notice.

Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dame

aged by heat.

Flexible Circuit Board Repairing
- Keep the temperature of the soldering iron around 270 C dur-

ing repairing.

- Do not touch the soldering iron on the same conductor of the

circuit board (within 3 tithes).

- Be careful not to apply force on the conductor when soldering

or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.

This appliance is Classified as
cmcmmm PRonLCT a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
