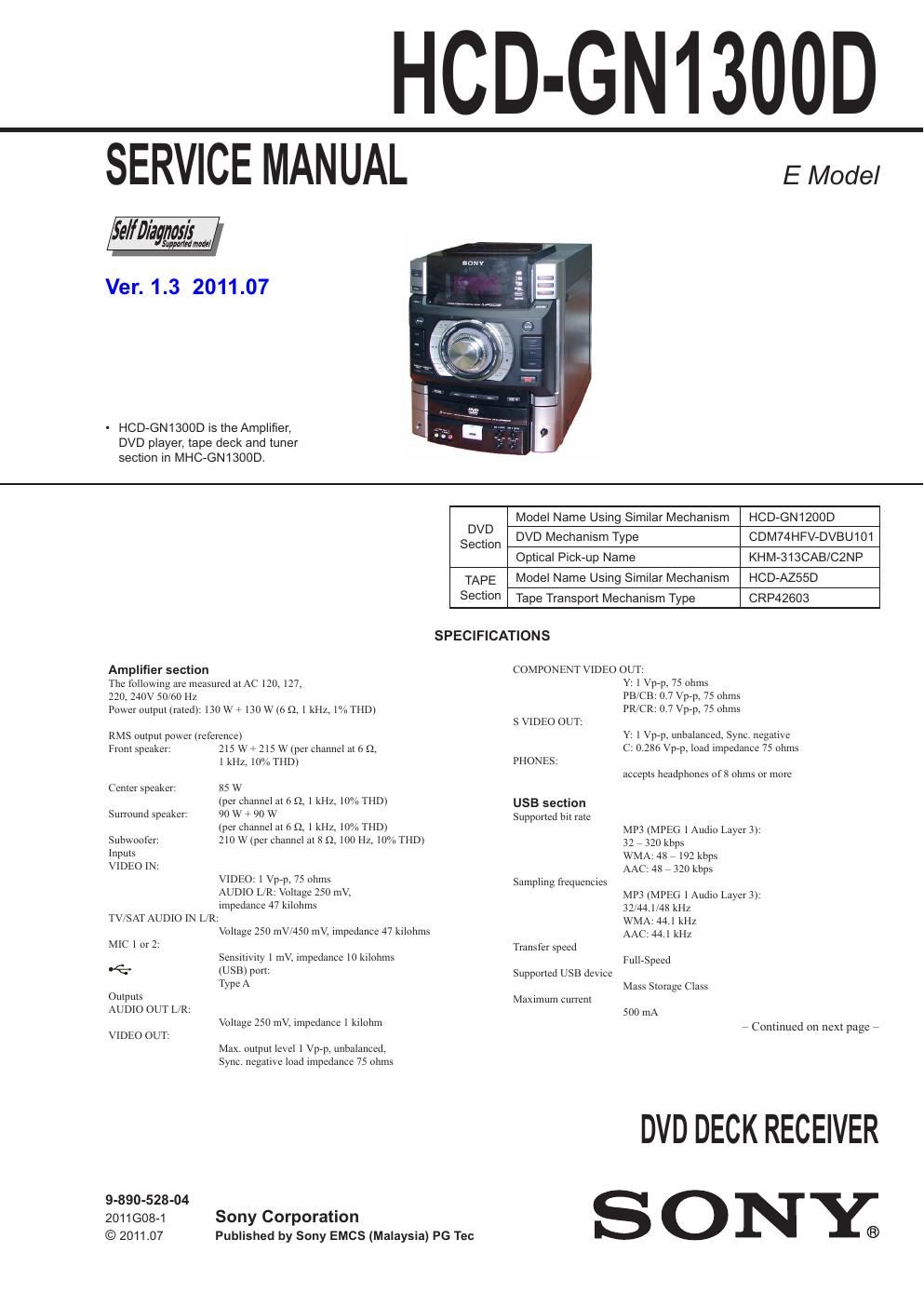

Sony hcd gn 1300d ver1 3

Page 2

HCD-GN1300D

Disc player section
System
Compact disc and dlgllal audio and Video system
Laser Diode Properties
Emission Duration; Continuous
Laser oiitput*: Less than 44.6 jiW
* This output is the value measurement
at a distance otzoo mm from the
objective lens surface on the Optical
lwkrup Block With 7 mm aperture.
Frequency response
DVD (PCM 48 kHz): 2 Hz 7 22 kHz (1] dB)
CD: 2 H27 20 kHz (t0.5 dB)
video color system torinat
NTSC and PAL

Tape deck section
Recot'dlng system
4etrack Zechannel stereo
Frequency response
50 713000 Hz (:3 dB).
5ng Sony TYPE l tape

Tuner section
FM stereo, FM/AM superheterodyne iiiner

FM tuner section
Tuning range

87.5 7108.0 MHz (50 kHz step)
Antenna

FM lead antenna
Antenna terminals

75 ohms unbalanced
lntermedlate frequency

10.7 MHz

AM tuner section
Tuning range
Saudi Arabian model:
531 , 1602 kHz (With the interval set at 9 kHz)
Other models:
531 , 1602 kHz (with the interval set at 9 kHz)
530 , 1610 kHz (with the interval set at 10 kHz)
Antenna
AM loop antenna
Antenna terminals
External antenna terminal
lntennedlate frequency
450 kHz

General

Power requirements
Saudi Arabian model: 120 e 127 V.
220 V or 230 , 240 V AC, 50/60 Hz.
adjustable wuh voltage selector
Other models: 120 V, 220 V or
230 , 240 V AC, 5060 Hz, adjustable
with voltage selector

Power consumption
365 w

Dimensions (W/h/d) (Approx)
295 x 380 x 457 mm

Mass (Approx)
17.5 kg

Design and specifications are subject to change Wflllollt notice.

Self-diagnosis Function

(When letters/numbers appear in the
display)

When the self-diagnosis function is activated to
prevent the system from malfunctioning, a
5-character service number (e.g. C 13 50) with a
combination of a letter and 4 digits appears on
the TV screen and the front panel display. In this
case, check the following table.

F st 3 Cause and corrective act n
characters of

the service

number

C 13 This disc is dirty.

Clean the disc with a soft cloth

C 31 The disc is not inserted correctly.
Restart the system, then re-insert
the disc correctly.

E XX To prevent a malfunction, the system
(XX is a has performed the self-diagnosis
number) function.

Contact your nearest Sony dealer or
local authorized Sony service
facility and give the Secharacter
service number.

Example: E 61 10

When displaying the version number on the
TV screen

When you turn on the system, the version
number [VER.X.XX] (X is a number) may
appear on the TV screen. Although thit is not a
malfunction and for Sony service use only,
normal system operation will not be possible.
Turn off the system, and then turn on the system
again to operate.
