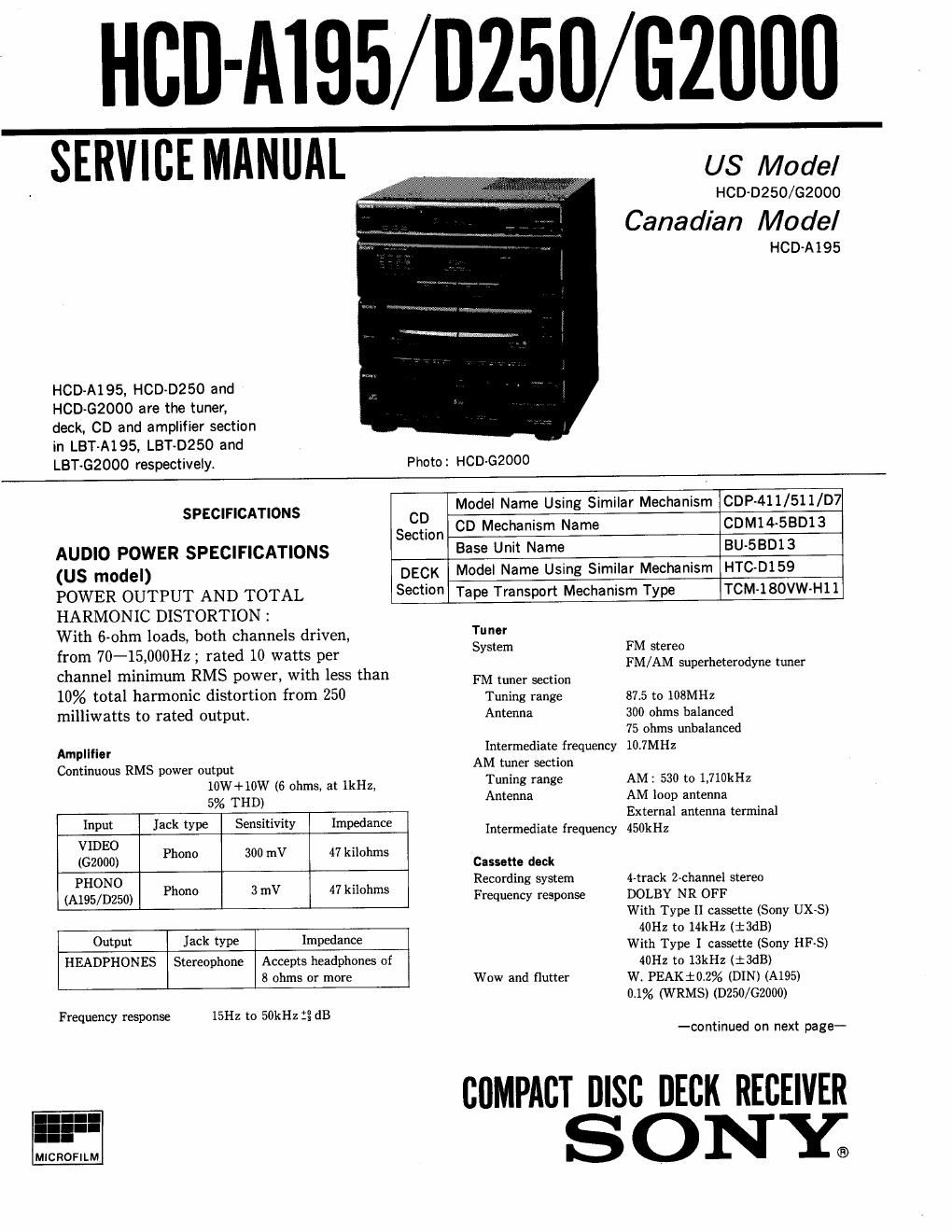

Page 1

HCD-A195/025II/GZUIIII

SERVICE MANUAL

HCD-A195, HCD-D250 and
HOD-62000 are the tuner,
deck, CD and amplifier section
in LBT-A195, LET-0250 and
LBT-GZOOO respectively.

US Model

HCD-D250/GZOOO

Canadian Model

HCD-A195

Photo: HCD-GZOOO

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS
(US model)

POWER OUTPUT AND TOTAL

HARMONIC DISTORTION :

With 6ohm loads, both channels driven,
from 70-15,000Hz ; rated 10 watts per
channel minimum RMS power, with less than
10% total harmonic distortion from 250
milliwatts to rated output.

Amplifier
Continuous RMS power output
10W+10W (6 ohms, at lkHz,

CD Mode! Name Using Similar Mechanism CDP-411/511/D7
Section CD Mechanism Name CDM14-58013
Base Unit Name BU-SBD13
DECK Model Name Using Similar Mechanism HTC-D159
Section Tape Transport Mechanism Type TCM-lSOVW-Hll
Tuner
System FM stereo

FM/AM superheterodyne tuner
FM tuner section
Tuning range
Antenna

875 to 108MHz
300 ohms baIanced
75 ohms unbalanced
Intermediate frequency 10.7MHz
AM tuner section
Tuning range
Antenna

AM: 530 to 1,710k1-Iz
AM loop antenna

External antenna terminal

Intermediate frequency 450kHz

Cassette deck

4-track 2-channe1 stereo
DOLBY NR OFF

Recording system
Frequency response

With Type II cassette (Sony UX-S)

40Hz to 14kHz (iSdB)
With Type I cassette (Sony HES)

5% THD)

Input Jack type Sensitivity Impedance
VIDEO .
((32000) Phone 300 mV 47 kiiohms
PHONO -

( A195 /D250) Phone 3 mV 47 kIIOth
Output Jack type Impedance
HEADPHONES Stereophone Accepts headphones of

8 ohms or more

40Hz to 13kHz (tSdB)

Wow and flutter W. PEAKiO.2% (DIN) (A195)

Frequency response 15Hz to 50kHz :3 dB

II
MmROHLM

0.1% (WRMS) (DZSO/GZOOO)

-continued on next page-

COMPACT nisc DECK RECEIVER
SONY;

Page 2

Compact disc player

Laser Semiconductor laser
Wavelength 780-790nm
Frequency response 2H2 to ZOkHzildB
Signal-to-noise ratio More than 93dB
Dynamic range More than 90dB

Harmonic distortion
Channel separation

Less than 0.01% (1kHz)
More than 90dB (IkHz)

General

Power requirements 120V AC, 60Hz

Power consumption 45W

Mass Approx. 9.9kg (20 lb 14 02)

Dimensions Approx. 355 X 395 X 405mm
(14 X 15W. X 16 inches)

(w/h/d, including projections)

Suppllod accessories

Remote commander RM-SZZI (1)
Batteries Sony SUM-3 (NS) (2)
FM wire antenna [1)
AM loop antenna (1)

Design and specifications are subject to change without notice.

Dolby noise reduction manulactured under license from Dolby Labora-
tories Licensing Corporation.
"DOLBY" and the doubleD symbol DU are trademarks of Dolby Labora-
tories Licensing Corporation.

SAFETY-RELATED COMPONENT WARNING"

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST
ARE CRITICAL T0 SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN
THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

SAFETY CHECK-OUT (US Model)

After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:

Check the antenna terminals, metal trim, metallized
knobs, screws, and all other exposed metal parts for
AC leakage. Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5 mA (500 microampers). Leakage
current can be measured by any one of three
methods.

I. A commercial leakage tester, such as the
Simpson 229 or RCA WT-S40A. Follow the
manufacturers instructions to use these instru-
ments.

N

A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.

3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The limit indication is 0.75 V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63'l'rd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have 3 2V AC range are
suitable. (See Fig. A)

To Exposed Metal
Part: on Set

A C
/ voltmeter
(0.75 V]

0.!5uF Q15:
L. I

1? Earth Ground

Fry. A. Using an AC voltmeter to check AC leakage.

ATTENTION AU coMPosmT AVANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE SUR LES DIA-

GRAMMES SCHEMATIQUES El' LA LISTE DES Pl css sour cRI-
TIQUES POUR LA sEcumTE o: roucrlouumem. NE REMPLACER
css COMPOSANTS QUE PAR oss PIECES sour pour LES NUMEROS
sour oounEs DANS c: MANUEL ou DANS LES SUPPLEMENTS
PuaLlés PAR sour.
