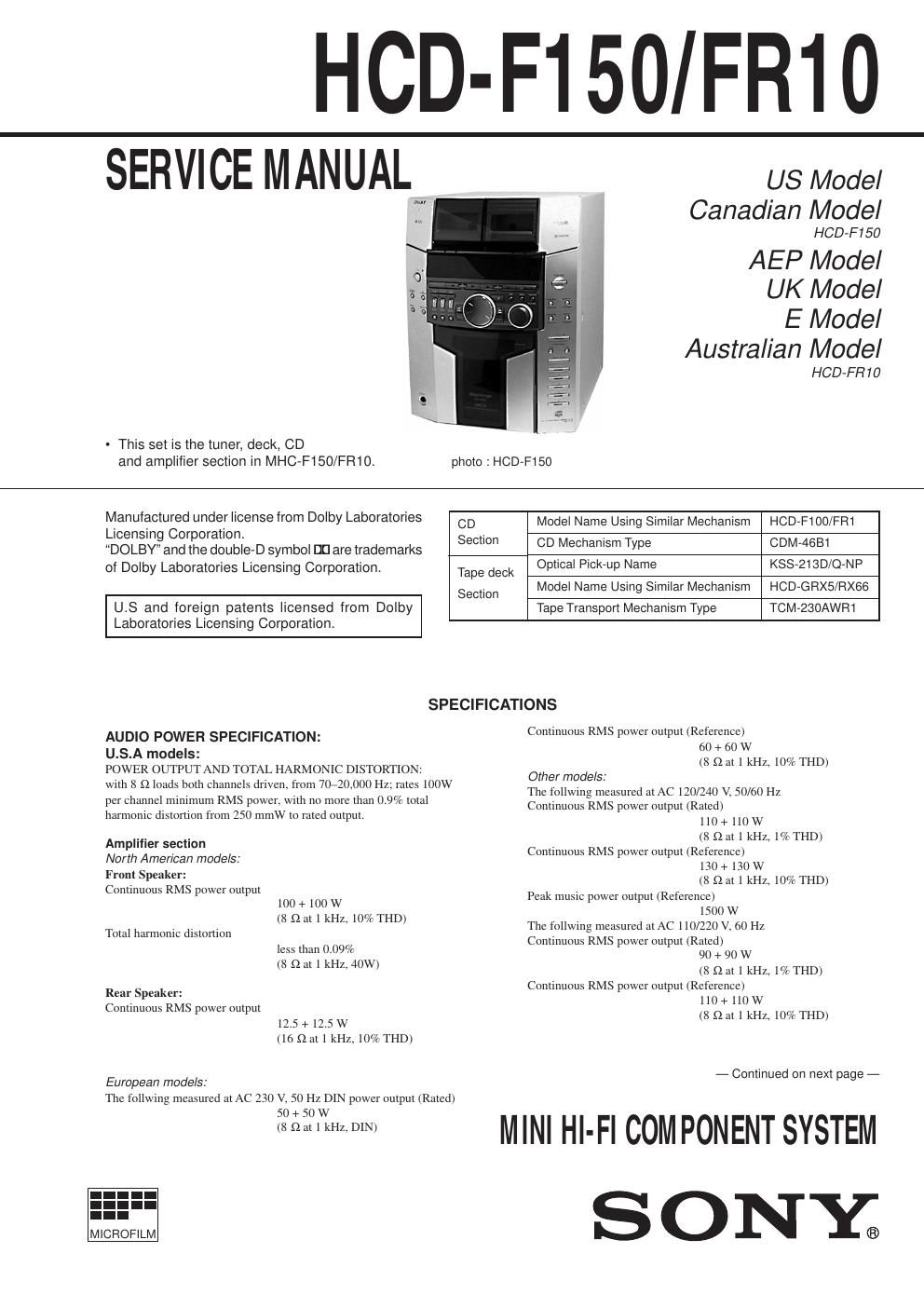

Ñ 2 Ñ
InputsVIDEO/MD IN: (phono jacks) voltage 250 mV / 450 mV, impedance
47 kW
MIX MIC (except for Australian and European models): (phone jack)
sensitivity 1 mV, impedance
10 kW
OutputsVIDEO/MD OUT (phono jacks): voltage 250 mV impedance 1 kW
PHONES (stereo phone jack): accepts headphones of 8 W or more
SPEAKER:
MHC-F150: accepts impedance of 8 to 16 W
MHC-FR10 (European models): accepts impedance of 8 to 16 W
MHC-FR10 (Other models): accepts impedance of 8 to 16 W
REAR SPEAKER: accepts impedance of 16 W
SUPER WOOFER: Voltage 1 V, impedance 1 kW
CD player section
System Compact disc and digital audio system
Laser Semiconductor laser (l = 780 nm)
Emission duration: continuous
Laser output Max. 44.6 mW*
*This output is the value measured at a
distance of 200 mm from the objective
lens surface on the Optical Pick-up
Block with 7 mm aperture.
Frequency response 2 Hz Ð 20 kHz (±0.5 dB)
Wavelength 780 Ð 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength: 600 nm
Output level: Ð18 dBm
Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 Ð 13,000 Hz (±3 dB), using Sony
(DOLBY NR OFF) TYPE I cassette
40 Ð 14,000 Hz (±3 dB), using Sony
TYPE II cassette
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range2 band models: 87.5 Ð 108.0 MHz
3 band (FM-MW-SW) models: 87.5 Ð 108.0 MHz
3 band (FM-MW-LW) models: 87.5 Ð 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 W unbalanced
Intermediate frequency 10.7 MHzAM tuner section
Tuning range2 Band type:
North American models: 530 Ð 1,710 kHz
(with the interval set at 10 kHz)
531 Ð 1,710 kHz
(with the interval set at 9 kHz)
Other models: 531 Ð 1,602 kHz
(with the interval set at 9 kHz)
530 Ð 1,710 kHz
(with the interval set at 10 kHz)
3 Band type:
European models:
MW: 531 Ð 1,602 kHz
(with the interval set at 9 kHz)
LW: 153 Ð 279 kHz
(with the interval set at 3 kHz)
Other models:
MW: 531 Ð 1,602 kHz
(with the interval set at 9 kHz)
530 Ð 1,710 kHz
(with the interval set at 10 kHz)
SW: 5.95 Ð 17.90 MHz
(with the interval set at 5 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminals
Intermediate frequency 450 kHz
General
Power consumptionMHC-F150: 200 W
MHC-FR10:
European models: 150 W
Other models: 250 W
Dimensions (w/h/d) Approx. 280 ´ 375 ´ 455 mm
Mass
MHC-F150: Approx. 12 kg (26 lbs. 7 oz.)
MHC-FR10:
European models: Approx. 10 kg (22 lbs. 1 oz.)
Other models: Approx. 12 kg (26 lbs. 7 oz.)
Supplied accessories AM loop antenna (1)
Remote
RM-SF150 (1)
Batteries (2)
FM lead antenna (1)
Speaker cords (4)
Design and specifications are subject to change without notice.
Page 2
Ñ 3 Ñ
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH
MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturersÕ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The ÒlimitÓ indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
To Exposed Metal
Parts on Set
0.15
µF
1.5 k ½
AC
Voltmeter
(0.75 V)
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
The following caution label is located inside the unit.
ATTENTION AU COMPOSANT AYANT RAPPORT
Ë LA SƒCURITƒ!
LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES
DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT
CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY
DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU
DANS LES SUPPƒMENTS PUBLIƒS PAR SONY.
