2

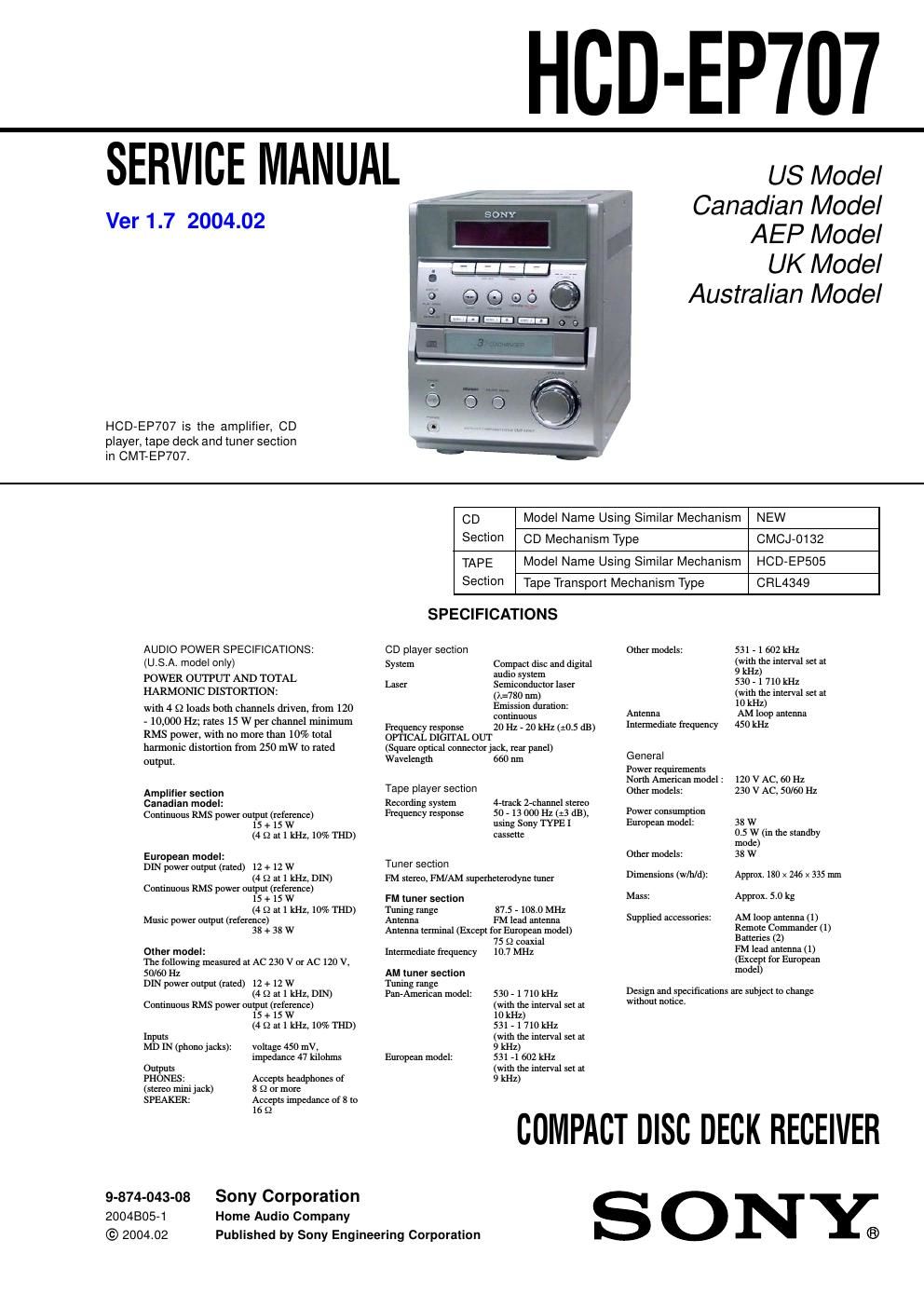

HCD-EP707
Notes on chip component replacement
-Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
-K eep the temperature of the soldering iron around 270 ËšC dur-
ing repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.
This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the bottom. CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k -„¦ 0.15 µF AC
voltmete r (0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
A
TTENTION AU COMPOSANT AYANT RAPPORT
Ã- LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
D ANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
r eturn to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indica-
tion is 0.75 V, so analog meters must have an accurate low-
v oltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2 V AC range are suit-
ab le. (See Fig. A)
Page 2
3
HCD-EP707
TABLE OF CONTENTS
1. SERVICING NOTES
................................................ 3
2. GENERAL ................................................................... 5
3. DISASSEMBLY
3-1. Disassembly Flow........................................................... 6
3-2. Side (P anel)..................................................................... 7
3-3. Top Ca binet Section ........................................................ 7
3-4. Tape Mechanism Deck (CRL4349)................................ 8
3-5. Front P anel Section......................................................... 8
3-6. MAIN Board ................................................................... 9
3-7. CD Mechanism Deck (CMCJ-0132).............................. 9
3-8. REGULATOR Board...................................................... 10
3-9. POWER AMP Board....................................................... 10
3-10. Cove r........................................................................\
....... 11
3-11. Draw er ........................................................................\
..... 12
3-12. Belt (Gray/Black) ............................................................ 13
3-13. Optical Block .................................................................. 13
4. ELECTRICAL ADJUSTMENTS ......................... 14
5. DIAGRAMS
5-1. Block Diagram -“ TUNER Section -“............................. 16
5-2. Block Diagram -“ TAPE DECK Section -“..................... 17
5-3. Block Diagram -“ MAIN Section -“................................ 18
5-4. Block Diagram -“ DISPLAY/POWER SUPPL Y Section -“...................... 19
5-5. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 20
5-6. Printed Wiring Boards -“ MAIN Section -“.................... 21
5-7. Schematic Diagram -“ MAIN Section (1/2) -“................ 22
5-8. Schematic Diagram -“ MAIN Section (2/2) -“................ 23
5-9. Printed Wiring Boards -“ POWER AMP Section -“ ...... 24
5-10. Schematic Diagram -“ POWER AMP Section -“............ 25
5-11. Printed Wiring Boards -“ DISPLAY Section -“.............. 26
5-12. Schematic Diagram -“ DISPLAY Section -“................... 27
5-13. Printed Wiring Boards -“ REGULATOR Section -“....... 28
5-14. Schematic Diagram -“ REGULATOR Section -“........... 29
5-15. IC Pin Function Description........................................... 31
6. EXPLODED VIEWS
6-1. Panel Section................................................................... 33
6-2. Front P anel Section......................................................... 34
6-3. Top Ca binet Section ........................................................ 35
6-4. Chassis Section ............................................................... 36
6-5. CD Section ...................................................................... 37
7. ELECTRICAL PARTS LIST ............................... 38
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
T he laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
T he flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emis-
sion, observe from more than 30 cm away from the objective lens.
- MODEL IDENTIFICATION
-“ Rear View -“
Po wer Voltage
Indication
AC : 120 V 60 Hz 38 W
AC: 230 V - 50/60 Hz 38 W
Model
US and Canadian
models
Other models
Power Voltage Indication
SECTION 1
SERVICING NOTES V er 1.7
