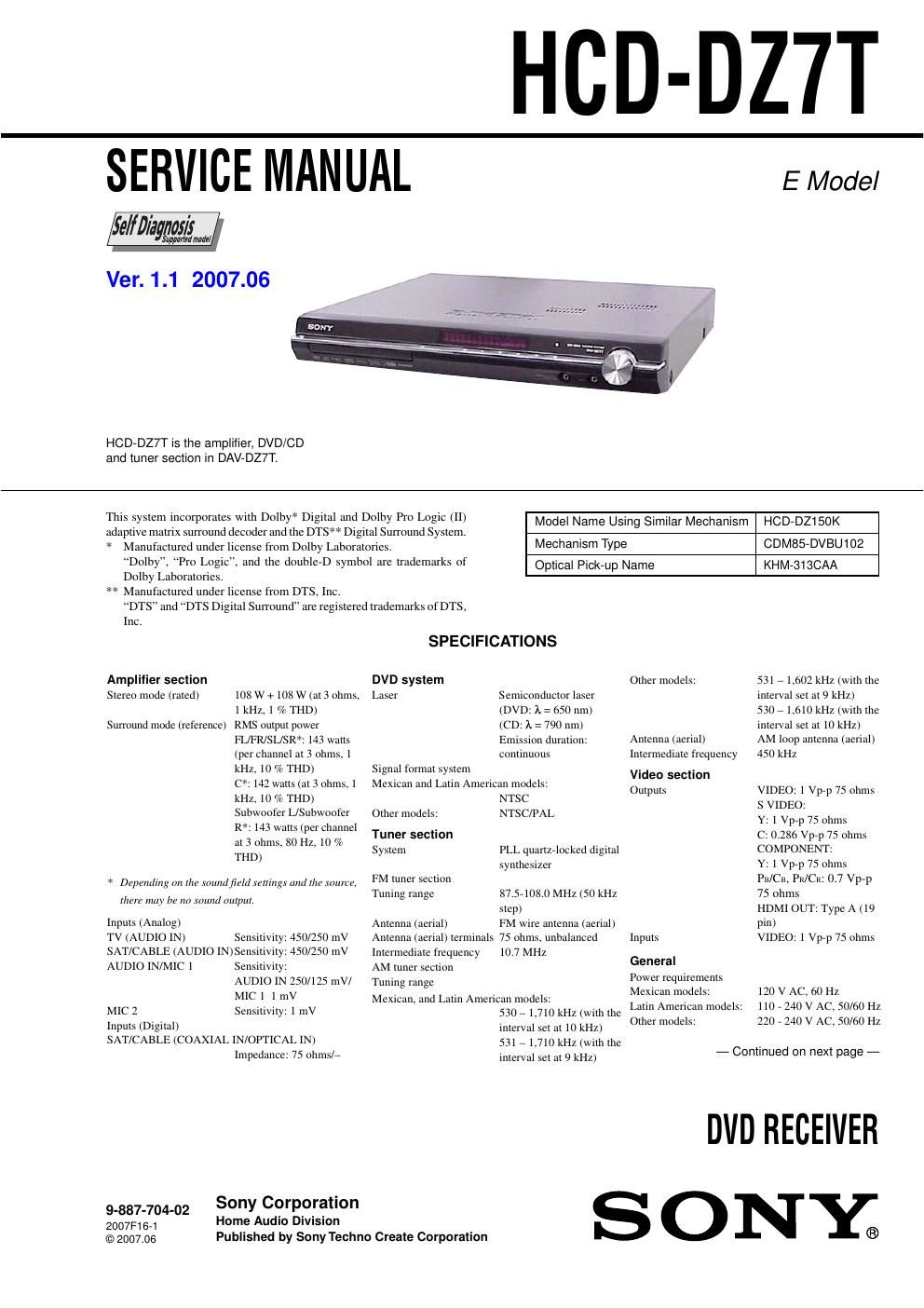

HCD-DZ7T

SERVICE MANUAL

Ver. 1.1 2007.06

HCD-DZ7T is the amplifier, DVD/CD
and tuner section in DAV-DZ7T.

E Model

This system incorporates with Dolby" Digital and Dolby Pro Logic (II) Model Name Using Similar Mechanism HCD-DZ150K

adaptive matrix surround decoder and the DTS** Digital Surround System.

* Manufactured under license from Dolby Laboratories. Mechanism Type CDMBSDVBUIOZ
Dolby, Pro Logic, and the double-D symbol are trademarks of Optical Pick-up Name KHM-313CAA

Dolby Laboratories.
** Manufactured under license from DTS. Inc.

DTS and "DTS Digital Surround" are registered trademarks of DTS,

Inc.

Amplifier section
Stereo mode (rated) 108 W +108 W (at 3 ohms,
l Isl-IL, l 70 THD)

RMS output power
FL/FR/SIJSR": 143 watts
(per channel at 3 ohms. 1
kHL, 10 % THD)

C: 142 watts (at 3 ohms. 1
kHz, 10 70 THD)
Subwool'er L/Subwtiolei'
R": 143 watts (pei channel
at 3 ohms, 80 Hz. 10 %
THD)

Surround mode (reference)

* DApAHt/lng mi the sound/22M awnings (1an [lie rot/rue,

there may be up sound output.

Inputs (Analog)

TV (AUDIO IN) Sensitivity: 450/250 niV

SAT/CABLE (AUDIO IN) Sensitivity: 450/250 niV

AUDIO IN/MIC 1 Sensitivity:

AUDIO IN 250/125 mV/

MIC I 1 mV

MIC 2 Sensitivity: 1 mV

Iiipuls (Digital)

SAT/CABLE (COAXIAL IN/OPTICAL IN)
Impedance: 75 ohms/7

Sony Corporation

9-887-704-02 Home Audio Division

2007151671
© 2007.06

SPECIFICATIONS

DVD system

Laser

Signal format system

Semiconductor laser
(DVD: A : 650 nm)
(CD: A : 790 um)
Emission duration:
continuous

Mexican and Latin American models:

Other models:

Tuner section
System

FM tunei section
Tuning range

Antenna (aerial)

N TSC
NTS CfPAL

PLL quartzilocked digital
synthesizer

87.571080 MHz (50 kHL

step)
FM wtre antenna (aerial)

Antenna (aerial) terminals 75 ohms, unbalanced

Intermediate frequency
AM tuiier section
Tuning range

10.7 MHz

Mexican. and Latin American models:

Published by Sony Techno Create Corporation

530 r 1,710 klIl (with the
interval set at 10 kHz)
531 r 1,710 kI-IL (with the
interval set (119 kHz)

Other models:

Antenna (aerial)
lnteimediaic frequency

Video section
Outputs

Inputs

General
Power requirements

Mexican mod s:
Latin American models:
Other models:

53171,602 kHL (with the
interval set at 9 MIL)
53071,610 kHz (with the
interval set at 10 kHz)
AM loop antenna (aerial)
450 kHz

VIDEO: 1 Vprp 75 ohms
S VIDEO:

Y: 1 Vprp 75 ohms

C: 0.286 Vprp 75 ohms
COMPONENT:

Y: 1 Vprp 75 ohms
Pia/Ca. PR/CRI 0.7 Vp-p
75 ohms

HDMI OUT: Type A (19
Pin)

VIDEO: 1 Vprp 75 ohms

120 V AC, 60 Hz
110 7 240 V AC. 50/60 Hz
220 7 240 V AC. 50/60 Hz

- Continued on next page -

DVD RECEIVER
S 0 NY;

Page 2

HCD-DZ7T
Ver. 1.1

Power consumption
Mexican models: On: 180 W

Standby: 03 W (at the
Power Saving mode)

On: 190 W

Standby: 0.3 W (at the
Power Snvmg mode)

On: 180 W

Standby: 0.3 W (at the
Power Snvmg mode)

430 X 63X 380 mm (w/h/d)
incl. projecting parts
Mass (approx.) 42 kg

Latin American models:
Other models:

Dimensions (approx.)

Design and specifications are subject to change
without notice,

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

Special Component Notice

The components identified by mark [El contain confidential
information.

Strictly follow the instructions whenever the components are repaired
and/or replaced.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead-

free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)

LEAD FREE MARK
Unleaded solder has the following characteristics.

0 Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solderjoint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
0 Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
0 Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.

This appliance is classified as
a CLASS I LASER product.
This marking is located on
the rear exterior.

CLASS l LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPFARAT

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.

Notes on chip component replacement
0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing
- Keep the temperature of the soldering iron around 270 °C
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
0 Be careful not to apply force on the conductor when soldering
or unsoldering.

MODEL IDENTIFICATION
- Rear Panel -

:l
Parts No.
Model Part No.
SP model 3-197-464-5D
E32 model 3-197-464-6D
MX model 3-197-464-7D
TH model 3-215-699-5D

- Abbreviation
E32 : 110 - 240V AC area in E model
MX : Mexican model
SP : Singapore model
TH : Thai model
