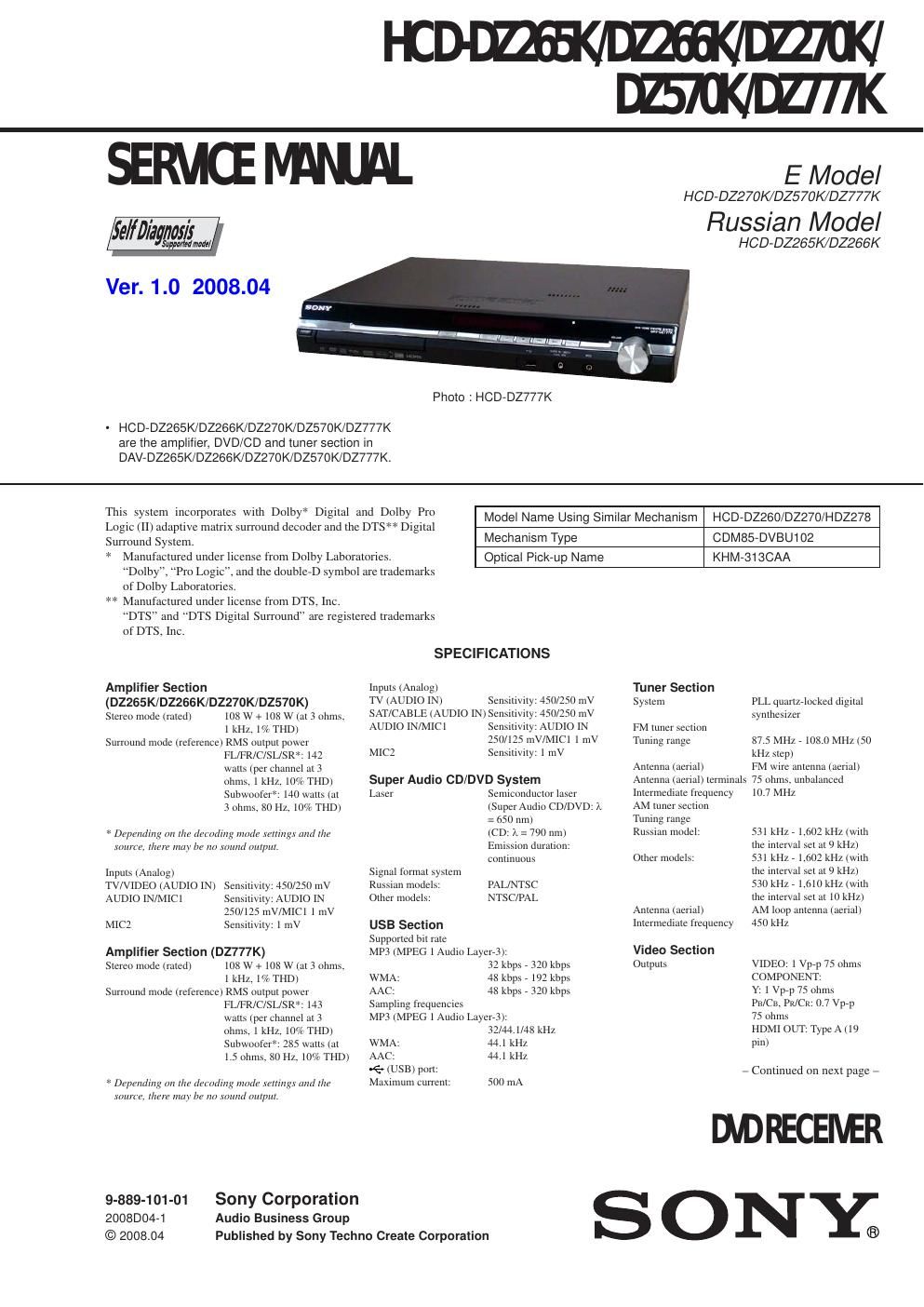

Sony hcd dz 266 k service manual

Page 2

HCD-D2265K/D2266K/D2270K/DZ570K/DZ777K

General

Power requirements

Saudi Arabia models: 127 V . 240 V AC, 50/60 Hz
Other models: 220 V . 240 V AC. 50/60 Hz

Power consumption
HCDrDZZfiSK/DZZéfiK. On: 155 W
Standby: 0.3 W (at the
Power Saving mode)
HCDrDZ270K: On: 160W
Standby: 0.3 W (at the
Power Saving mode)
HCDrDZ570K/DZ777K: On: I70W
Standby: 0.3 W (at the
Power Saving mode)
Output Voltage (DIGITAL MEDIA PORT)
(HCDVDZS70K/DZ777K only)
DC 5 V
Output current (DIGITAL MEDIA PORT)
(HCDrDZS70K/DZ777K only)

700 mA
Dnnensrons (approx. ; 430 mm x 66 mm x 385 nnn

(w/h/rl) incl. projecting parts
Mass (approx. ) 4.2 kg

Design and specifications are subject to change
WIIIIOIII notice,

MODEL IDENTIFICATION
- Back Panel -

Parts No.
Model Part No.
DZZ7OK: SP model 3-273-759-3D
DZZ7OK: TH model 3-273-759-4D
D2265K: RU model 3-273-759-6U
DZZ70K: EA model 3-273-760-7D
DZS70K: SP model 3-273-761-2D
DZS70K: TH model 3-273-761-8D
DZS70K: EA model 3-273-762-4D
DZ777K: SP model 3-273-763-0I]
DZ777K: TH model 3-273-763-41]
DZZGGK: RU model 3-273-763-6I]
DZZ70K: PH model 3-273-763-9I]
D2570K: PH model 3-273-764-8I]

Abbreviation

EA : Saudi Arabia model
PH : Philippines model
SP : Singapore model
RU : Russian model

TH : Thai model

Special Component Notice

The components identified by mark [El contain confidential infor-
mation.

Strictly follow the instructions whenever the components are re-
paired and/or replaced.

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARKAOR DOTTED LINE
WITH MARKAON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
