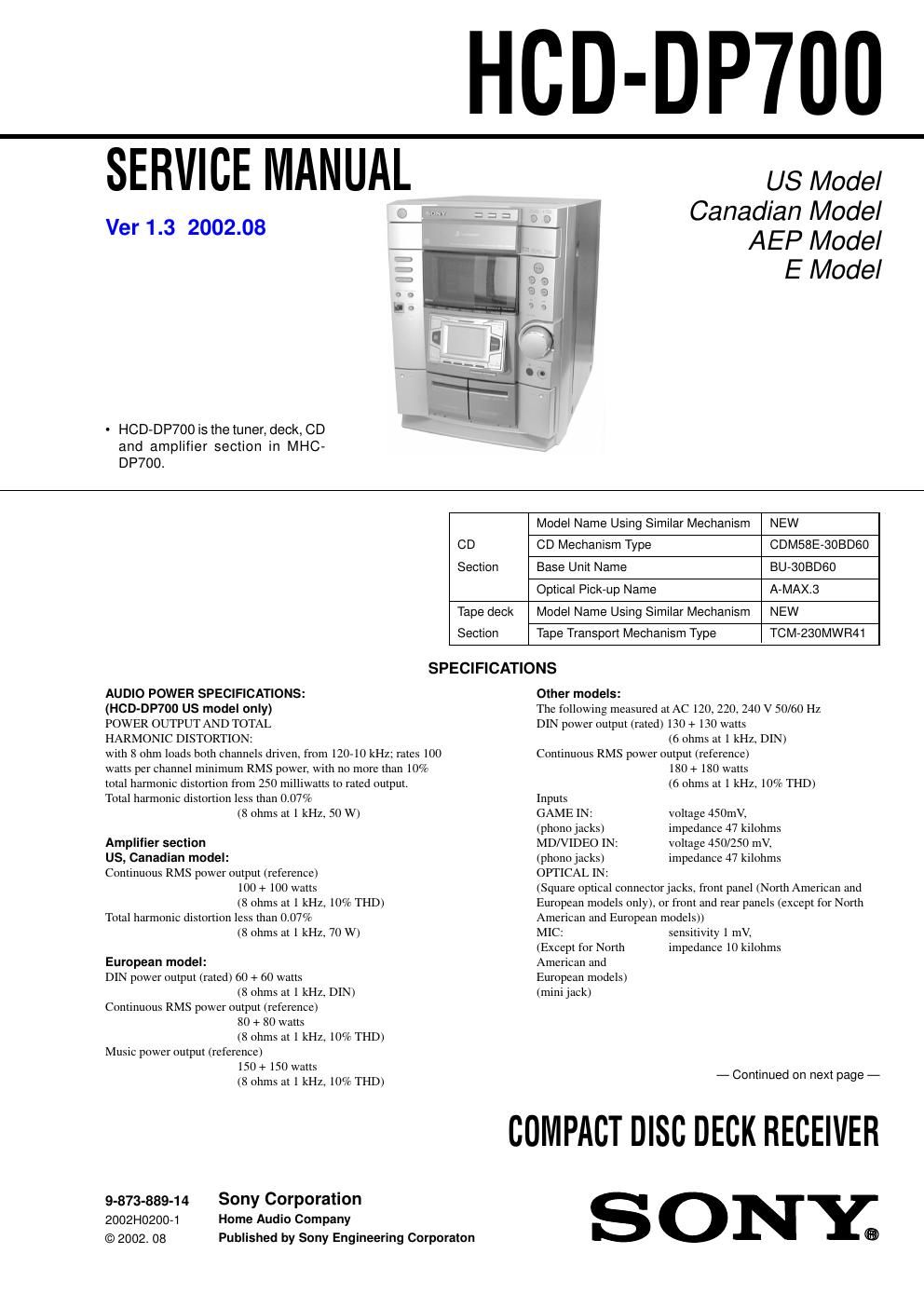

SAFETY CHECK-OUT
(US model only)
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
Earth GroundAC
voltmeter
(0.75V) 1.5k-ฆ 0.15ยตF
Fig. A. Using an AC voltmeter to check AC leakage.
To Exposed Metal
Parts on Set
Outputs
MD/VIDEO OUT: voltage 250 mV,
(phono jacks) impedance 1 kilohms
PHONES: accepts headphones of
(stereo mini jack) 8 ohms or more
SPEAKER
(Central and South
American models): accepts impedance of 6 to 16 ohms
(Other models): accepts impedance of 8 to 16 ohms
SUB WOOFER: voltage 1 V,
impedance 1 kilohms
CD player section
System Compact disc and digital audio system
Laser Semiconductor laser (ฮป=780 nm)
Frequency response 2 Hz - 20 kHz (ยฑ0.5 dB)
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
DIGITAL OUT OPTICAL
(Square optical connector jack, rear panel)
Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 - 13,000 Hz (ยฑ3 dB), using Sony TYPE I
(DOLBY NR OFF) cassette
40 - 14,000 Hz (ยฑ3 dB), using Sony TYPE II
cassette
Wow and flutter ยฑ0.15% W.Peak (IEC)
0.1% W.RMS (NAB)
ยฑ0.2% W.Peak (DIN)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
North American model: 530 - 1,710 kHz
(with the interval set at 10 kHz)
531 - 1,710 kHz
(with the interval set at 9 kHz)
European and Middle Eastern models:
531 - 1,602 kHz
(with the interval set at 9 kHz)
Other models: 531 - 1,602 kHz
(with the interval set at 9 kHz)
530 - 1,710 kHz
(with the interval set at 10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
North American model: 120 V AC, 60 Hz
European model: 230 V AC, 50/60 Hz
Mexican model: 120 V AC, 60 Hz
Other models: 120 V, 220 V or 230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector
Power consumption
US model: 170 watts
Canadian model: 170 wattsEuropean model: 180 watts
0.5 watts (during Power Saving Mode)
Other models: 150 watts
Dimensions (w/h/d) Approx. 280 x 360 x 365 mm
Mass
North American and European models:
Approx. 10.5 kg
Other models: Approx. 12.0 kg
Design and specifications are subject to change without notice.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT
ร- LA SรCURITร!
LES COMPOSANTS IDENTIFรS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHรMATIQUES ET LA LISTE DES PIรCES SONT
CRITIQUES POUR LA SรCURITร DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIรSES SONY
DONT LES NUMรROS SONT DONNรS DANS CE MANUEL OU
DANS LES SUPPรMENTS PUBLIรS PAR SONY.
Page 2
3
This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.
Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
-Keep the temperature of soldering iron around 270หC
during repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
TABLE OF CONTENTS
MODEL IDENTIFICATION
- BACK PANEL -
MODEL
US model
CND model
AEP model
MX model
E51 model
PARTS No.
4-231-829-0s
4-231-829-1s
4-231-829-2s
4-231-829-5s
4-231-829-6s
-Abbreviation
CND : Canadian model
MX : Mexican model
E51 : Chiri and Peru model
PARTS No.
1. GENERAL ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
2. DISASSEMBY ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6
3. TEST MODE ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท13
4. MECHANICAL ADJUSTMENTS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท17
5. ELECTRICAL ADJUSTMENTS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท17
6. DIAGRAMS 6-1. Circuit Board Locationยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท23
6-2. Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท24
6-3. Printed Wiring Board BD Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท26
6-4. Schematic Diagram BD Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท27
6-5. Printed Wiring Board Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท28
6-6. Schematic Diagram Main Section (1/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท296-7. Schematic Diagram Main Section (2/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท30
6-8. Schematic Diagram Main Section (3/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท31
6-9. Printed Wiring Board DSP Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท32
6-10. Schematic Diagram DSP Section (1/2)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท33
6-11. Schematic Diagram DSP Section (2/2)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท34
6-12. Printed Wiring Board OPT Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท35
6-13. Schematic Diagram OPT Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท35
6-14. Printed Wiring Board Front Amp Section (AEP/US/
CND model)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท36
6-15. Schematic Diagram Front Amp Section (AEP/US/
CND model)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท37
6-16. Printed Wiring Board Front Amp Section (E51/MX
model)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท38
6-17. Schematic Diagram Front Amp Section (E51/MX
model)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท39
6-18. Schematic Diagram Surround Amp Sectionยทยทยทยทยทยทยทยทยทยทยท40
6-19. Printed Wiring Board Surround Amp Sectionยทยทยทยทยทยทยทยท40
6-20. Printed Wiring Board Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท41
6-21. Schematic Diagram Panel Section (1/2)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท42
6-22. Schematic Diagram Panel Section (2/2)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท43
6-23. Printed Wiring Board Leaf SW Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท44
6-24. Schematic Diagram Leaf SW Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท45
6-25. Printed Wiring Board Driver Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท46
6-26. Schematic Diagram Driver Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท47
6-27. Printed Wiring Board Trans Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท48
6-28. Schematic Diagram Trans Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท49
6-29. IC Pin Function Descriptionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท50
6-30. IC Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท56
7. EXPLODED VIEWS 7-1. Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท60
7-2. Front Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท61
7-3. Chassis Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท62
7-4. Tape Mechanism Deck Section-1 (TCM-230MWR41) 63
7-5. Tape Mechanism Deck Section-2 (TCM-230AWR41) 64
7-6. CD Mechanism Deck Section (CDM58E-30BD60)ยทยทยทยท65
7-7. Base Unit Section (BU-30BD60)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท66
8. ELECTRICAL PARTS LIST ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท67
