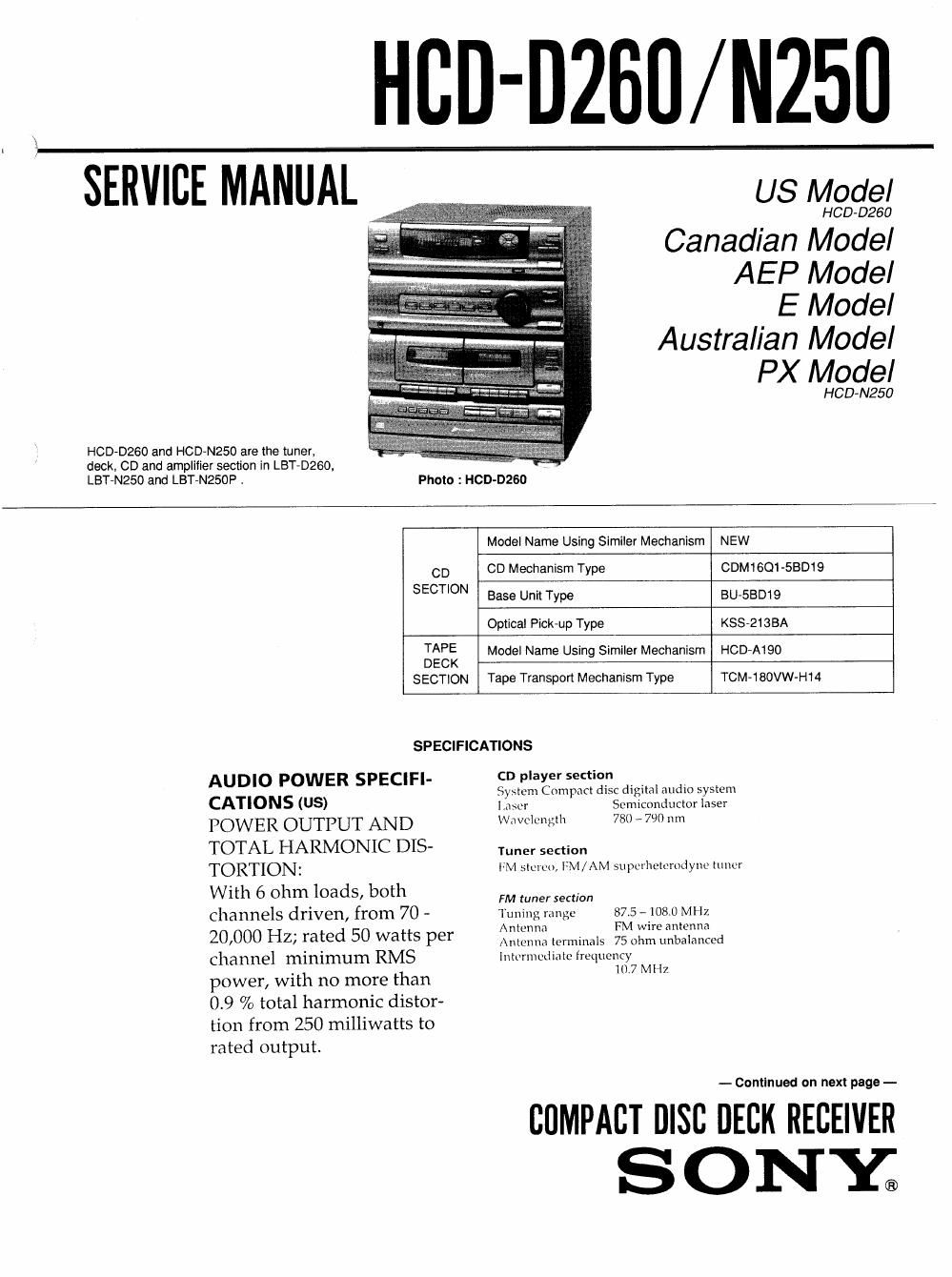

Page 1
HCD-DZBU/ N250
SERVICE MANUAL
HOD-D260 and HCD-N250 are the tuner,
deck, CD and amplifier section in LBT-D260,
LBT-N250 and LBT-N250P .
US Model
HOD-D260
Canadian Model
AEP Model
E Model
Australian Model
PX Model
HCD-N250
Phom : HOD-D260
Model Name Using Similer Mechanism NEW
CD CD Mechanism Type ODM1601-SBD19
SECT'ON Base Unit Type Bu-5BD19
Optical Pick-up Type KSS»2138A
322': Model Name Using Similer Mechanism HCD-A190
SECTION Tape Transport Mechanism Type TCM»180VW-H14
SPECIFICATIONS
AUDIO POWER SPECIFI- ED f'aye' sew?" _ . _
CATIONS (US) ill? mm diffil;l3li§i§fili§"
POWER OUTPUT AND Wavelength 780 r790 nm
TOTAL HARMONIC DIS- Tune, section
TORTION. FM siercu, FM/AM supcrheiemdyne inner
With 6 ohm loads, both
channels driven, from 70 ~
20,000 Hz; rated 50 watts per
channel minimum RMS
power, with no more than
0.9 % total harmonic distor-
tion from 250 milliwatts to
rated output.
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohm unbalanced
lninrmudialc frequency
107 MHZ
- Contlnued on next page -
COMPACT msc DECK RECEIVER
S 0 NY;
