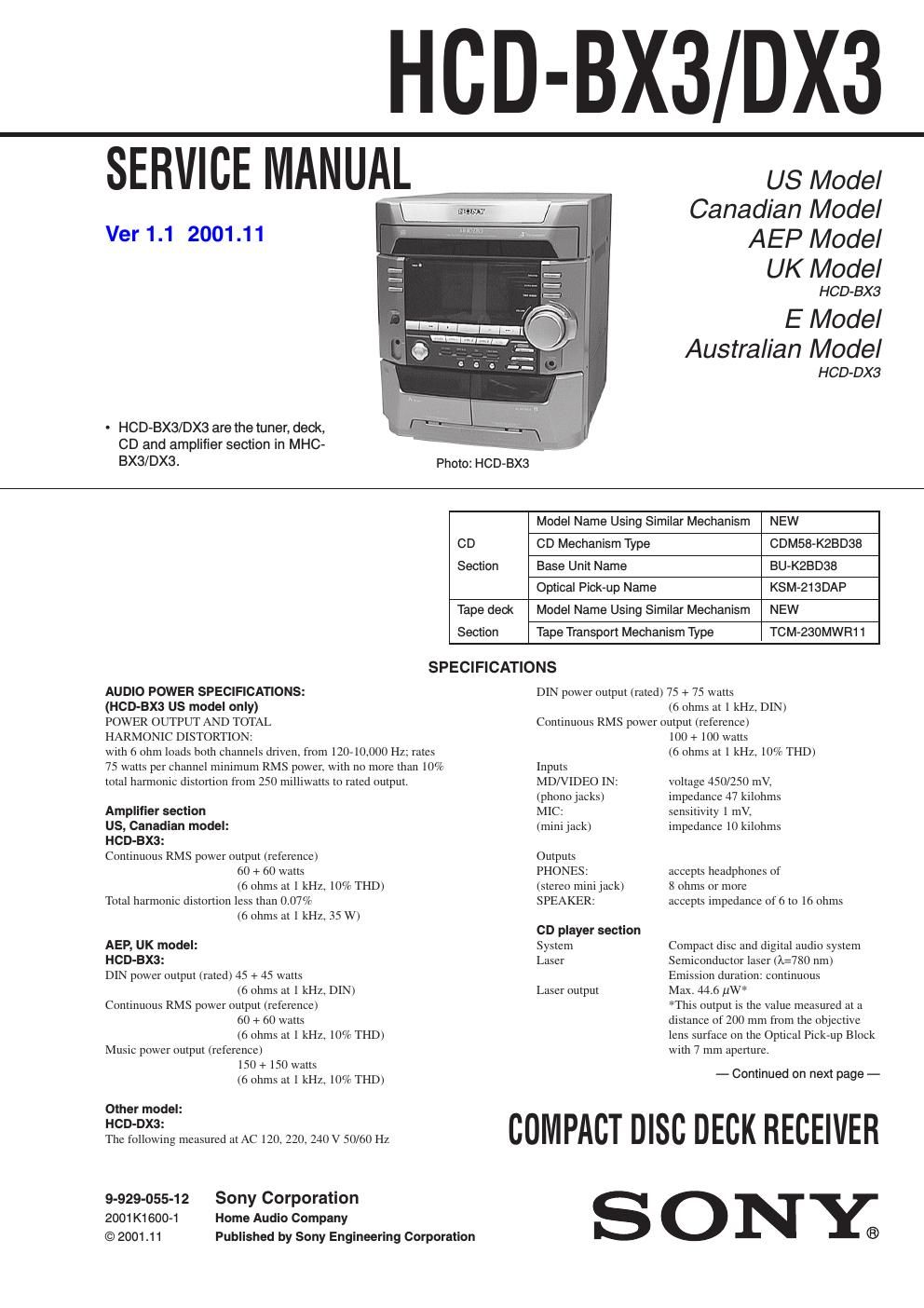

Page 1
2
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.ATTENTION AU COMPOSANT AYANT RAPPORT
ร- LA SรCURITร!
LES COMPOSANTS IDENTIFรS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHรMATIQUES ET LA LISTE DES PIรCES SONT
CRITIQUES POUR LA SรCURITร DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIรSES SONY
DONT LES NUMรROS SONT DONNรS DANS CE MANUEL OU
DANS LES SUPPรMENTS PUBLIรS PAR SONY.
SAFETY CHECK-OUT
(US model only)
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
Earth GroundAC
voltmeter
(0.75V) 1.5k-ฆ 0.15ยตF
Fig. A. Using an AC voltmeter to check AC leakage.
To Exposed Metal
Parts on Set
Wavelength 780 - 790 nm
Frequency response 2 Hz - 20 kHz (ยฑ0.5 dB)
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength 660 nm
Output Level-18 dBm
Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 - 13,000 Hz (ยฑ3 dB), using Sony TYPE I
cassette
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
US, Canadian, Mexican, Argentina models:
530 - 1,710 kHz
(with the interval set at 10 kHz)
531 - 1,710 kHz
(with the interval set at 9 kHz)
AEP, Saudi Arabia models:
531 - 1,602 kHz
(with the interval set at 9 kHz)
Other models: 531 - 1,602 kHz
(with the interval set at 9 kHz)
530 - 1,710 kHz
(with the interval set at 10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz
General
Power requirements
US, Canadian models: 120 V AC, 60 Hz
AEP model: 230 V AC, 50/60 Hz
Australian model: 230-240 V AC, 50/60 Hz
Mexican model: 120 V AC, 50/60 Hz
Other models: 120 V, 220 V or 230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector
Power consumption
US model:
HCD-BX3: 140 watts
Canadian model:
HCD-BX3: 130 watts
AEP model:
HCD-BX3: 130 watts
Other models:
HCD-DX3: 170 watts
Dimensions (w/h/d)
HCD-BX3/DX3: Approx. 280 x 325 x 403 mmMass
US model:
HCD-BX3: Approx. 7.8 kg
Canadian model:
HCD-BX3: Approx. 7.8 kg
AEP model:
HCD-BX3: Approx. 7.9 kg
Other models:
HCD-DX3: Approx. 8.9 kg
Design and specifications are subject to change without notice.
Page 2
3
This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.
Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
-Keep the temperature of soldering iron around 270หC
during repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering
or unsoldering.
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens. TABLE OF CONTENTS
MODEL IDENTIFICATION
- BACK PANEL -
MODEL
BX3: AEP, UK, G, AED models
DX3: AR, E, EA, SP, TW, MY models
BX3: US, CND models
DX3: AUS, KR, MX, TH models
BX3: CIS model
PARTS No.
4-224-547-0s
4-224-547-1s
4-224-547-2s
4-224-547-4s
4-226-245-0s
-Abbreviation
CND : Canadian model
AUS : Australian model
G : German model
AED : North European model
EA : Saudi Arabia model
MY : Malaysia model
PARTS No.
1. SERVICE NOTE ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
2. GENERAL ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท5
3. DISASSEMBY ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท7
4. TEST MODE ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท12
5. MECHANICAL ADJUSTMENTS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท16
6. ELECTRICAL ADJUSTMENTS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท16
7. DIAGRAMS 7-1. Circuit Board Locationยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท21
7-2. Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท22
7-3. Printed Wiring Board BD Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท24
7-4. Schematic Diagram BD Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท25
7-5. Printed Wiring Board Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท26
7-6. Schematic Diagram Main Section (1/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท27
7-7. Schematic Diagram Main Section (2/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท28
7-8. Schematic Diagram Main Section (3/3)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท29
7-9. Printed Wiring Board AMP Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท30
7-10. Schematic Diagram AMP Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท31
7-11. Printed Wiring Board Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท32
7-12. Schematic Diagram Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท33
7-13. Printed Wiring Board Leaf SW Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท34
7-14. Schematic Diagram Leaf SW Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท35
7-15. Printed Wiring Board Driver Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท36
7-16. Schematic Diagram Driver Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท37
7-17. Printed Wiring Board Trans Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท38
7-18. Schematic Diagram Trans Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท39
7-19. IC Pin Function Descriptionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท40
7-20. IC Block Diagramsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท42
8. EXPLODED VIEWS 8-1. Main Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท45
8-2. Panel Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท46
8-3. Main Board Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท47
8-4. Tape Mechanism Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท48
8-5. CD Mechanism Sectionยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท49
9. ELECTRICAL PARTS LIST ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท50
SP : Singapore model
TH : Thai model
TW : Taiwan model
KR : Korea model
MX : Mexican model
AR : Argentina model
