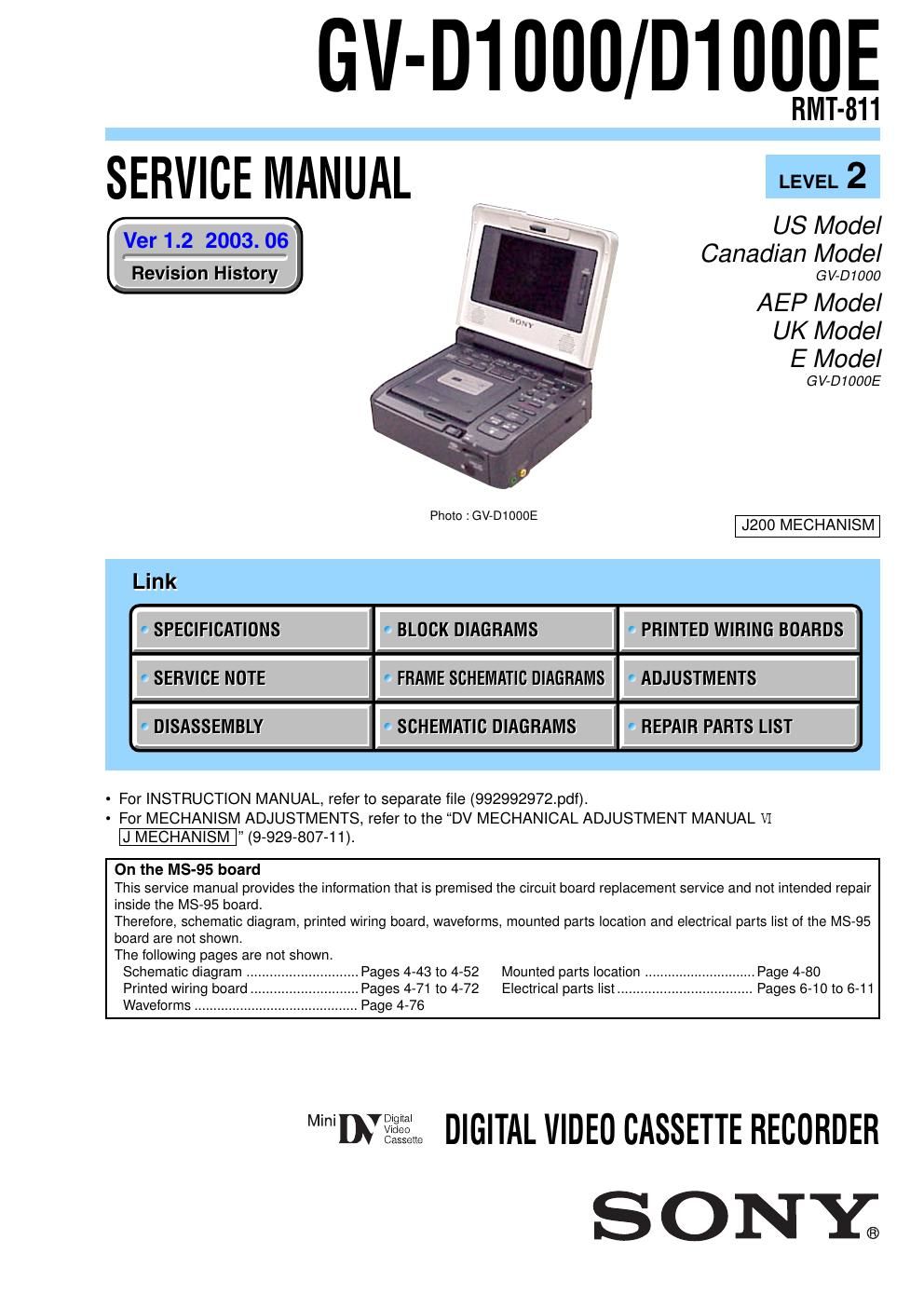

Page 1
GV-D1000/D1000E
EMT-811
SERVICE MANUAL
Ver 1.2 2003. 06
US Model
Canadian Model
Revision History GV-D1000
AEP Model
UK Model
E Model
G V-D1000E
Photo :GV-D1000E J200 MECHANISM
L311]:
' SPECIFICATIONS ' BLOCK DIAGRAMS
' SERVICE NOTE ' FRAME SCHEMATIC DIAGRAMS ' ADJUSTMENTS
' DISASSEMBLY ' SCHEMATIC DIAGRAMS ' REPAIR PARTS LIST
- For INSTRUCTION MANUAL, refer to separate file (992992972.pdf).
- For MECHANISM ADJUSTMENTS, refer to the DV MECHANICAL ADJUSTMENT MANUAL VI
J MECHANISM "(9-929v807-11).
On the MS-95 board
This service manual provides the information that is premised the circuit board replacement service and not intended repair
inside the MS-95 board.
Therefore, schematic diagram, printed wiring board, waveforms, mounted parts location and electrical parts list of the MS-95
board are not shown
The following pages are not shown.
Schematic diagram ............................. Pages 4-43 to 4-52 Mounted parts location ............................. Page 4-80
Printed wiring board Pages 4-71 to 4-72 Electrical parts list ................................... Pages 6-10 to 6-11
Waveforms ........................................... Page 4-76
IN DIGITAL VIDEO CASSETTE RECORDER
S O NY®
Page 2
GV-D1000/D1000E
felifllaysqugm
VCR
System
Video recording system
2 rotary heads
Helical scanning system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (F5 32 kHz,
stereo 1, stereo 2),
16 bits (Fs 48 kHz, stereo)
Video signal
PAL colour, CCIR standards
Usable cassette
Mini DV cassette with the WIN
mark printed
Tape speed
SP: Approx. 18.81 mm/s
LP: Approx. 12.56 mm/s
Recording/playback time (using
cassette DVM60)
SP: 1 hour
Ll: 1.5 hours
FastfonNard/rewind time (using
cassette DVMGO)
Approx. 2 min.
lnputloutput
connectors
S video input
4-pin mini DlN
Luminance signal: 1 Vp-p, 75 S2
(ohms), unbalanced
GV-D1000 :
Chrominance signal: 0.286 Vp-p
75 52 (ohms), unbalanced
GV-D1000E :
Chrominance signal: 0.3 Vp-p,
75 52 (ohms), unbalanced
[D InfoLITHIUM
SERIES
in
@ifcu
IIlIIMII
SPECIFICATIONS
S video output LCD screen
4-pin mini DIN Picture
Luminance signal: 1 Vp-p, 75 52
(ohms), unbalanced
GV-D1000 :
Chrominance signal: 0.286 Vp-p
75 S2 (ohms), unbalanced
GV-D1000E :
Chrominance signal: 0.3 Vp-p,
75 $2 (ohms), unbalanced
Audio/Video input
AV MINUACK
Video: 1 Vp-p, 75 52 (ohms),
unbalanced, sync negative
Audio: 327 mV, input impedance
more than 47 k9 (kilohms)
Video output
Phono jack, 1 Vp-p, 75 52 (ohms),
unbalanced, sync negative
Audio output
lhono jacks (2) 327 mV, output
impedance less than 1 kfl
(kilohms)
DV jack
4-pin connector: 3100
Headphone jack
Stereo minijack (o 3.5 mm)
LANC jack
Stereo minijack (o 2.5 mm)
USB jack
Mini-B
CAUTION :
10 cm (4.0 type)
80.6 X 60.5 mm (3 1/4 X 2 1/2 in.)
Total dot number
123 200 (560 X 220)
General
Power requirements
8.4 V (AC power adaptor)
7.2 V (battery pack)
Average power consumption
During playback using LCD
5.2 W
During playback when you close
the LCD panel
3.5 W
Operating temperature
0 C to 40 °C (32 F to 104 °F)
Storage temperature
-20 °C to +60 gC (-4 °F to +140 DF)
Dimensions (Approx.)
148 X 65 X 133 mm
(57/8 x25/8x5 1/8 in.)
(w/h/d)
Mass (approx.)
880 g (1 lb 15 oz)
excluding the battery pack and
cassette
Supplied accessories
See page 3.
Cassette
Me mory
m
MEMDRV STICK TM
AC power adaptor
Power requirements
100 - 240 V AC, 50/60 HZ
Output voltage
DC OUT: 8.4 V, 1.5 A in the
operating mode
Operating temperature
0 C to 40 C (32 0F to 104 °F)
Storage temperature
~20 C to +60 °C (4 °F to +140 °F)
Dimensions (approx.)
125 X 39 X 62 mm
(5 x 1 9/16 x 2 1/2 in.) (w/h/d)
excluding projecting parts
Mass (approx.)
280 g (9.8 oz)
excluding power cord
Design and specifications are
subject to change without notice.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY MARKA OR DO'I'I'ED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIPES PAR UNE MARQUE A SUR LES
DIAGRAMMES SCHEMATIQUES ET LA LISTE DES PIECES SONT
CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIESES SONY
DONT LES NUMEROS SONT DONNES DANS CE MANUEL ou
DANS LES SUPPEMENTS PUBLIES PAR SONY.
_2_
