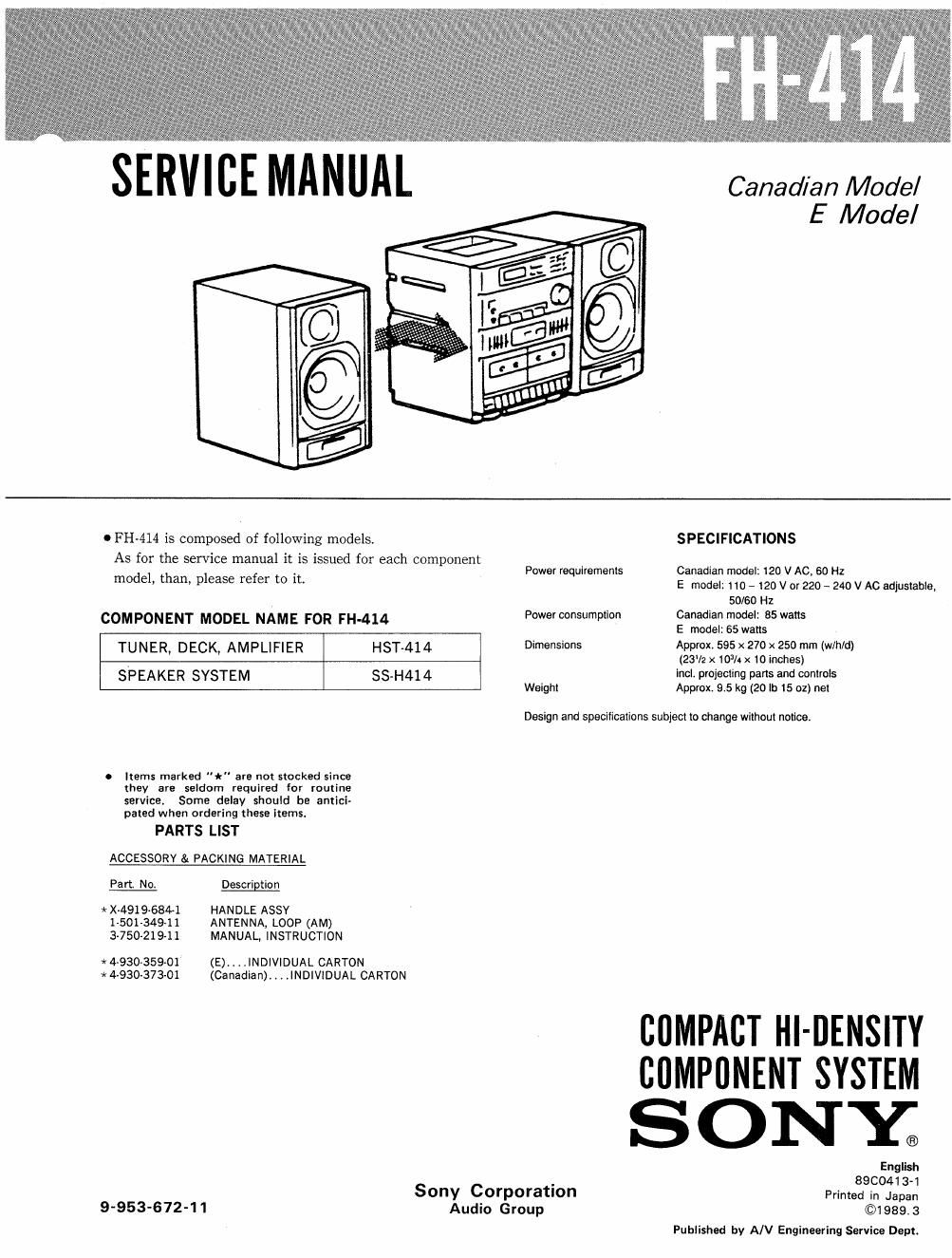

SERVI
CEMANUAL
Canadian Model
E Model
OFH-4l4 is composed of following models.
As for the service manual it is issued for each component
model, than, please refer to it.
COMPONENT MODEL NAME FOR FH-414
TUNER, DECK, AMPLIFIER HST-414
SPEAKER SYSTEM SSvH414
0 Items marked "e" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these Items.
PARTS LIST
ACCESSORY & PACKING MATERIAL
Part No
* X-4919~6841
1.5013494 1
3-750~219~11
* 4-930-359-01
* 4-930~373~01
9-953-672-11
Description
HANDLE ASSY
ANTENNA, LOOP (AM)
MANUAL INSTRUCTION
(E)l , . INDIVIDUAL CARTON
(Canadian), , . ,INDIVIDUAL CARTON
Power requirements
Power consumption
Dimensions
Weight
SPECIFICATIONS
Canadian model: 120 V AC. 60 Hz
E model: 110 - 120 V or 220 - 240 V AC adjustable,
50/60 Hz
Canadian model: 85 watts
E model: 65 watts
Approx. 595 x 270 x 250 mm (th/d)
(23'I2 x 10]: x 10 inches)
incl. projecting pans and controls
Approx. 95 kg (20 lb 15 02) net
Design and specifications subject to change without notice
Sony Corporation
Audio Group
COMPACT HI-DENSITY
CUMPIINENT SYSTEM
SONY;
English
89CO413-1
Printed in Japan
©1989.3
Published by A/V Engineering Service Dept.
