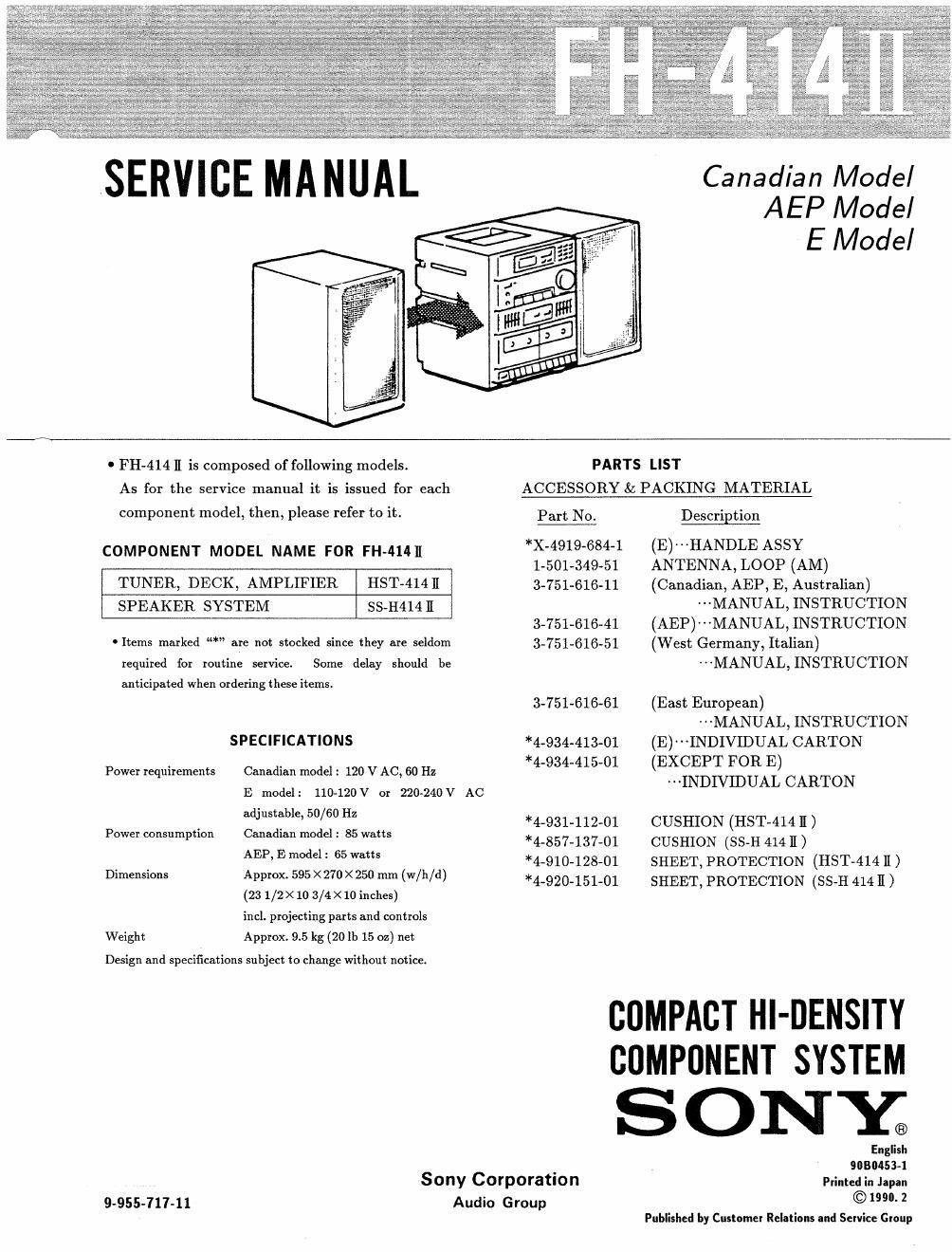

Canadian Model
AEP Model
E Model
0 FH-414 l is composed of following models.
As for the service manual it is issued for each
component model, then, please refer to it.
COMPONENT MODEL NAME FOR FH-4lll
TUNER, DECK, AMPLIFIER
SPEAKER SYSTEM
HST-414 II
SS-H414 ll
mt
' Items marked are not stocked since they are seldom
required for routine service. Some delay should be
anticipated when ordering these items.
SPECIFICATIONS
Power requirements Canadian model : 120 V AC, 60 Hz
E model : 110420 V or 220-240 V AC
adjustable, 50/ 60 Hz
Canadian model : 85 watts
AEP, E model: 65 watts
Power consumption
Dimensions Approx. 595 X 270 X 250 mm (w/ h / d)
(23 1/2>< 10 3/4>< 10 inches)
incl. projecting parts and controls
Weight Approx. 9.5 kg (20 1b 15 oz) net
Design and specifications subject to change without notice
Sony Corporation
Audio Group
9-955-717-11
PARTS lIST
ACCESSORY & PACKING MATERIAL
Part No. Description
*X-4919-684-1 (By-HANDLE ASSY
1-501-349-51 ANTENNA, LOOP (AM)
3-751-616-11 (Canadian, AEP, E, Australian)
~ ' 'MANUAL, INSTRUCTION
3-751~616-41 (AEP) ' 'MANUAL, INSTRUCTION
3-751-616~51 (West Germany, Italian)
~~~MANUAL, INSTRUCTION
3-751-616-61 (East European)
~ ~ MANUAL, INSTRUCTION
(E)~INDIVIDUAL CARTON
(EXCEPT FOR E)
~~INDIVIDUAL CARTON
*4-934-413-01
*4-934-415-01
*4-931412-01
*4-857r137-01
*4-910-128-01
*4-920-151-01
CUSHION (HST-414 lI)
CUSHION (SS-H 414 ll)
SHEET, PROTECTION (HST-414 ll )
SHEET, PROTECTION (SS-H 414 II )
COMPACT Hl-DENSITY
COMPONENT SYSTEM
SONY;
English
9080453-1
Printed in Japan
© 1990. 2
Published by Customer Relations and Service Group
