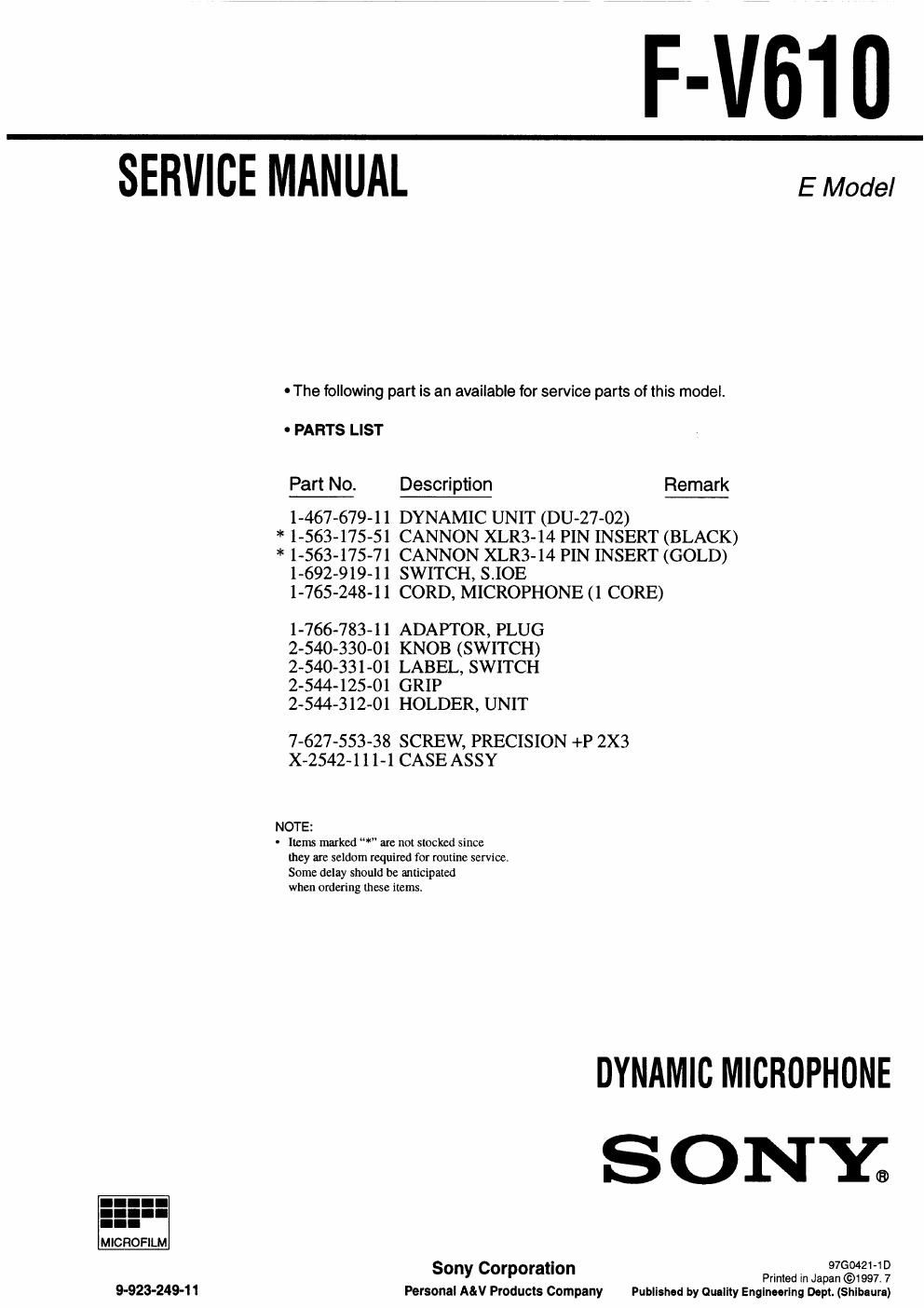

F-V610

SERVICE MANUAL EModel

-The following part is an available for service parts of this model.

- PARTS LIST

Part No. Description Remark

1-467-679-11 DYNAMIC UNIT (DU-27-02)
* 1-563-175-51 CANNON XLR3-14 PIN INSERT (BLACK)
* 1-563-175-71 CANNON XLR3-14 PIN INSERT (GOLD)
1-692-919-11 SWITCH, S.IOE
1-765-248-11 CORD, MICROPHONE (1 CORE)

1-766-783-11 ADAPTOR, PLUG
2-540-330-01 KNOB (SWITCH)
2-540-331-01 LABEL, SWITCH
2-544-125-01 GRIP
2-544-312~O] HOLDER, UNIT

7-627-553-38 SCREW, PRECISION +P 2X3
X-2542-1 I 1-1 CASE ASSY

NOTE:

' Ilems marked *" are not stocked since
they are seldom required for routine service,
Some delay should be amicipaled
when ordering these items,

DYNAMIC MICROPHONE
S ONYG,

' 97G0421-1D
sony COIPOI'EIIOH Printed in Japan @1997. 7

9.923-249-11 Personal A&V Producls Company Published by Qunlky Engineering Depi. (Shibuurn)
