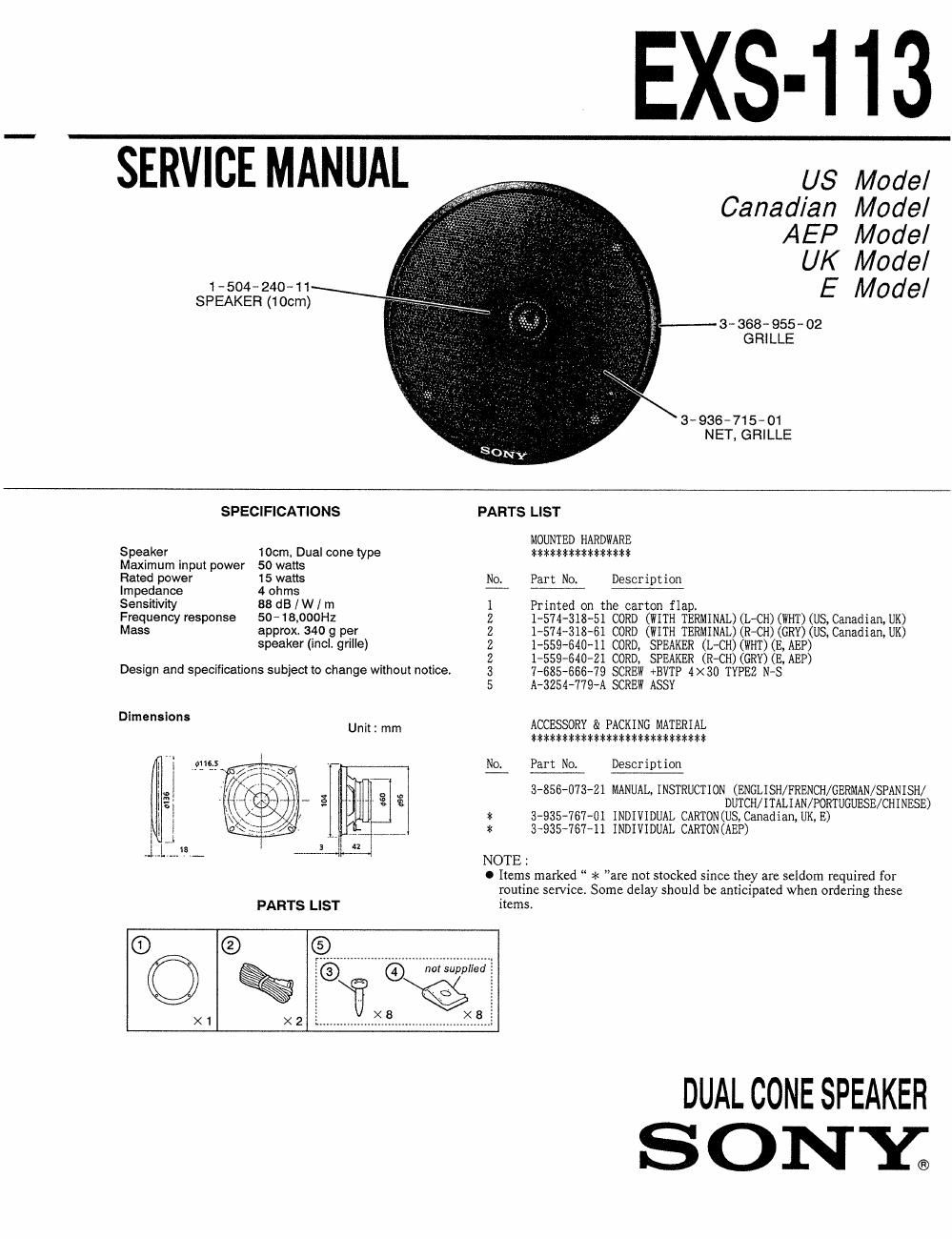

Page 1
EXS-113
SERVICE MANUAL
1-504- 240- 11
SPEAKER (10cm)
US Model
Canadian Model
AEP Model
UK Model
E Model
3- 368- 955-02
GRILLE
3-936-71501
NET, GRILLE
SPECIFICATIONS
Speaker 100m, Dual cone type
Maximum input power 50 watts
Rated power 15 watts
Impedance 4 ohms
Sensitivity as dB /W / m
Frequency response 5048,00on
Mass
Design and specifications subject to change without notice.
Dimensions
approx. 340 g per
speaker (incl. grille)
Unit: mm
PARTS LIST
MOUNTED HARDWARE
x****x*****x***x
Part No. Description
Printed on the carton flapr
1-574-318~51 CORD (WITH TERMINAL) (L-CH) (WHT) (US, Canadian, UK)
1'574-318-61 CORD (WITH TERMINAL) (R-CH) (GRY) (US, Canadian, UK)
1-559-640-11 CORD, SPEAKER (LeCH)(WHT)(E,AEP)
1-559-640-21 CORD, SPEAKER (R-CH)(GRY)(E,AEP)
7-685~666~79 SCREW +BVTP 4X30 TYPEZ N-S
A-3254-779-A SCREW ASSY
mwNNNNH IE
ACCESSORY & PACKING MATERIAL
x*:*r***:*r*t**#***:***x****
z
0
Part No. Description
3-856-073-21 MANUAL, INSTRUCTION (ENGLISH/FRENCH/GERMAN/SPANISH/
DUTCH/ I TALI AN/ PORTUGUESE/ CHINESE)
x 3-935~767-01 INDIVIDUAL CARTON(US, Canadian, UK, E)
:k 3935467-11 INDIVIDUAL CARTON(AEP)
NOTE :
0 Items marked >t< are not stocked since they are seldom required for
routine service Some delay shouId be anticipated when ordering these
items.
not supplied
DUAL CONE SPEAKER
S O NY®
Page 2
Connections
High! speaker Len speaker
G'ay cord Mack armed wane com black swiped
9 0 0 0
#t it
Powei amplifier etc.
Mounting
Remove vI-e grme nel
amok smoeu ow:
Gray or Mile cord
Push me cows ov me gnlle net.
Q - 6)
Guns \
Door panel
Raj- (3an no!
4%
How lo mmovn m. grille m
Sony Corporation
Mobile Electronics Company
9-923-51 1 -1 1
v 2 _
En lish
96002043 -1D
Printed in Japan
©1996.8
Published by Home A&V Product: DIV.
Quality Engineering Dept.
