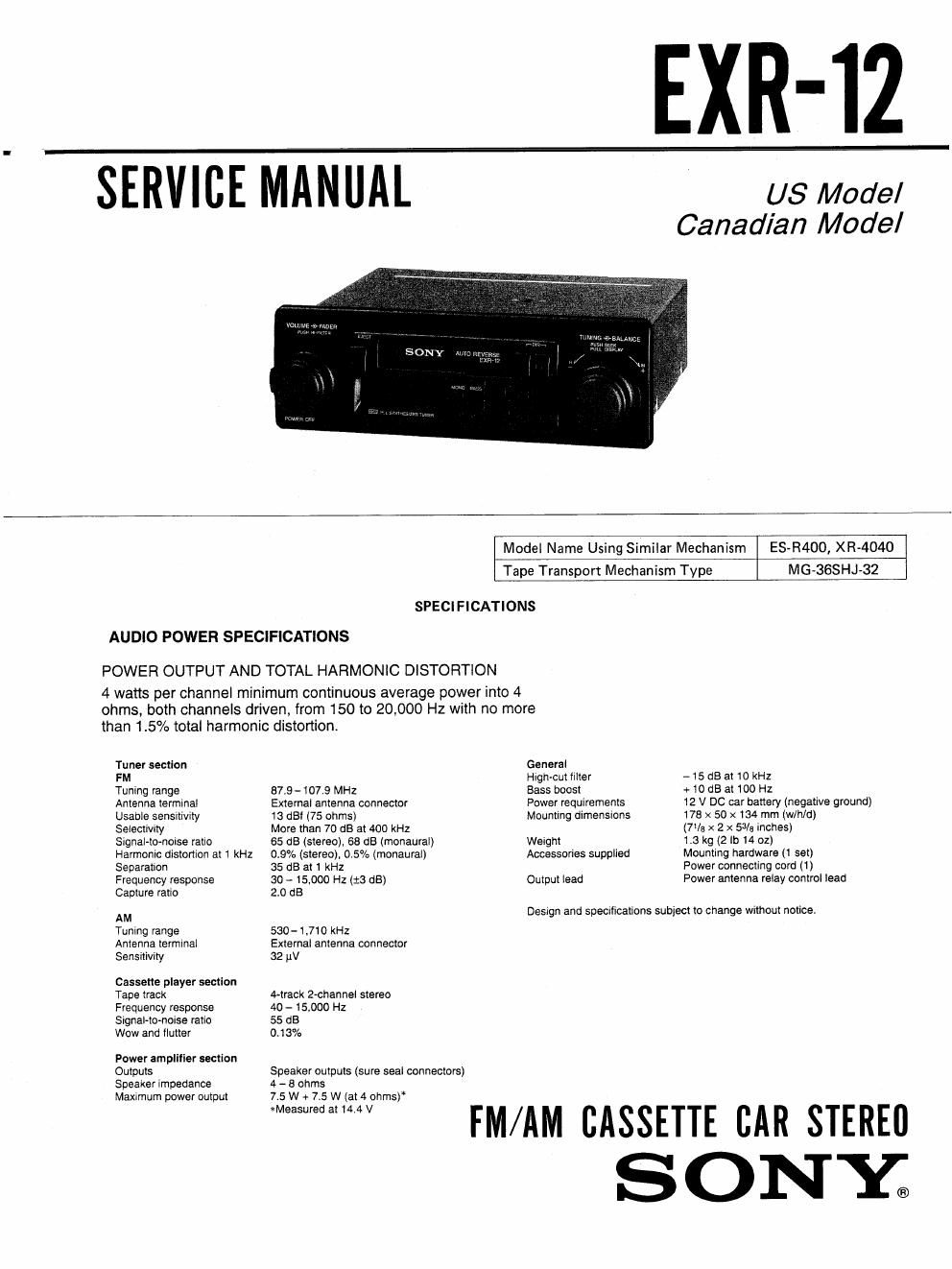

SERVICE MANUAL
EXR-IZ
U8 Model
Canadian Model
SONY w.-
ES-R400, XR-404O
MG-368HJ-32
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWEFI OUTPUT AND TOTAL HARMONIC DlSTOFlTlON
4 watts per channel minimum continuous average power into 4
ohms, both channels driven, from 150 to 20,000 Hz with no more
than 1.5% total harmonic distortion.
Tuner section
FM
Tuning range
Antenna terminal
Usable sensitivity
Selectrvrty
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
Capture ratio
AM
Tuning range
Antenna terminal
Sensitivity
Cassette player section
Tape track
Frequency response
Signal~to-noxse ratio
Wow and ilutter
Power amplifier section
Outputs
Speaker impedance
Maximum power output
General
High-cut filter - 15 dB at 10 kHz
879-1078 MHz Bass boost v 10 dB at 100 Hz
External antenna connector Power requirements 12 V DC car battery (negative ground)
13 dB! (75 ohms) Mounting dimensions 178 x 50 x 134 mm (w/hld)
(71/3 x 2 x 5% inches)
1.3 kg (2 lb 14 DZ)
Mounting hardware (1 set)
More than 70 dB at 400 kHz
65 dB (stereo), 68 dB (monaurai)
0.9% (stereo), 0.5% (monaural)
Weight
Accessories supplied
35 dB at 1 kHz Power connecting cord (1)
30 - 15,000 Hz (:3 dB) Output lead Power antenna relay control lead
2.0 dB
Design and specifications subject to change without notice.
530 -1,710 kHz
Extemal antenna oonnector
32 uV
4-track 2-channel stereo
40 - 15.000 Hz
55 dB
0.13%
Speaker outputs (sure seal connectors)
4 - 8 ohms
75 W + 7.5 W (at 4 ohms)"
*Measured at 14.4 V
FM/AM CASSETTE CAR STERED
SONY;
EXRJZ
Tuner section
. SSIR (Sony Super Interference Rejection) PLL
Synthesizer tuner.
- The quartz-locked digital synthesizer system
enables easy and accurate tuning.
- Up to 12 FM and 6 AM stations can be preset.
Cassette deck section
The auto-reverse function changes the tape
direction automatically.
Power amplifier section
0 Fader control for playback with a 4-speaker
system.
~ Maximum power output of 7.5 watts per
channeL
-The Hl-FlLTEFi (high-cut filter) eliminates the
trequency noise and delivers clear sound.
General
The quartz controlled digital clock.
SERVICING NOTE
Notes on chip component replacement
0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor
may be damaged by heat.
TABLE OF CONTENTS
Section Title Page
Specifications --------------------------- 1
Features ................................. 2
SECTION 1. GENERAL
Location and Function of Cuntrols ----- 3
Installation ........................... 4
ConnectiOns ............................ 5
SECTlON 2. DISASSEMBLY ~~~~~~~~~~~~~~ 6
SECTION 3. ADJUSTMENTS
3-1. Mechanical Adjustment: -- ' 7
3-2. Electrical Adjustments ----------- 7
SECTION 4. DIAG RAMS
4-1. Block Diagram -------------------- 10
4-2. Semiconductor Lead Layouts ------- 13
4-3. Printed Wiring Boards ------------ 13
44. Schematic Diagram ................ 17
4-5. FEl FM Front End Schematic
Diagram ........................ 20
4-5 [C Block Diagram ................. 21
SECTION 5. EXPLODED VIEWS
5-1. Chassis Assembly-1 ............... 22
5-2. Chassis Assembly-2 --------------- 23
5-3. MD Assembly-1 (MG-3GSHJ-32) . 24
5-4. MD Assembly-2 (MG-3GSHJ-32) """" 25
SECTION 6. ELECTRICAL PARTS LIST 26
Hardware List ......................... 31
