Sony EL 7 Owners Manual

Page 1

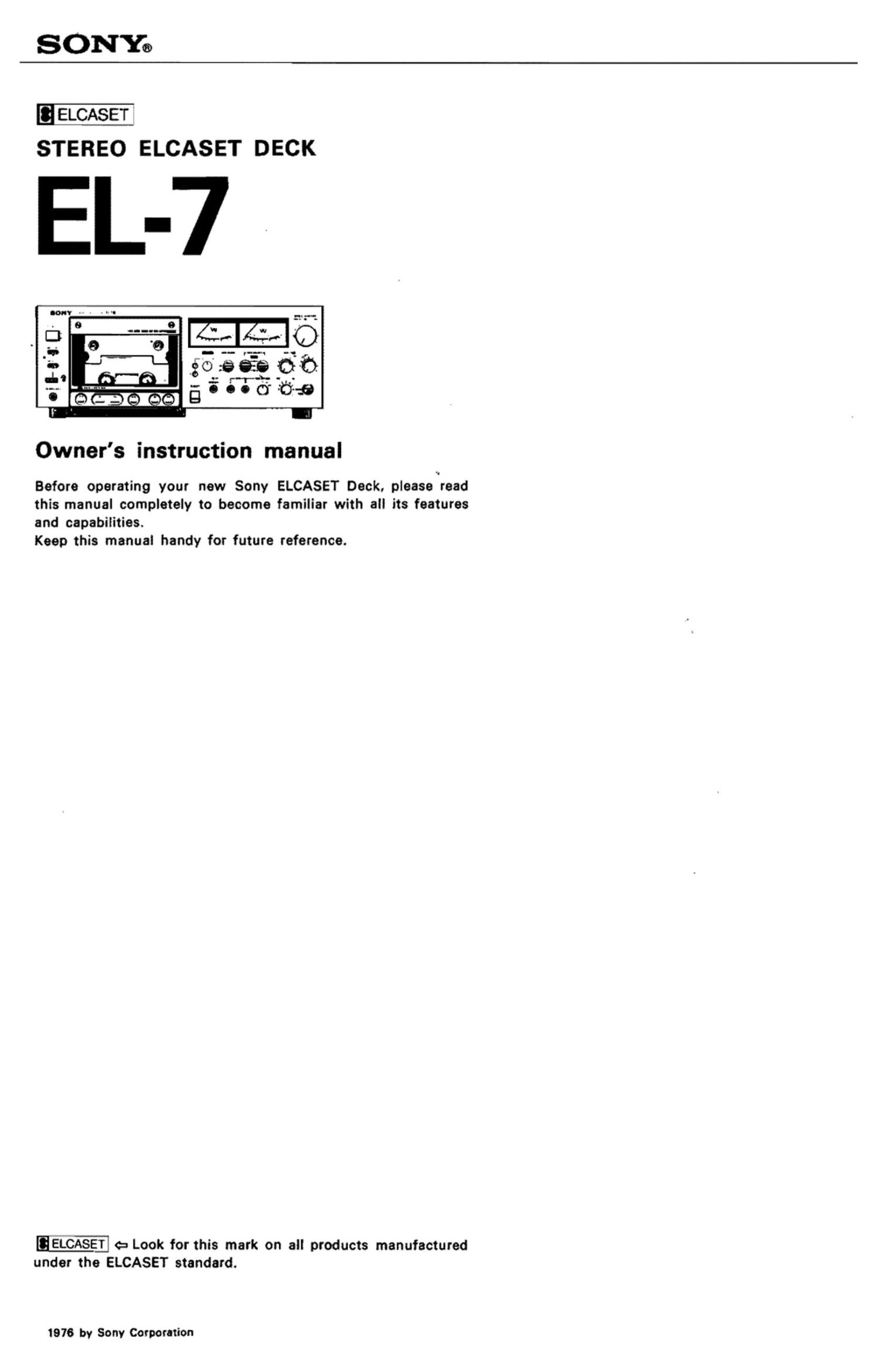

SONZ»

ELCASET
STEREO ELCASET DECK

L-7 #

n 3 ~

0 (eras " Iii-1919),

Owner's instruction manual

Before operating your new Sony ELCASET Deck, please read
this manual completely to become familiar with all its features
and capabilities.

Keep this manual handy for future reference.

IE ELCASE_T_ 9%» Look for this mark on all products manufactured
under the ELCASET standard.

1976 by Sony Corporation

Page 2

OWNER'S RECORD

The model and serial numbers are located at the rear. Record
these numbers in the space provided below. Refer to them
whenever you call upon your Sony dealer regarding this product.

Model No. EL-7 Serial No.

WARNING

To prevent fire or shock hazard, do not expose
the unit to rain or moisture.

To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel
only.

TABLE OF CONTENTS

Precautions ......................... 3
Location and function of controls ............. 4
Connections ........................ 6
Recording ......................... 8
Playback .......................... 9
Erasing ........................... 9
Dolby NR recording .................... 10
Recording Dolby encoded FM broadcasts .......... 10
Timer-activated recording and playback .......... 11
Mic and line mixing .................... 11
Memory counter operation ................. 11
Maintenance ........... - ............. 12
Notes on the ELCASET ................... 13
Features .......................... 13
Specifications ....................... 14
ELCASET~~A new audio recording system ......... 14

Trouble checks ................... back cover
