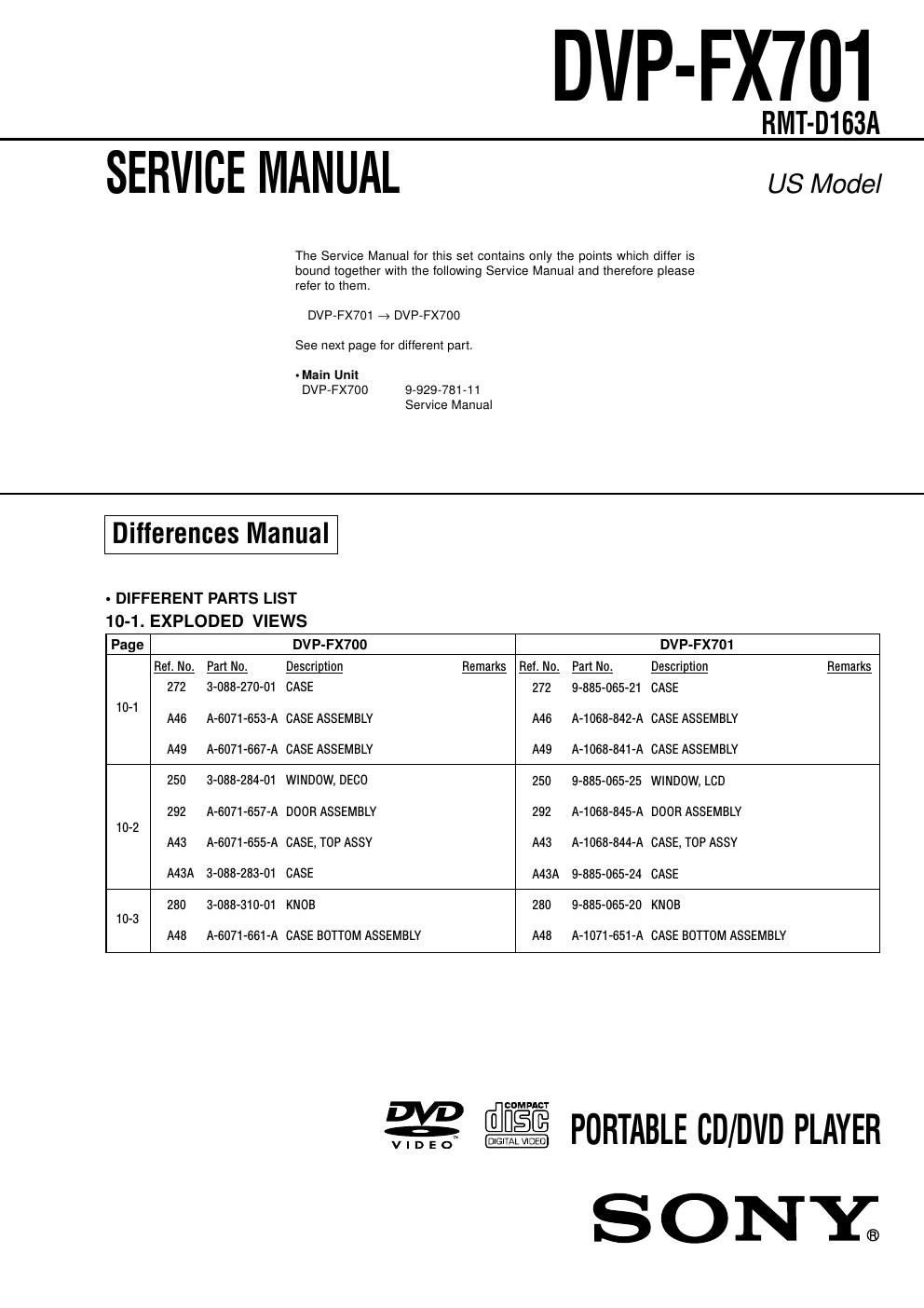

sony dvpfx 701 service manual

Extracted text from sony dvpfx 701 service manual (Ocr-read)

Page 1

-“ 2 -“ DVP-FX701 Sony Corporation Home Electronics Network Company 9-874-825-11 2004E0500-1 © 2004. 5 Published by Quality Assurance Dept. 10-2. ELECTRICAL PARTS LIST ACCESSORIES ************ A-1068-847-A INSTRUCTION ASSEMBLY 09-885-056-20 ADAPTOR, DC (DCC-FX100) 9-885-065-31 Y-SPLITTER, HEADPHONE PageDVP-FX700 DVP-FX701 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks ACCESSORIES ************ A-6071-666-A INSTRUCTION ASSEMBLY 10-6E The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied.
