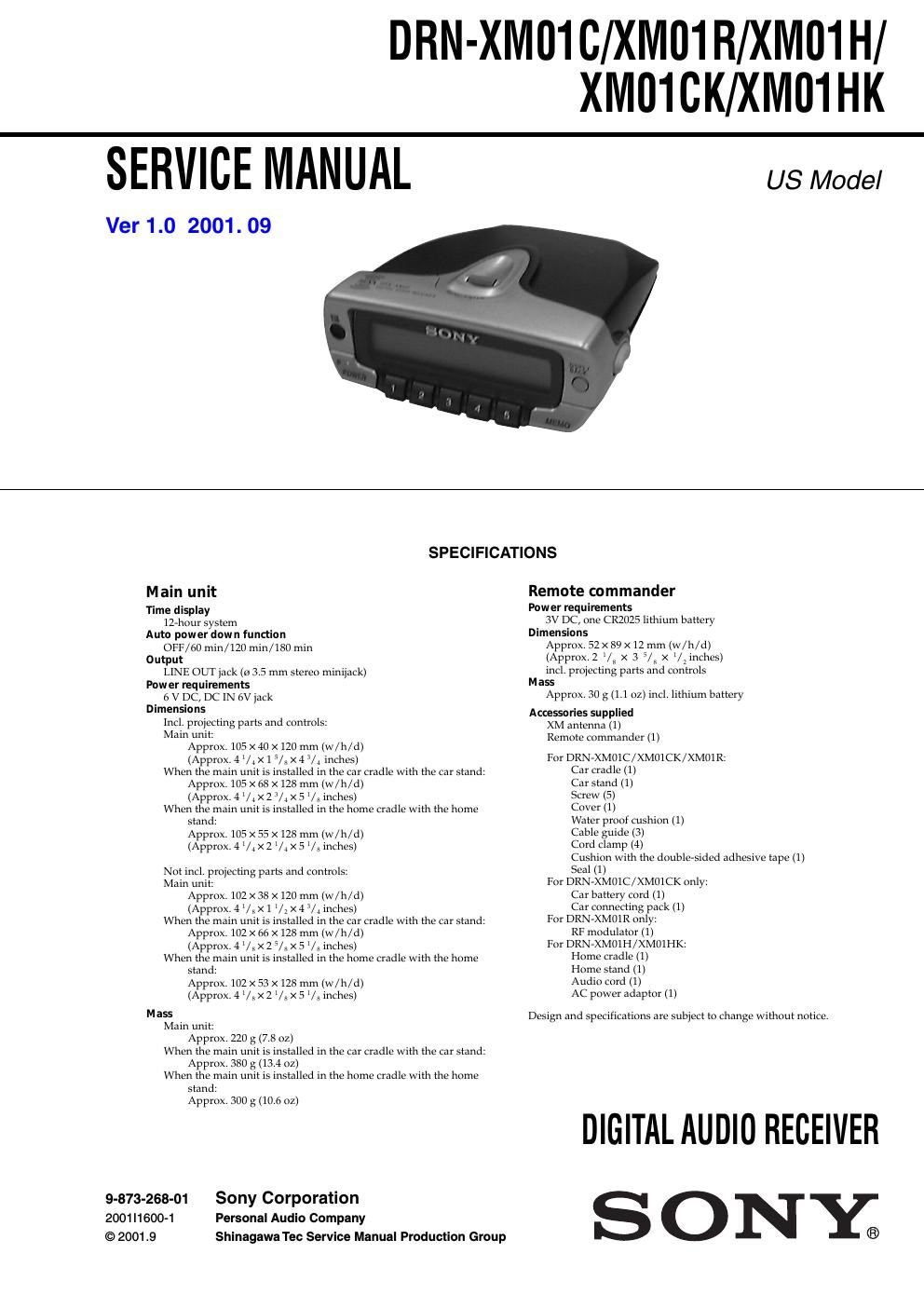

DRN-XM01C/XM01R/XM01H/

XM01CK/XM01HK

SERVICE MANUAL

Ver 1.0 2001. 09

US Model

SPECIFICATIONS

Main unit

Time display
12-hour system
Auto pow er down function
OFF/60 min/120 min/180 min
Output
LINE our jack (o 3.5 mm stereo minijack)
Power requirements
6 V DC, DC lN 6V jack
Dimensions
lncl. projecting parts and controls:
Main unit:
Approx. 105 x 40 x 120 rnrn (w/h/d)
(Approx. 4 1/1 X 1 /g X 4 Vi inches)
When the main unit is installed in the car cradle with the car stand:
Approx. 105 x 68 x 128 mm (w/h/d)
(Approx. 4 Vi x2 Vl x 5 /);inches)
When the main unit is installed in the home cradle with the home
stand:
Approx. 105 x 55 x 128 mm (w/h/d)
(Approx. 4 1/l x 2 1/1 x 5 /R inches)

Not incl. projecting parts and controls:

Main unit:
Approx. 102 x 33 x 120 mm (w/h/d)
(Approx. 4 Vs x 1 /2>< 4 /r inches)

When the main unit is installed in the car cradle with the car stand:
Approx. 102 x 66 x 128 mm (w/h/d)
(Approx. 4 1/8 X 2 Va X 5 V» inches)

When the main unit is installed in the home cradle with the home
stand:
Approx. 102 x 53 x 128 mm (w/h/d)
(Approx. 4 /5 X2 /g x 5 /);inches)

M ass

Main unit:
Approx. 220 g (7.8 oz)

When the main unit is installed in the car cradle with the car stand:
Approx. 380 g (13.4 oz)

When the main unit is installed in the home cradle with the home
stand:
Approx. 300 g (10.6 oz)

9-873-268-01 Sony Corporation
2001i1600-1 Personal Audio Company
© 2001.9 Shinagawa Tec Service Manual Production Group

Remote commander
Power requirements
3V DC, one CR2025 lithium battery
Dimensions
Approx. 52 x 89 x 12 mm (w/h/d)
(Approx. 2 /5 x 3 V x V. inches)
incl. projecting parts and controls
Mass
Approx. 30 g; (1.1 oz) incl. lithium battery

Accessories supplied
XM antenna (1)
Remote commander (1)

For DRN-XMDlC/XMl)1CK/XM01R:
Car cradle (1)
Car stand (1)
Screw (5)
Cover (1)
Water proof cushion (1)
Cable guide (3)
Cord clarnp (4)
Cushion with the doublesided adhesive tape (1)
Seal (1)
For DRN-XMUlC/XMUlCK only:
Car battery cord (1)
Car connecting pack (1)
For DRN-XMCIIR only:
RF modulator (1)
For DRN-XMUlH/XM()1HK:
Home cradle (1)
Home stand (1)
Audio cord (1)
AC power adaptor (1)

Design and specifications are subject to change without notice.

DIGITAL AUDIO RECEIVER
S ONYC;

Page 2

DRN-XMO1C/XM01R/XM01H/
XM01CK/XM01HK

TABLE OF CONTENTS
1_ GENERAL 4

2. DISASSEMBLY u
2-l. From Panel Assy
2-2. LCD Board ----
2-3. Lower Cabinet Assembly,

Upper Cabinet Assembly .......................................... 7
2-4. BB Board, DC FAN
2-5. CPU Board, USB Board

3. TEST MODE rrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr 9

4_ DlAG RAMS rrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrrr 24
4-1. Block Diagram 7 Tuner Section
7 Control Section 7 ---------------
4-2. Printed Wiring Boards 7 CPU Board 7
4-3. Schematic Diagram 7 CPU Board (1/2) 7
4-4. Schematic Diagram 7 CPU Board (2/2) 7
4-5. Printed Wiring Boards 7 BB Board 7n
4-6. Schematic Diagram 7 BB Board (1/3)
4-7. Schematic Diagram 7 BB Board (2/3)
4-8. Schematic Diagram 7 BB Board (3/3)
4-9. Printed Wiring Boards 7 Panel Section 7
4- [0, Schematic Diagram 7 Panel Section 7
4-llr IC Block Diagrams
4-12r IC Pin Function Description


5. EXPLODED VIEWS
5-1. Front Panel Assembly,
Lower Panel Assembly -
5-2. Upper Cabinet Assembly

6. ELECTRICAL PARTS |_|s1' ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 42

Notes on chip component replacement

- Never reuse a disconnected chip component

- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing

- Keep the temperature of soldering iron around 270C
during repairing

- Do not touch the soldering iron on the same conductor of the
circuit Board (within 3 times)

- Be careful not to apply force on the conductor when soldering
or unsolden'ngr

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARKA OR DOTTED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
