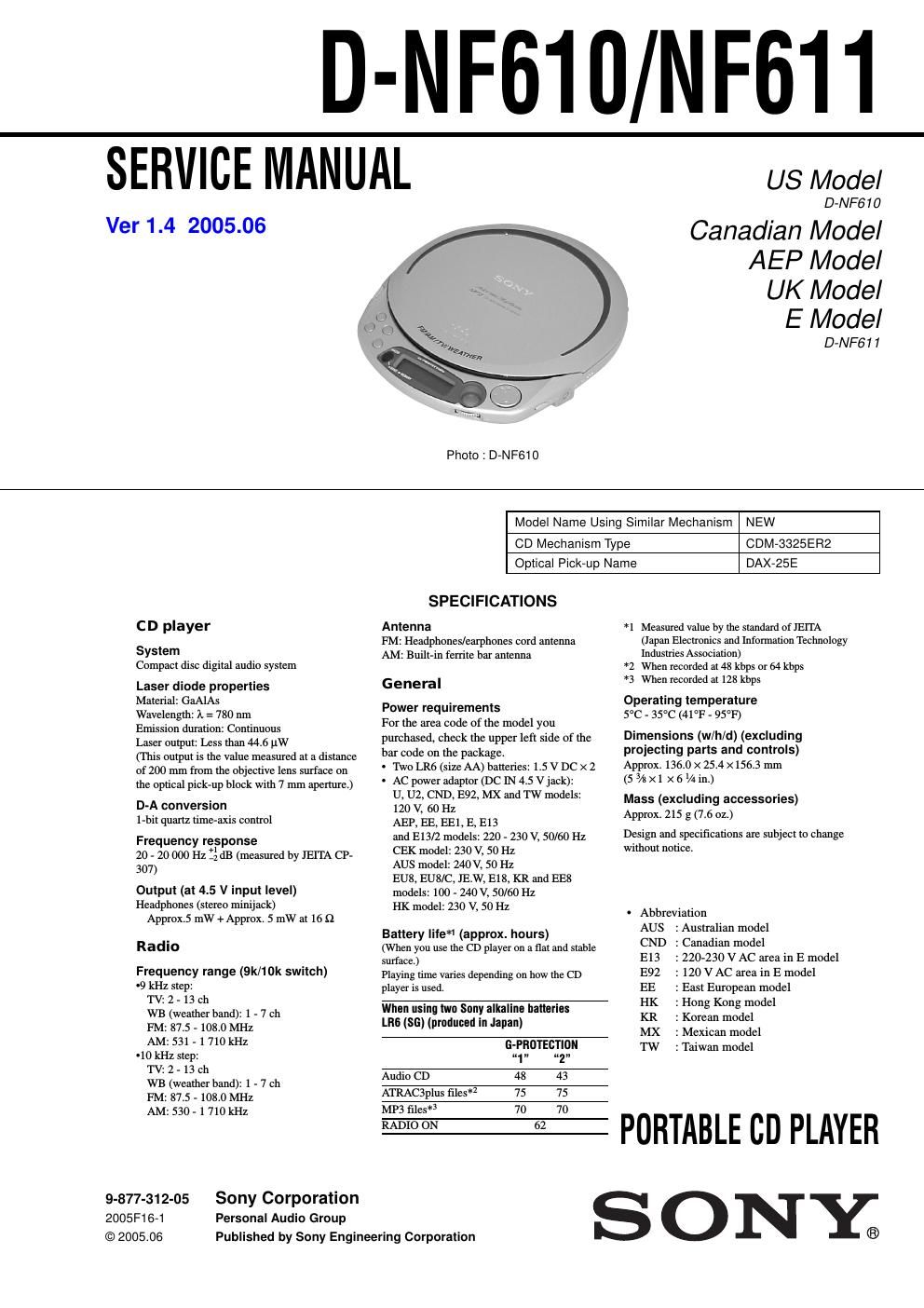

Page 1

D-NF610/NF611

SERVICE MANUAL

Ver 1.4 2005.06

US Model

D-NF610

Canadian Model
AEP Model

UK Model

E Model

CD player

System
Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wavelength: )u : 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 llW

(I'his output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)

D-A conversion
1-bit quartz time-axis control

Frequency response
20 » 20 000 Hz 3 dB (measured by JElTA CP-
307)

Output (at 4.5 V input level)
Headphones (stereo minijack)
Approx.5 mW + Approx. 5 mW at 16 S2

Radio

Frequency range (Elk/10k switch)
-9 kHz step:
TV: 2 - 13 ch
WB (weather band): 1 - 7 ch
FM: 87.5 - 108.0 MHZ
AM: 531 » 1 710kHz
-10 kHz step:
TV: 2 - 13 ch
WB (Weather band): 1 - 7 ch
FM: 87.5 - 108.0 MHZ
AM: 530 >1710 kHz

9-877-312-05 Sony Corporation
2005F16-1 Personal Audio Group
© 2005.06

Published by Sony Engineering Corporation

D-NF61 1
Photo : D-NF610
Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM-3325ER2
Optical Pick-up Name BAX-25E

SPECIFICATIONS

Antenna
FM: Headphones/earphones cord antenna
AM: Built-in ferrite bar antenna

*1 Measured value by the standard of JEITA
(Japan Electronics and Information Technology
industries Association)

*2 When recorded at 48 kbps or 64 kbps

General *3 When recorded at 128 kbps

Operating temperature

Power requtrements 5°C _ 35w (419]: _ 95W)

For the area code of the model you
purchased, check the upper left side of the
bar code on the package.
Two LRG (size AA) batteries: 1.5 V DC X 2
- AC power adaptor (DC IN 4.5 Vjack):
U, U2, CND, E92, MX and TW models:
120 V. 60 Hz
AEP, EE, EEl, E, E13
and E13/2 models: 220 - 230 V, 50/60 Hz
CEK model: 230 V, 50 Hz
AUS model: 240V, 50 Hz
EU8, EUS/C, JEW, E18, KR and ES
models: 100 - 240V, 50/60 Hz
HK model: 230 V, 50 Hz

Dimensions (w/h/d) (excluding
proiecting parts and controls)
Approx. 136.0 x 25.4 X1563 mm
(53/8X1X61fl1in.)

Mass (excluding accessories)
Approx. 215 g (7.6 oz.)

Design and specifications are subject to change
Without notice.

- Abbreviation
AUS : Australian model
CND : Canadian model
E13 :220-230 V AC area in E model

Battery life44 (approx. hours)
(When you use the CD player on a flat and stable

surface.)
Playing time varies depending on how the CD E92 : 120 V AC area in E model
player is used. EE : East European model

HK : Hong Kong model
KR : Korean model
MX : Mexican model

When using two Sony alkaline batteries
LRE (86) (produced in Japan)

G'PRUTECTION TW : Taiwan model
aft 21!
Audio CD 48 43
ATRAC3pluS files": 75 75
MP3 files 70 70

RADIO ON 62

PORTABLE CD PLAYER
S ONYC;

Page 2

D-NF610/NF611

TABLE OF CONTENTS
1. SERVIClNG NOTE 3
2. GENERAL .............................................................. 4
3. DISASSEMBLY ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 5
4. ELECTRICAL ADJUSTMENT g
5. DIAGRAMS10
571. Block Diagram
7 MAIN Section 7 ~ 11
7 TUNER Section 7 ~ 12
5-2. Primed Wiring Board
E MAIN Board (Side A)(1/2) E 13
5-3. Printed Wiring Board
7MAIN Board (Side A)(2/2) 7 14

5-4. Printed Wiring Board MAIN Board (Side B)(1/2)715
575. Printed Wiring Board- MAIN Board (Side B)(2/2)716
5-6. Schematic Diagram 7 MAIN Board (1/5) 7 17
5-7. Schematic Diagram 7 MAIN Board (2/5) 7 18
5-8. Schematic Diagram 7 MAIN Board (3/5) 7
5-9. Schematic Diagram 7 MAIN Board (4/5) 7
5-10. Schematic Diagram 7 MAIN Board (5/5) 7
5-11.IC Block Diagram ----------
5712. IC Pin Function Descriptions

5_ EXPLODED VIEWS 32
7. ELECTRICAL PARTS LIST ....................................... 35

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)

EAD FREE MARK

Unleaded solder has the following characteristics

Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to
about 350°C.

Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!

Strong Viscosity

Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.

Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BV MARKA OR DO'I'I'ED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

2

This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

Flexible Circuit Board Repairing

0 Keep the temperature of the soldering iron around 270 aC dur-
ing repairing.

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

0 Be careful not to apply force on the conductor when soldering
or unsoldering.

Notes on chip component replacement

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

Notes on the power source
Disconnect all power sources when the CD player is not used for a long time.

On Ac power adaptor

- Use only the AC power adaptor supplied.
If your CD player is not supplied with the one, use the AC-E45HG AC
power adaptor. Do not use any other AC power adaptor. It may cause a
malfunction.

Polarity at the plug
9-6
M

- Do not touch the AC power adaptor with wet hands.

' Connect the AC power adaptor to an easily accessible AC outlet. Should
you notice an abnormality in the AC power adaptor, disconnect it from
the AC outlet immediately.

ATI'ENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFES PAR UNE MARGUE A SUR LES
DIAGRAMMES SCHEMATIOUES ET LA LISTE DEs PIECES SONT
CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIESES SONY
DONT LES NUMEROS SONT DONNES DANS CE MANUEL ou
DANS LES SUPPEMENTS PUBLIES PAR SONY.
