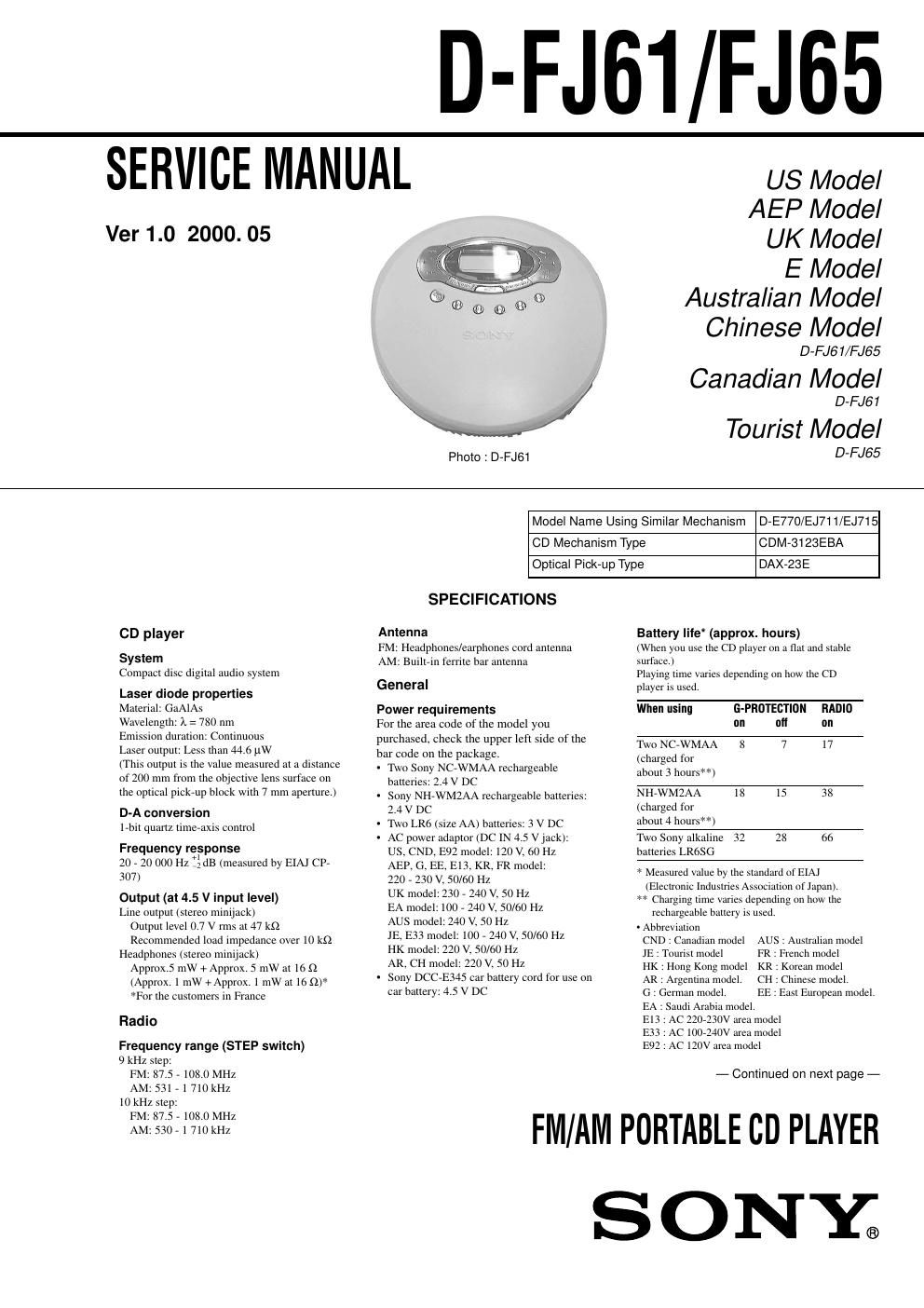

Page 1
- 2 -
D-FJ65 D-FJ61
Supplied accessories
For the area code of the location in which you
purchased the CD player, check the upper left side
of the bar code on the package.
AC power adaptor (1) aa
Headphones/earphones with - a remote control (1)
Headphones/earphones (1) a -
Rechargeable batteries (2) - a
Battery carrying case (1) - a
Strap (1) US model only aa
For US customers
The AC power adaptor supplied is not intended to
be serviced. Should the AC power adaptor cease to
function in its intended manner, during the warranty
period, the adaptor should be returned to your
nearest Sony Service Center or Sony Authorized
Repair Center for replacement, or after warranty
period, it should be discarded.
Operating temperature5ยฐC - 35ยฐC (41ยฐF - 95ยฐF)
Dimensions (w/h/d) (excluding
projecting parts and controls)
Approx. 131 ร 30 ร 136 mm
(5 1-4 ร 1 3-16 ร 5 3-8 in.)
Mass (excluding accessories)Approx. 200 g (7.1 oz.)
Design and specifications are subject to change
without notice.
1. SERVICING NOTES ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท3
2. GENERALยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
3. DISASSEMBLY
3-1. Cabinet (Rear) Sub ASSY,
Cabinet (Front), Main Boardยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6
3-2. MD ASSYยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6
3-3. Motor ASSY, Turn Table (Spindle) (M901)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท7
3-4.Motor ASSY (Sled) (M902),
Optical Pick-up (DAX-23E)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท7
3-5.Lid, Upper, Switch Unitยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท7
4. ELECTRICAL ADJUSTMENS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท8
5. DIAGRAMS
5-1. BLOCK DIAGRAM - CD SECTION - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท11
- TUNER SECTION - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท13
5-4. SCHEMATIC DIAGRAM - TUNER SECTION - ยทยทยทยทยทยทยทยทยทยท15
5-5. SCHEMATIC DIAGRAM - CD SECTION - ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท17
5-2. PRINTED WIRING BOARDยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท20
5-6. EXPLANATION OF IC TERMINALSยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท23
5-7. IC BLOCK DIAGRAMSยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท27
6. EXPLODED VIEWS
6-1. CABINET SECTIONยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท30
6-2. OPTICAL PICK-UP SECTION
(CDM-3123EBA)ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท31
7. ELECTRICAL PARTS LIST ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท32
ATTENTION AU COMPOSANT AYANT RAPPORT
ร- LA SรCURITร!
LES COMPOSANTS IDENTIFIรS PAR UNE MARQUE 0 SUR LES
DIAGRAMMES SCHรMATIQUES ET LA LISTE DES PIรCES
SONT CRITIQUES POUR LA SรCURITร DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIรCES
SONY DONT LES NUMรROS SONT DONNรS DANS CE MANUEL
OU DANS LES SUPPLรMENTS PUBLIรS PAR SONY.SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
Flexible Circuit Board Repairing
-Keep the temperature of the soldering iron around 270ยฐC during
repairing.
-Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
-Be careful not to apply force on the conductor when soldering or
unsoldering.
Notes on chip component replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
TABLE OF CONTENTS
This Compact Disc player is
classified as a CLASS 1 LASER
product.
The CLASS 1 LASER
PRODUCT label is located on
the rear exterior. CAUTION
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
Laser component in this product is capable of emitting
radiation exceeding the limit for Class 1.
DANGER
Invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
Page 2
- 3 -
S801
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the charged
electrostatic load, etc. on clothing and the human body. During repair, pay
attention to electrostatic breakdown and also use the procedure in the printed
matter which is included in the repair parts.
The flexible board is easily damaged and should be handled with care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on the disc
reflective surface by the objective lens in the optical pick-up block. Therefore,
when checking the laser diode emission, observe from more than 30cm away
from the objective lens.
Before Replacing the Optical pick-up Block
Please be sure to check thoroughly the parameters as per the Optical pick-
up Block Checking Procedure (Part No. : 9-960-027-11) issued separately
before replacing the optical Pick-up block.
Note and specifications required to check are given below.
- FOK output : IC601 eg pin
When checking FOK, remove the lead wire to disc motor.
- RF signal P-to-P value : 0.4 to 0.5Vp-p
SECTION 1
SERVICING NOTES
Laser Diode Checking Methods
During normal operation of the equipment, emission of the laser diode is
prohibited unless the upper panel is closed while turning ON the S801 (push
switch type).
The following two checking methods for the laser diode are operable.
Method :
Emission of the laser diode is visually checked.
1. Open the upper lid.
2. Push the S801 as shown in Fig. 1 .
3. Check the object lens for confirming normal emission of the laser diode.
If not emitting, there is a trouble in the automatic power control circuit or
the optical pick-up. During normal operation, the laser diode is turned
ON about 2.5 seconds for focus searching. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR
BASE UNIT
Fig.1 Method to push S801
