Sony d 802 k service manual

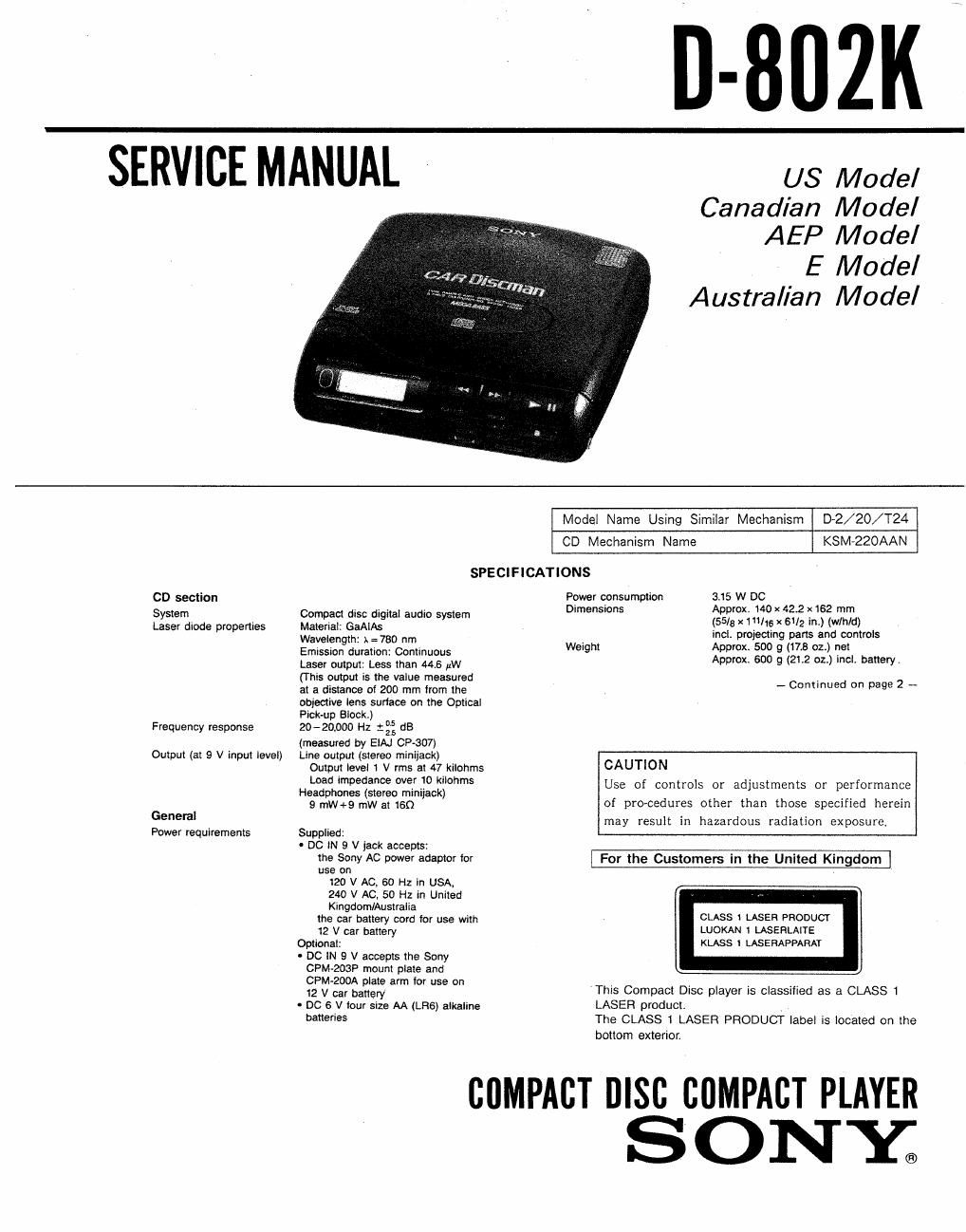

Page 1

SERVICE MANUAL *

D-802K

US Model
Canadian Model
AEP Model

E Model
Austral/an Model

CD section

System
Laser diode properties

Frequency response

Output (at 9 V input level)

General
Power requirements

Model Name Using Similar Mechanism D-2/20/T24

CD Mechanism Name KSM-ZZOAAN

SPECIFICATIONS

Compact disc digital audio system
Material: GaAIAs
Wavelength: x a 780 nm
Emission duration: Continuous
Laser output: Less than 4446 uW
(This output is the value measured
at a distance of 200 mm lrorn the
objective lens surlace on the Optical
Pick-up Block.)
2040.000 Hz :gg dB
(measured by ElAJ CP-307)
Line output (stereo minijack)
Output level 1 V rms at 47 kiiohms
Load impedance over 10 kilohms
Headphones (stereo minijack)
9 mW+9 mW at 160

Supplied:
- DC W 9 V jack accepts:
the Sony AC power adaptor lor
use on
120 V AC, 60 Hz In USA,
240 V AC, 50 Hz in United
KingddmlAustralia
the car battery cord for use with
12 V car battery

Optional:

- DC W 9 V accepts the Sony
cPM-ZOSP mount plate and
CPM-ZOOA plate arm (or use on
12 V car battery

0 DC 6 V tour size AA (LFts) alkaline
batteries

3.15 W DC

Approx. 140 x 42.2 x 162 mm

(55/5 x "the x 61/2 in.) (wlhld)

incl. projecting pans and controls
Weight Approx. 500 g (17.8 oz.) net

Approx. 600 g (21.2 oz.) incl. battery.

Power consumption
Dimensions

- Continued on page 2 -

CAUTION

Use of controls or adjustments or performance
of pro-cedures other than those specified herein
may result in hazardous radiation exposure.

[ For the Customers in the United Kingdom I

CLASS I LASER PRODUCT
LUOKAN I LASERLAITE

KLASS LASEHAPPARAT

This Compact Disc player is classified as a CLASS 1
LASER product.

The CLASS 1 LASER PRODUCT label is located on the
bottom exterior.

CBMPABT DISC CBMPACT PLAYER

SONE
