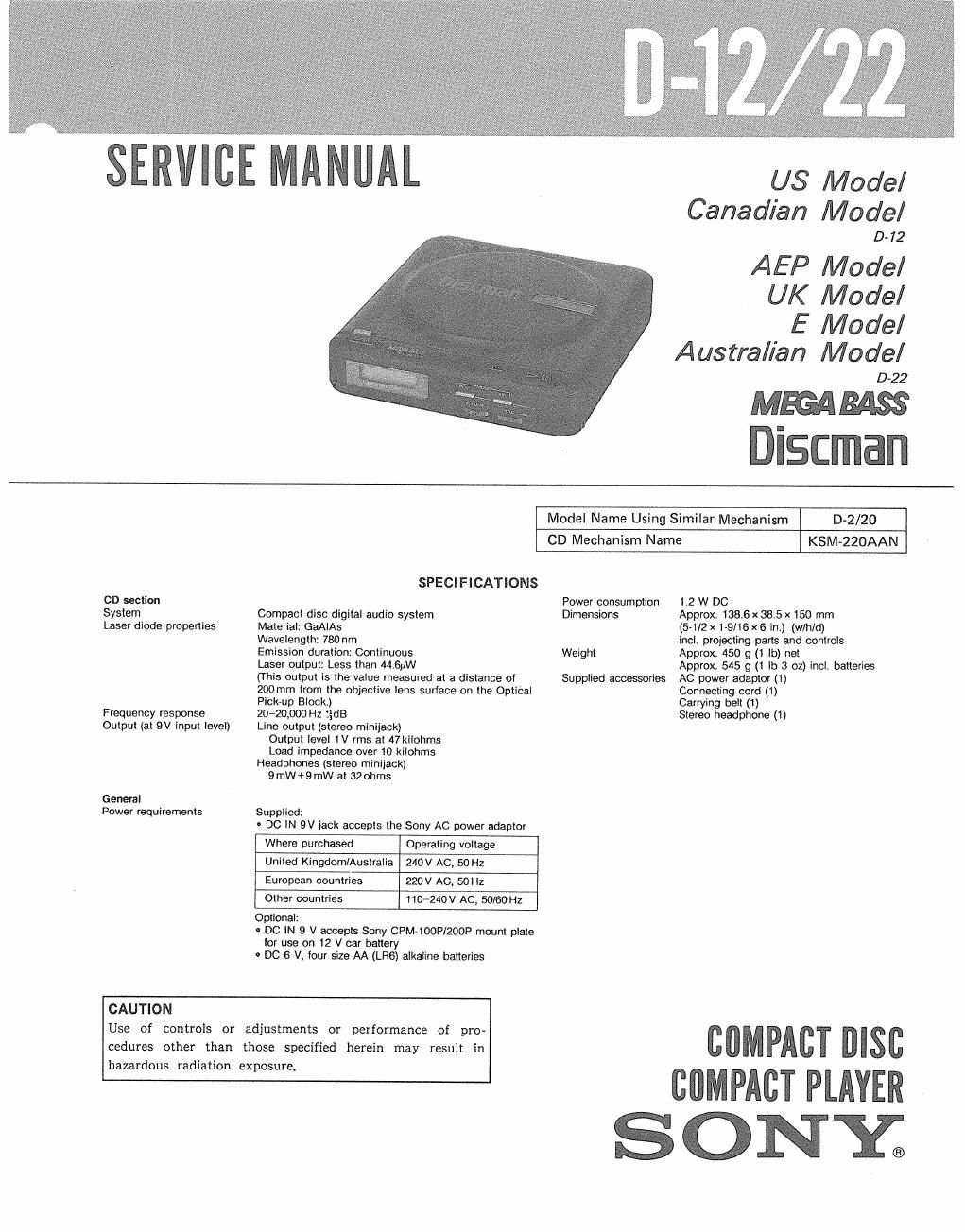

Sony d 12 service manual

Page 1

Canadian Model
0-12

AEP Model

UK Model

E Model

Australian Model

0-22

M_EG¢|BASS
Discman

00 section
System
Laser diode properties

Frequency response
Output (at 9V input level)

General
Power requirements

Model Name Using Similar Mechanism

D-2/20

CD Mechanism Name

KSM-ZZOAAN

SPECIFICATIONS
Power consumption

Compact disc digital audio system Dimensions
Material: GaAlAs

Wavelength: 780 nm

Emission duration: Continuous Weight

Laser output: Less than 44.6pw
(This output is the value measured at a distance oi
200mm trorn the objective lens surface on the Optical
Pickup Block.)
20-20,000HZ Z§dB
Line output (stereo minijack)
Output level 1V rrns at 47ki|ohrns
Load impedance over 10 kitohms
Headphones (stereo minijack)
9 mW+9 mW at £320th

Supplied accessories

Supplied:
0 DC lN 9V jack accepts the Sony AC power adaptor

Where purchased
United Kingdom/Australia

Operating voltage
240V AC, 50 Hz

220V AC, 5OHZ
110»240V AC, 50/60 HZ

European countries

Other countries

Optional:

0 DC W 9 V accepts Sony CPM-tOOPIZOOP mount plate
tor use on 12 V car battery

0 DC 6 V, tour size AA (LRS) alkaline batteries

CAUTION

Use of controls or

cedures other than those specified herein may result in
hazardous radiation exposure.

adjustments or performance of pro~

1.2 W DC

Approx. 138.6 x 355 x 150 mm

(5-1/2 x 1-9/16 x 6 in.) (wlhld)

incl. projecting pans and controls
Approx. 450 g (1 to) net

Approx. 545 g (1 lb 3 oz) incl, batteries
AC power adaptor (1)

Connecting cord (1)

Carrying belt (1)

Stereo headphone (1)

COMPACT DISC
COMPACT PLAYER

ONY;
