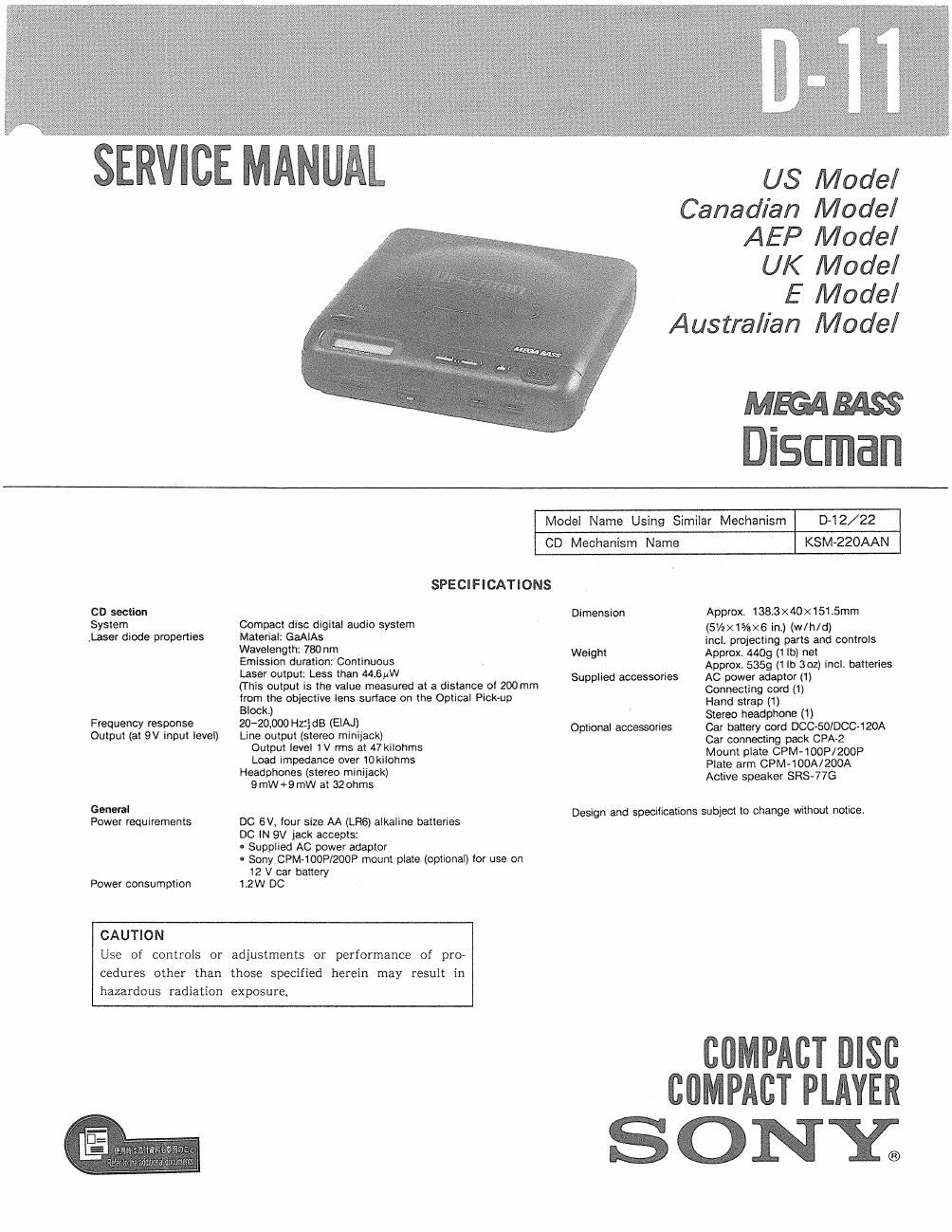

Page 1
US Model
Canadian Model
AEP Model
UK Model
E Model
Austral/an Model
MEGAMSS
Discman
CD section
System
,Laser diode properties
Frequency response
Output (at 9V input level)
General
Power requirements
Power consumption
Model Name Using Similar Mechanism D-12/22
CD Mechanism Name KSMv220AAN
SPECIFICATIONS
Compact disc digital audio system
Material: GaAlAs
Wavelength: 780nm
Emission duration: Continuous
Laser output: Less than 44,6pW
(This output is the value measured at a distance ol 200mm
from the objective lens surface on the Optical Pick-up
Block)
20-20900 HztfidB (EIAJ)
Line output (stereo minijack)
Output level 1V rms at 47kilonms
Load impedance over 10kilohms
Headphones (stereo minijack)
9mW+9mW at 320hms
DC 6V, lour size AA (LEG) alkaline batteries
DC lN 9V jack accepts:
0 Supplied AC power adaptor
' Sony CPM-iOOP/ZOOP mount plate (optional) for use on
12 V car battery
1.2W DC
CAUTION
Use of controls or
hazardous radiation
cedures other than those specified herein may result in
adjustments or performance of pro-
exposure.
Dimension Approx. 138.3X40X1515mm
(5/2><1%><6 in.) (w/h/d)
incl. projecting parts and controls
Weight Approx. 4409 (1 lb) net
Approx. 535g (1 lb 302) incl. batteries
AC power adaptor (1)
Connecting cord (1)
Hand strap (1)
Stereo headphone (1)
Car battery cord DCC~50IDCC>120A
Car connecting pack CPA-2
Mount plate CPM- IOOP/ZOOP
Plate arm CPM-lOOA/ZOOA
Active speaker SRS»77G
Supplied accessories
Optional accessories
Design and specifications subject to change without notice,
CUMPACT DISC
CUMPACT PLAYER
SONE
Page 2
S
ection
TABLE OF CONTENTS
Title Page Section Title Page
Specifications ..................................................................... 1 4' DIAGRAMS
. 4-1 Semiconductor Lead Layouts ~~~~~~~~~~~~~~~~~~~~~~~~~~~~ l3
1_ GENERAL ................................................................... 2 4.2 Printed Wiring Boardsm' .. 13
4-3 Schematic Diagram~~~ 17
2. SERVICING NOTESw- ...3 44. 1C Block Diagram- ~~~21
Rack Assy Installing Procedure
5. EXPLODED VIEWS .................................................. 23
3. ELECTRICAL ADJUSTMENTS
6. ELECTRICAL PARTS LIST ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 26
SECTION 1
GENERAL
LOCATION AND FUNCTION OF CONTROLS
Disc window
|« DH (AMS*ISearch)
buttons
OPEN button
Display window
HOLD/ RESUME
switch
VOLUME control
(tor headphones listening)
ENTER button
LINE OUT jack
(stereo minijack)
DC IN ,9V (external power
input) jack
Lens
The laser beam is emitted from this point
to pick-up signal on the disc.
Battery compartment lid
BASS BOOST
switch
PHONES (headphones)
jack
(stereo mlnijack)
>II (play/pause) button
PLAY MODE button
LOCK switch
