sony cxs gt 07 hp service manual

Extracted text from sony cxs gt 07 hp service manual (Ocr-read)


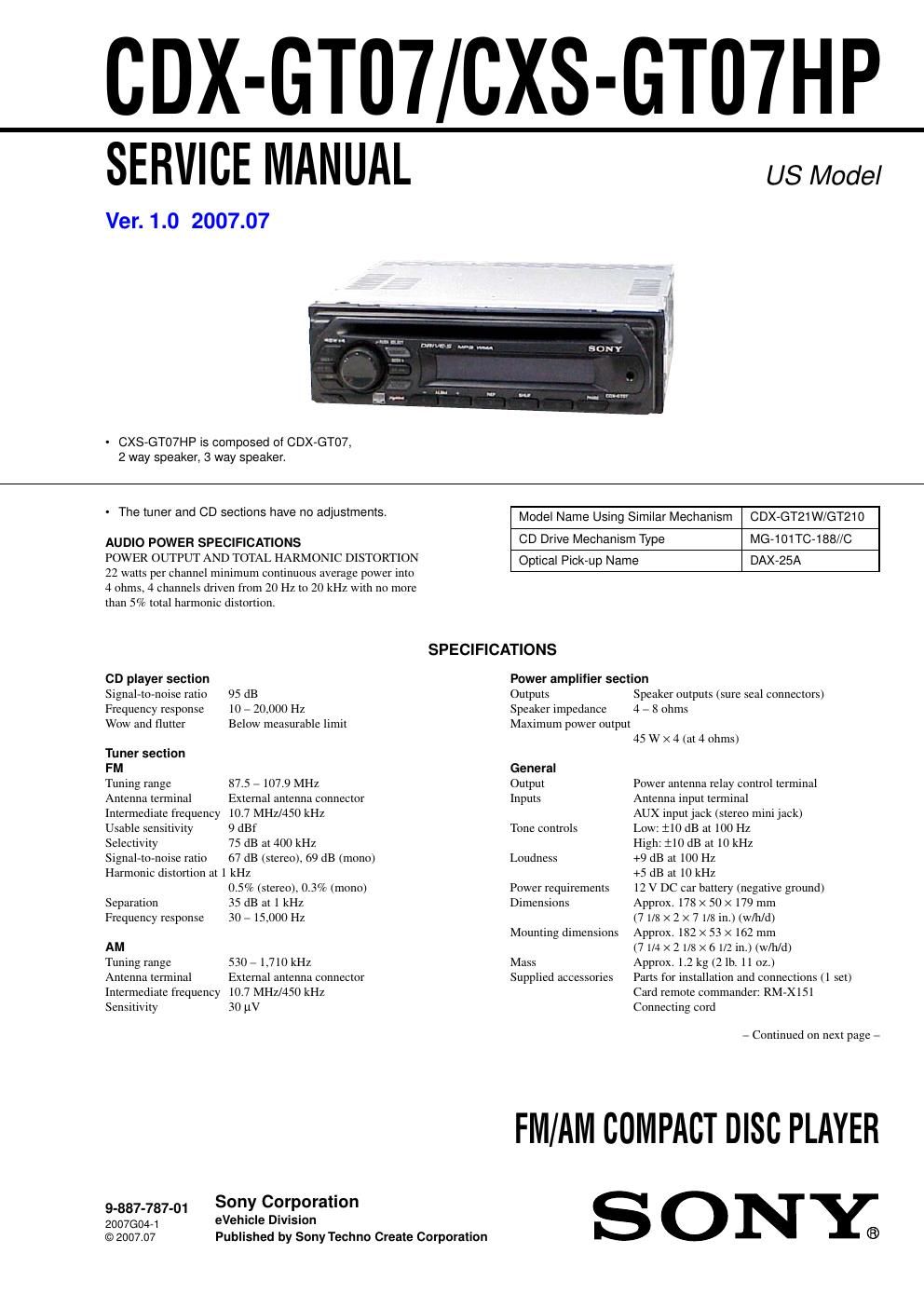

Page 1

2 CDX-GT07/CXS-GT07HP SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 6 × 9 Speaker (3-way Speaker) Speaker Coaxial 3-way: W oofer 16 × 24 cm (6 3/8 × 9 1/2 in), cone type Midrange 5.5 cm (2 1/4 in), cone type Tw eeter 1.4 cm ( 9/16 in), balanced dome type Peak power 300 W Rated power 60 W Impedance 4 -„¦ Sensitivity 93 dB/W/m Frequency response 27 -“ 30,000 Hz Mass Approx. 1,150 g (2 lb 9 oz) per speaker Supplied accessory Parts for installation 6 1/2 Speaker (2-way Speaker) Speaker Coaxial 2-way: Woofer 16 cm (6 3/8 in), HOP, cone type Tw eeter 4 cm (1 5/8 in), Al, cone type Peak power 190 W Rated power 40 W Impedance 4 -„¦ Sensitivity 90 dB/W/m Frequency response 35 -“ 22,000 Hz Mass Approx. 560 g (1 lb 4 oz) per speaker Supplied accessory Parts for installation Design and specifications are subject to change without notice. Dimensions Unit: mm (in) 4.5 × 7.5 ( 3/16 × 5/16) 166 (6 5/8) 117 (4 5/8) 222 (8 3/4) ø 80 (3 1/4) 16 (21/32) 75 (3) 194 (7 3/4) 264 (10 1/2) 35 (1 7/16) 6 × 9 Speaker 6 1/2 Speaker ø 125 (5) ø 75 (3) ø 158 (6 1/4) 44 (1 3/4) 8.9 ( 3/8) 5 (7/32) ø 5 ( 7/32) 27 (1 1/8) ø 168 (6 3/4) ø 142 (5 5/8) 153 (6 1/8) 168 (6 5/8) 237 (9 3/8) 2.5 (1/8)

Page 2
