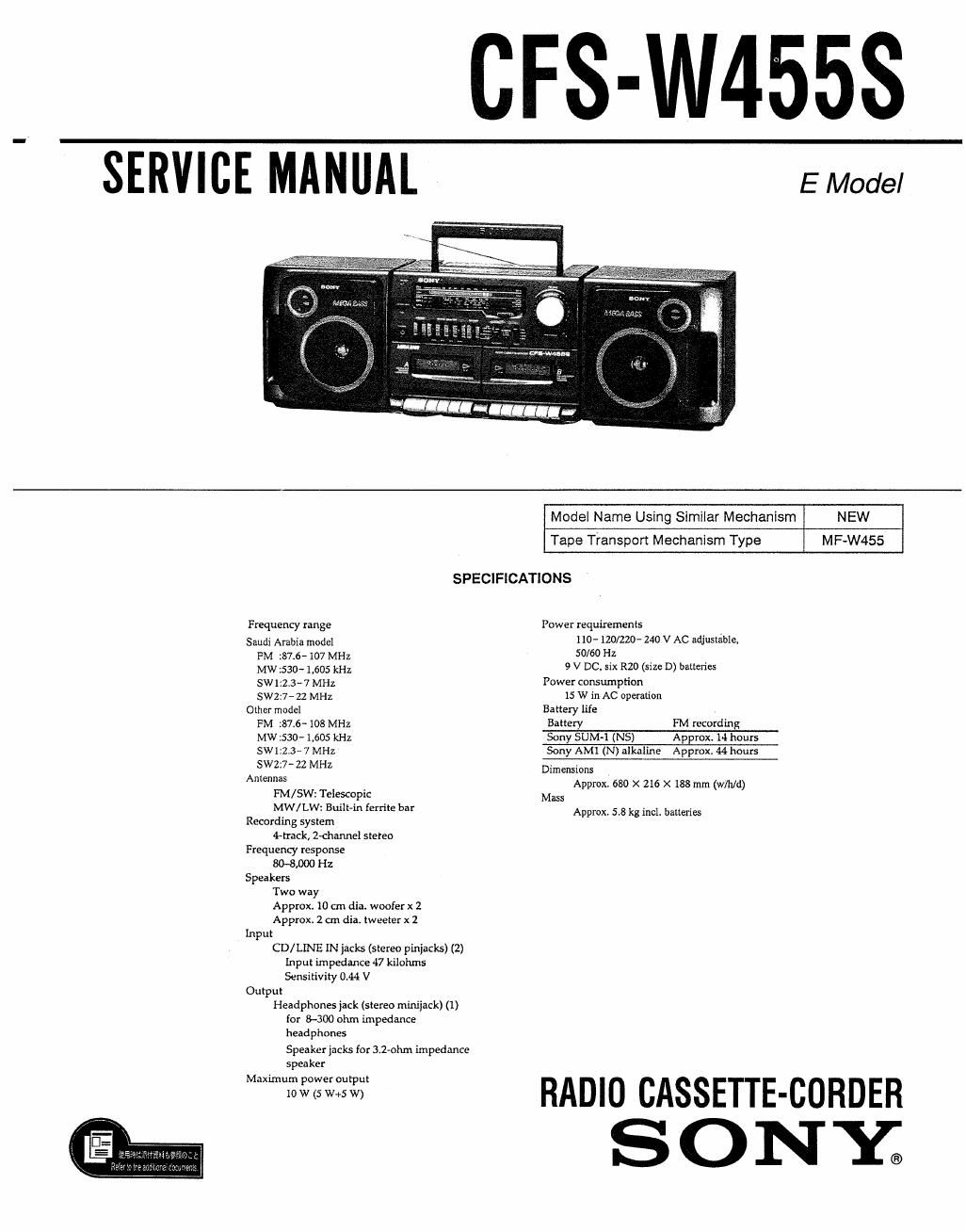

Sony cfs w 455 s service manual

Page 2

TAB LE OF CONTENTS

Section M Page
Specifications .................................. 1
1. GENERAL ............................. 3
2. DISASSEMBLY ......................... 4
3. ADJUSTMENTS
3 1. Mechanical Adjustments ------------------ 5
32 Electrical Adjustments
Tape Section .......................... 6
Tuner Section ......................... 8
4. DIAGRAMS
4.1 Block Diagram ........................... 10
424 Printed Wiring Boards ..................... 12
4-3, Schematic Diagram ....................... 15
5. EXPLODED VIEWS .................... 19
6. ELECTRICAL PARTS LIST ~~~~~~~~~~~~ 24

COMPONENTS IDENTIFIED BV MARK A OR DOTTED
A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-

LINE WITH MARK

OPERATION.

SAFETY-R E LATEO COMPONENT WARNING! !

LISH ED 8V SONY.
