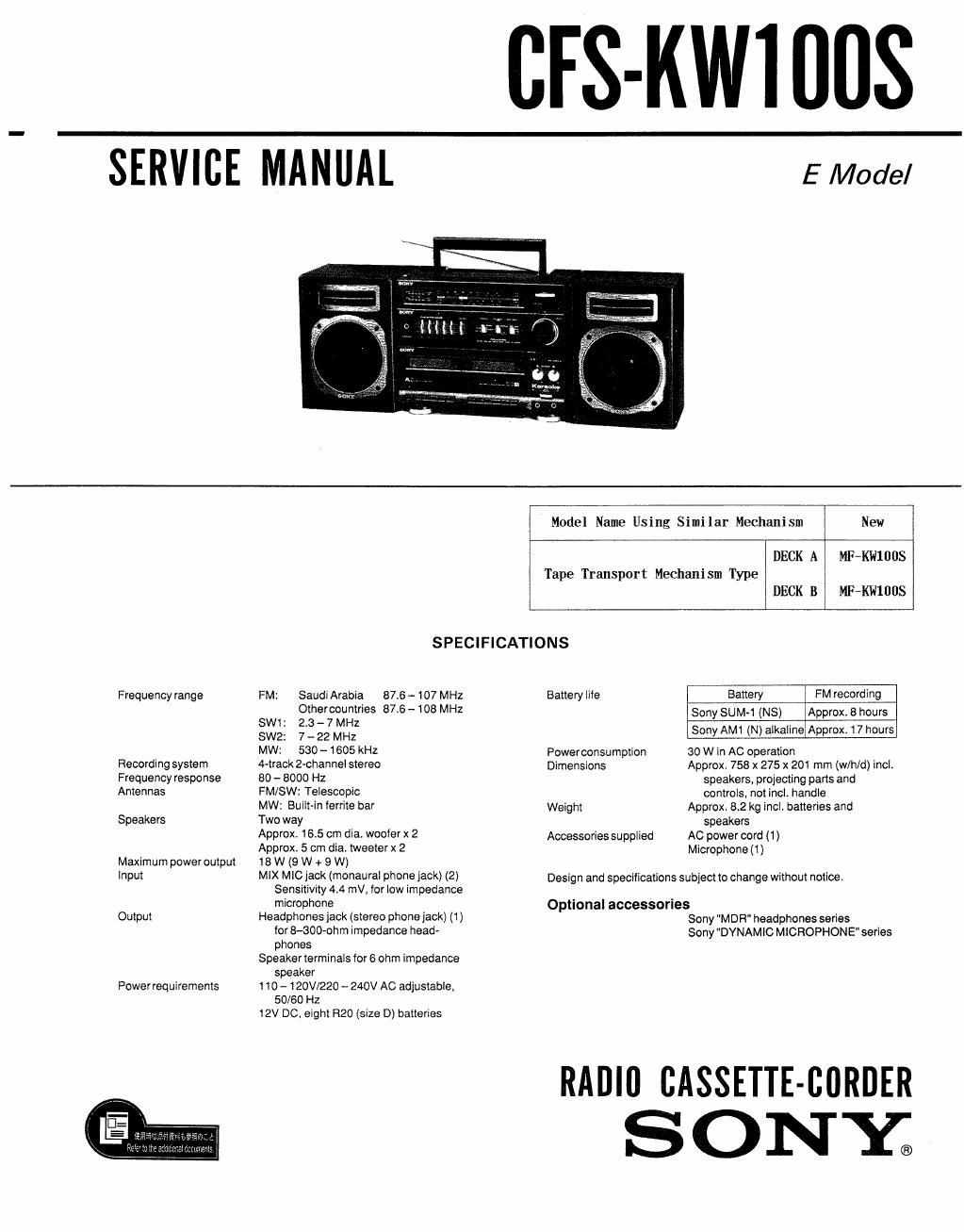

Page 1

CFS-KWIIIIIS

SERVICE MANUAL

E Model

Frequency range

Recording system
Frequency response
Antennas

Speakers

Maximum power output
Input

Output

Powerrequirements

SPECIFICATIONS

FM: Saudi Arabia 67,6 ~ 107 MHz
Othercountries 87.6 - 108 MHz

SW1: 2,3- 7 MHz

SW2: 7 - 22 MHZ

MW: 530 -1605 kHz

4~track 2-channel stereo

80 - 8000 HZ

FM/SW: Telescopic

MW: Built-in ierrite bar

Two way

Approx. 165 cm dia. woofer x 2

Approx. 5 cm dia, tweeter x 2

18 w (9 w + 9 W)

MIX MIC iack (monaural phone jack) (2)
Sensitiwty 4.4 mV, for low impedance
microphone

Headphonesjack (stereo phone jack) (1)
for 8-300-ohm impedance head-
phones

Speaker terminals tor 6 ohm impedance
speaker

110 -12OV/220 ~24OV AC adjustable,
50/60 Hz

12V DC, eight R20 (size D) batteries

Model Name Using Similar Mechanism New
DECK A MF~KW100$
Tape Transport Mechanism Type
DECK B MF-KWIIJOS
Battery life Battery FM recording
Sony SUM-1 (NS) Approx 8 hours
Sony AMI (N) aikaline Approx 17 hours
Poweroonsumption 30 W in AC operation
Dimensions Approx, 758 x 275 x 201 mm (w/h/d) inclr
speakers. projecting parts and
controls. not incl. handle
Weight Approx, 82 kg inci. batteries and

Accessories su ppiied

speakers
AC power cord (1)
Microphone)

Design and specifications subject to change without notice.

Optional accessories

Sony "MDR" headphones series
Sony "DYNAMIC MICROPHONE" series

RADII] CASSETTE-CBRDER

SONY;

Page 2

CFS-KW1OOS

TABLE OF CONTENTS

Section Title

Specifications

. GENERAL
Parts Identification

. DISASSEMBLY

Dial Pointer Installation

. ADJUSTMENTS

3-1MECHANICAL ADJUSTMENTS
3-2ELECTRICAL ADJUSTMENTS

. DIAGRAMS

10 Block diagrams A .4 .. ~
4-1.Printed Wiring Boards
4-2.Schematic diagram

Semiconductor Lead Layouts
.EXPLODEDVIEWS-----------------v--~-----~-------------

. ELECTRICAL PARTS LIST

*MODEL IDENTIFICATION -

(Specification label)

SONY

RADIO CASSETTE-CORDER
AC:110-120/220-240V ~50/60Hz
DC:12V FLASHLIGIIT BATTERY
R20 SIZE D X 8 0R EQUIVALENT

MODEL NO. CFS-KWIOOS

E12,E23 modeltflADE IN KOREA

UNDER LICENSE FROM
SONY CORP.I0I(YO JAPAN

UAE,EA model:SONY CORP.

E12:A0220-240V area model
E231A0110~120V area model
UAE:United Arab Emirates model
EA:Saudi Arabia model

Page

UI

-- --11
15
~19

-2O

26

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB~
LISHED BY SONY.
