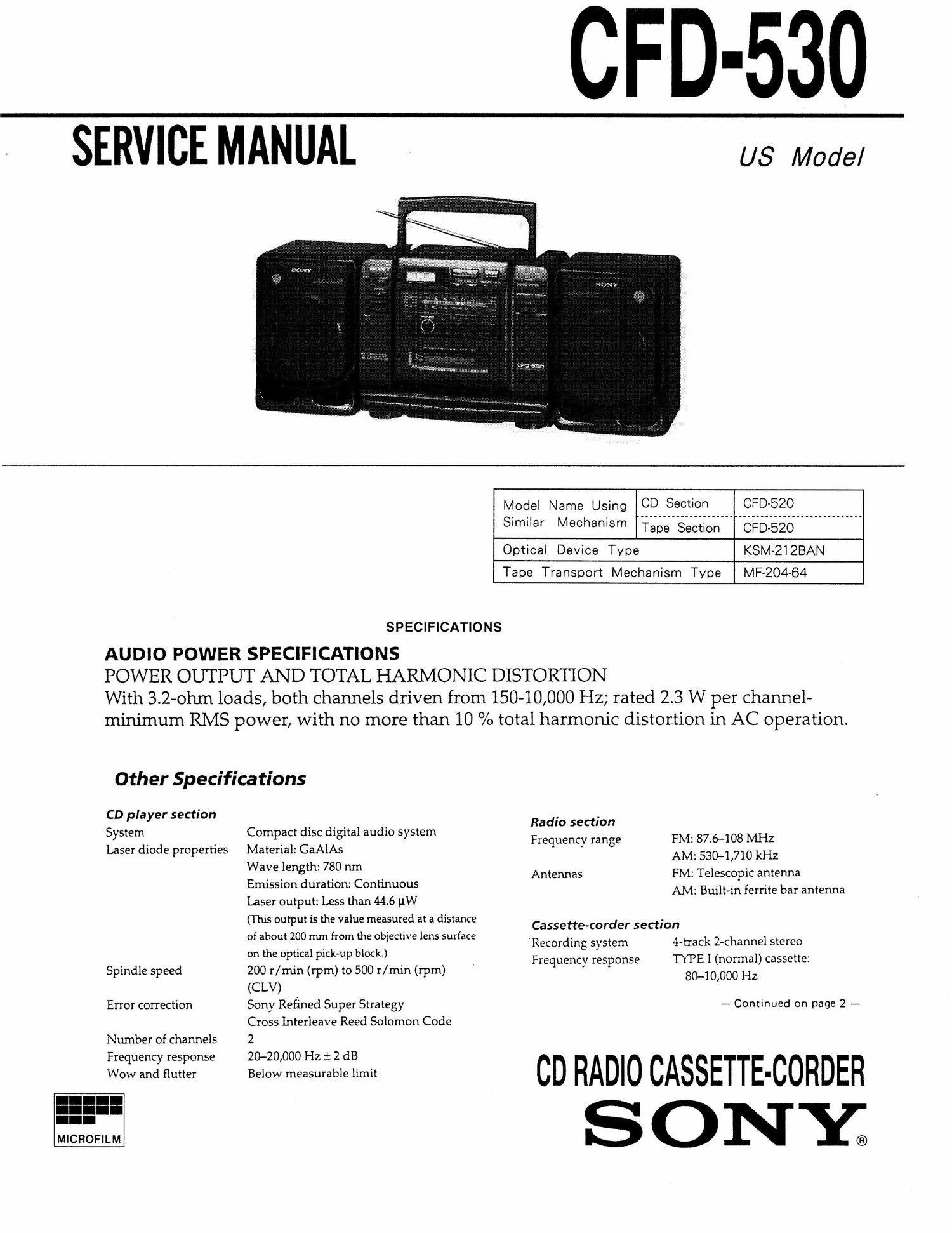

Page 1

SERVICE MANUAL

CFD-530

US Model

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION

With 3.2-ohrn loads, both channels driven from 150-10,000 Hz; rated 2.3 W per channel-
miru'murn RMS power, with no more than 10 % total harmonic distortion in AC operation.

Other Specifica tions

CD player section
System
Laser diode properties

Spindle speed
Error correction
Number of channels

Frequency response
Wow and flutter

MICROFILM

Compact disc digital audio system
Material: CaAlAs

Wave length: 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 uW

(This output is the value measured at a distance
of about 200 mm from the objective lens surface
on the optical pick-up block.)

200 r/ min (rpm) to 500 r/ min (rpm)
(CLV)

Sony Refined Super Strategy

Cross Interleave Reed Solomon Code

2

20-20000 Hz i 2 dB

Below measurable limit

Model Name Using CD Section CFO-520

...................................................

Similar Mechanism Tape Section CFD-520

Optical Device Type KSMZI 2BAN

Tape Transport Mechanism Type MF-204-64

Radio section

Frequency range FM: 87.6-108 MHz
AM: 530-1,710 kHz
Antennas FM; Telescopic antenna

AM: Built-in ferrite bar antenna

Cassette~corder section

Recording system 4-track 2-channel stereo
Frequency response I YPE I (normal) cassette:
80-10000 Hz

- Continued on page 2 -

cn RADIO CASSETTE-CORDER
S O NY®

Page 2

General
Speaker

Inputs

Outputs

Power requirements

Power consumption
Battery life

Sony SUM-1 (NS)
Sony Alkaline AMI

approx. 15 h
approx. 40 h

Woofer: 10 cm dia., 3.2 ohms
cone type
Tweeter: 3 cm
Mixing microphone input jack
(minijack):
Sensitivity 2.75 mV
For low impedance microphone
Headphones jack (stereo minijack)
For 16-68 ohms impedance
headphones
Speaker terminals
For supplied 3.2 ohms impedance
speaker

120 V AC, 60 Hz

DC 9 V, 6 size D (R20) batteries
AC 20 W

For CD radio cassette~corderz

FM recording Tape playback CD playback

approx. 16 h approx. 8 h

approx. 44 h approx. 20 h

0 HOW TO CHANGED THE CERAMIC FILTERS

This model is used three ceramic filters of CF1,.CF4 and CF3.
You must used same type of color marked ceramic filters in
order to meet same specifications.

Therefore, the ceramic filter must changed three pieces
together since its supply three pieces in one package as

a spare parts.

mark mak Mark frggsei'cy
7/ ' red 10.70MHZ
CF1, 4 blue 10.67MHz
orange 10.73MHz

black 10.64MHZ

white 10.7 6MHz

Dimensions

Mass
Supplied accessories

For remote commander:

approx. 6 months
Approx. 637 x 247 x 206 mm (w/h/d)
(25% X 93/4 x 8% in.) incl. projecting parts
5.9 kg (13 lb) (incl. batteries)
AC power cord (1)
Remote commander RMT-C53O (1)

Design and specifications subject to change without notice.

Optional accessories

Sony DYNAMIC MICROPHONE series
Sony MDR stereo headphone series

CAUTION

Use of controls or adjustments or performance
of procedures other than those specified herein
may result in hazardous radiation exposure.

Flexible Circuit Board Repairing

0 Keep the temperature of the soldering iron around
270°C during repairing.

0 Do not touch the soldering iron on the same conduc-

tor of the circuit board (within 3times).
0 Be careful not to apply force on the conductor when
soldering or unsoldering.

Notes on chip component replacement

0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor
may be damaged by heat.
