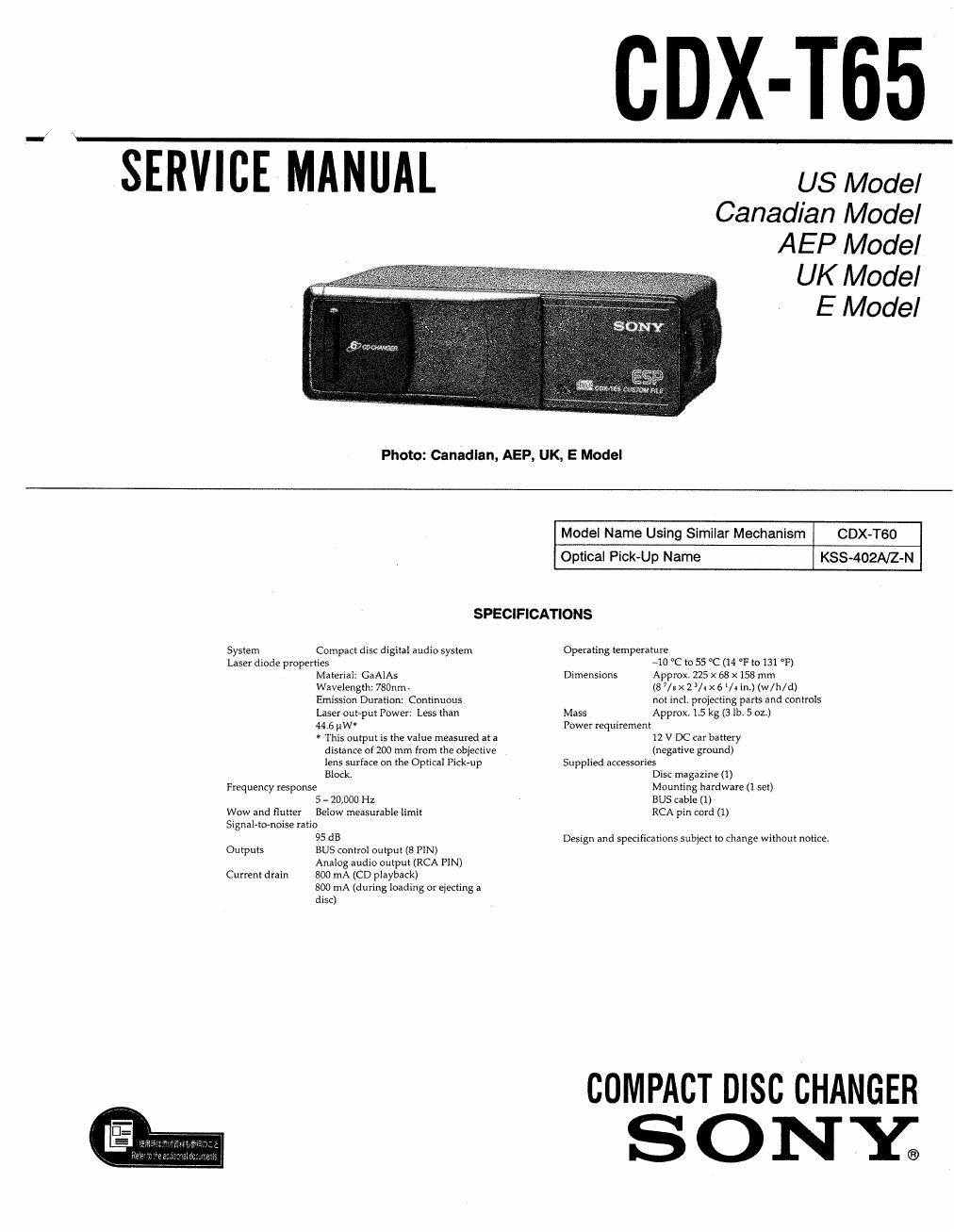

Page 1

CDX-T65

SERVICE MANUAL

US Model
Canadian Model
AEP Model

UK Model
E Model

Photo: Canadian, AEP, UK, E Model

Model Name Using Similar Mechanism CDX-T60

Optical PickrUp Name KSS-402A/Z-N

SPECIFICATIONS

System Compact disc digital audio system
Laser diode properties

Material: GaAlAs

Wavelength: 780nm.

Emission Duration: Continuous

Laser out-put Power: Less than

446 u w*

' This output is the value measured at a
distance of 200 mm from the objective
lens surface on the Optical Pick-up
Block.

Frequency response
5 - 20,000 Hz
Wow and flutter Below measurable limit
Signal-to-noise ratio
95 dB
Outputs BUS control out-put (8 PW)
Analog audio output (RCA PIN)
Current drain 300 mA (CD playback)

800 mA (during loading or ejecling a

disc)

Operating temperature

~10 °C to 55 °C (14 °F10131 °F)
Dimensions Approx 225 x as x 158 mm

(8 7/8 X 2 3It X 6 '/4 in.) (w/ll/d)

not incl, projecting parts and controls
Mass Approx. 15 kg (3 lb. 5 oz.)
Power requirement

12 v Dc car battery

(negative ground)
Supplied accessories

Disc magazine (1)

Mounting hardware (1 set)

BUS cable (1)

RCA pin cord (1)

Design and specifications subject to change without notice.

COMPACT DISC CHANGER
ONYa

Page 2

TABLE OF CONTENTS

I . GENERAL

Installation 3

Connections 4
2. DISASSEMBLY ......................... 6
3. INSTALLATION ------------------------ 12
4. MECHANICAL ADJUSTMENTS ~~~~~~~~ 13
5. ELECTRICAL ADJUSTMENTS ~~~~~~~~~~ 15
6. DIAGRAMS
6-1. IC Pin Function Description --------------- 16
6-2. Printed Wiring Boards -------------------- 19
6-3. Schematic Diagram ---------------------- 23
7. EXPLODED VIEws .................... 31
8. ELECTRICAL PARTS LIST ~~~~~~~~~~~ 36

Flexlble Clrcult Board Repalrlng

0 Keep the temperature of the soldering iron around
270°C during repairing.

0 Do not touch the soldering iron on the same conductor
of the circuit board (within 3 times).

0 Be careful not to apply force on the conductor when
soldering or unsoldering.

Notes on chlp component replacement

0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may
be damaged by heat,

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY MARK A OR DO'I'I'ED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA sécunrrét

Les composmrs IDENTIFIES PAR UNE MAROUE A
sun LES DIAGRAMMES SCHEMATIQUES e1 LA LISTE
Des PIEces sONT camoues POUR LA sEcunrre
DE FONCTIONNEMENT. NE REMPLACEFI ces com-
POSANTS oue PAR Des PIECES sonv DONT LES
NUMEROS sour DONNES DANS ce MANUEL ou
DANS Les SUPPLEMENTS PUBLIES PAR sonv.

SERVICING NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick»up block may suffer
electrostatic breakdown because of the potential difference
generated by the charged electrostatic load, etc. on clothing
and the human body.

During repair, pay attention to electrostatic breakdown and
also use the procedure in the printed matter which is
included in the repair parts.

The flexible board is easily damaged and should be handled
with care

Laser Diode Properties

0 Material: GaAlAs

o Wavelength: 780 nm

0 Emission Duration: continuous

0 Laser Output Power: less than 44.6 u W"

* This output is the value measured at a distance of

200 mm from the objective lens surfase on the
Optical Pick-up Block.

CAUTION

Use of controls or adjustments or performance
of procedures other than those specified herein
may result in hazardous radiation exposure.

DISC MAGAZINE GEITING OUT PROCEDURE
ON THE POWER SUPPLY IS OFF

Remove the CASE (UP) assembly beforehand

1) Press the arm (M lock) assy to arrow direction.
2) Removal the magazine assy.

Note: Take out the magazine only when the tray is
completely within the magazine. If the disk or tray
is sticking out, turn on the power and eject the
magazine.

Magazine assy

Arm (M lock) ass'y
