Sony cdx r 5515 x service manual

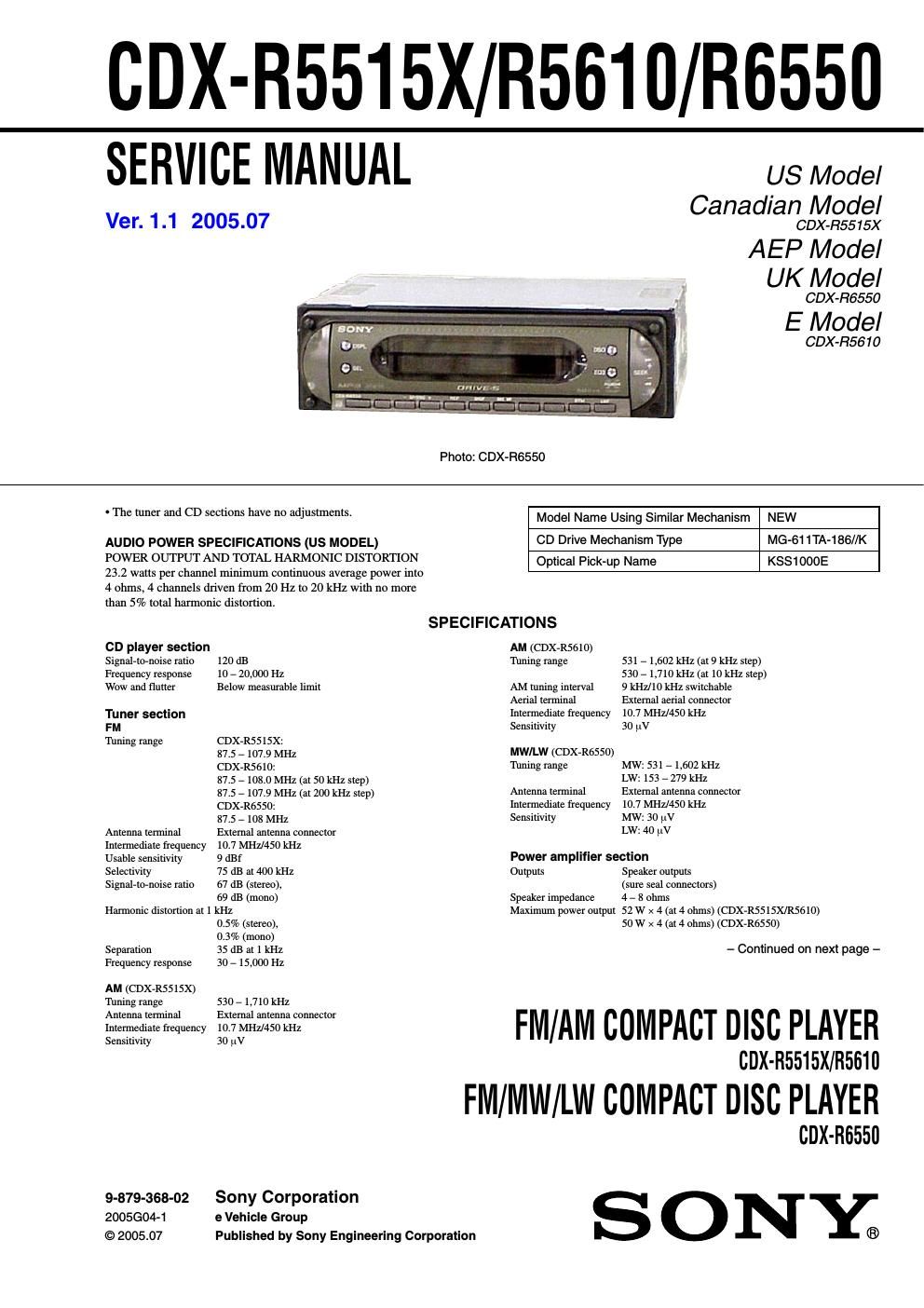

Page 1

2 CDX-R5515X/R5610/R6550 If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick-up block. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. GeneralOutputs Audio outputs terminal (front, sub/rear switchable) Subwoofer output terminal (mono) (CDX-R5515X)Power antenna relay control terminalPower amplifier control terminal Inputs Telephone ATT control terminal Illumination control terminalBUS control input terminalBUS audio input terminal (CDX-R5610/R6550)Remote controller input terminalAntenna input terminal Tone controls CDX-R5610/R6550: Low: ±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD) Power requirements 12 V DC car battery (negative ground) Dimensions Approx. 178 × 50 × 182 mm (7 1/8 × 2 × 7 1/4 in.) (w/h/d) Mounting dimensions Approx. 182 × 53 × 161 mm (7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d) Mass Approx. 1.2 kg (2 lb. 10 oz.) Supplied accessories Parts for installation and connections (1 set) Front panel case (1)Card remote commander RM-X151 US and foreign patents licensed from Dolby Laboratories. NoteThis unit cannot be connected to a digital preamplifier or an equalizer which is SonyBUS system compatible. Design and specifications are subject to change withoutnotice. SERVICE NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. Notes on Chip Component Replacement -N ever reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. TEST DISCS This set can playback CD-R and CD-ROM discs. The following test discs should be used to check the capability: CD-R test disc TCD-R082LMT (Part No. J-2502-063-1) CD-RW test disc TCD-W082L (Part No. J-2502-063-2) - CDX-R5610/R6550 model This label is located on the bottom of the chassis. optical pick-up semi-fixed resistor ATTENTION AU COMPOSANT AYANT RAPPORT Ã- LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONTCRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NEREMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONYDONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OUDANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

Page 2

3 CDX-R5515X/R5610/R6550 -CD Playback: You can play CD-DA (also containing CD TEXT* 1), CD-R/CD- RW (MP3 files also containing Multi Session and ATRAC CD (ATRAC3 and ATRAC3plus format). Type of discs Label on the disc CD-DA MP3 ATRAC CD *1 A CD TEXT disc is a CD-DA that includes information such as disc, artist and track name. EXTENSION CABLE AND SERVICE POSITION When repairing or servicing this set, connect the jig (extension cable) as shown below. -Connect the MAIN board (CN350) and the SERVO board (CN2) with the extension cable (Part No. J-2502-076-1). z UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. SERVO BOAR D CN2 MAIN BOARDCN350 J-2502-076-1
