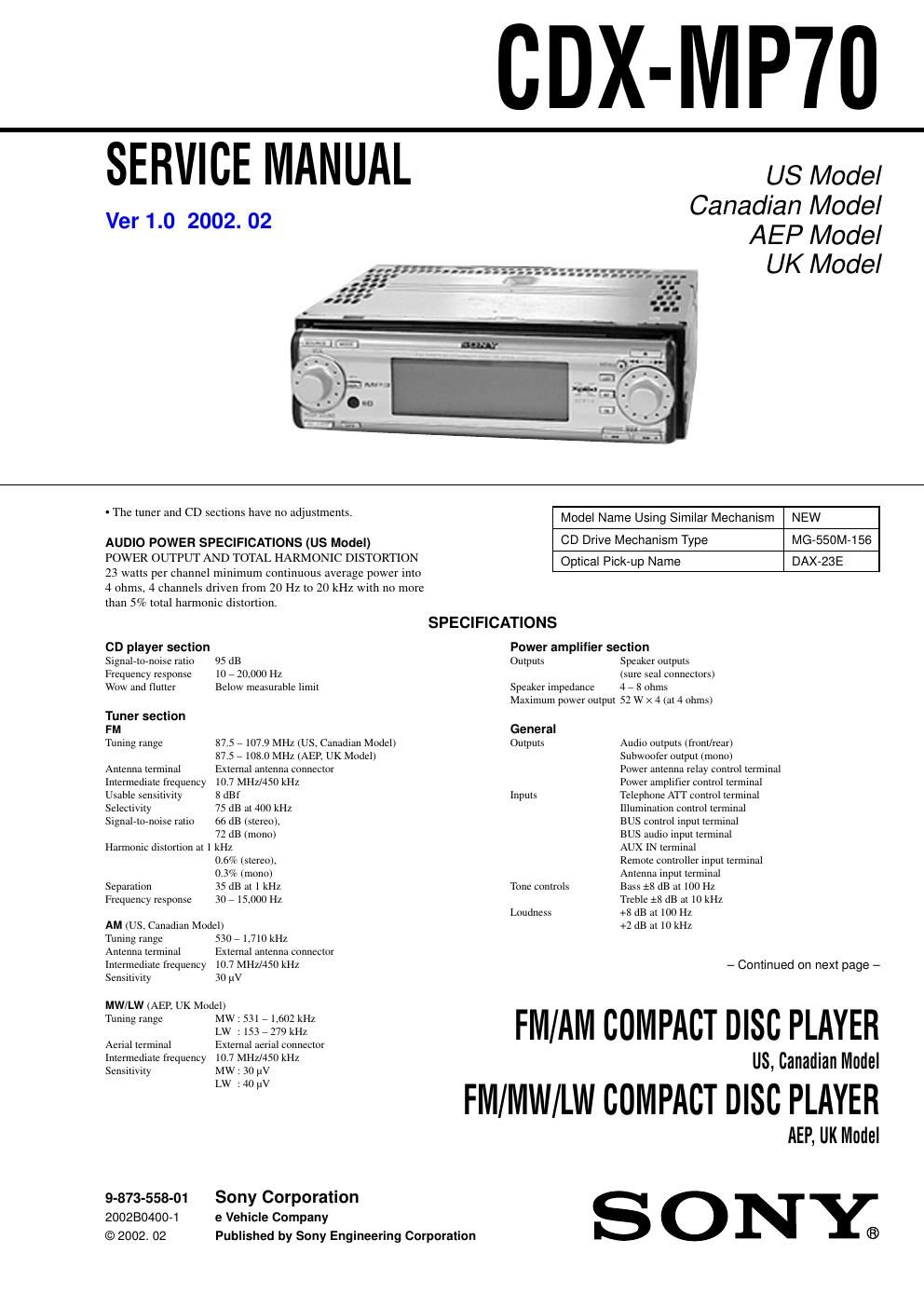

Page 1

CDX-MP70

SERVICE MANUAL us Model

Canadian Model
AE P Model
;}}-ffxlr:-.:.. . UK Model

Ver 1.0 2002. 02

- The tuner and CD Sections have no adjustments. Model Name Using Similar Mechanism NEW
AUDIO POWER SPECIFICATIONS (us Model) CD Drive Mechanism Type MG-550M-156
POWER OUTPUT AND TOTAL HARMONIC DISTORTION Optical Pick-up Name BAX-23E

23 watts per channel minimum continuous average power Into
4 ohms. 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.

SPECIFICATIONS
CD player section Power amplifier section
Signalrtornoise ratio 95 dB Outputs Speaker outputs
Frequency response 10 , 20,000 Hz (sure seal connectors)
Wow and flutter Below measurable IiInII Speaker Impedance 4 , 8 oth

Maximum power output 52 W X 4 (at 4 oluus)
Tuner section

FM General
Tunlng range 87.5 7 107.9 MHZ (US. Canadian Model) Olupuls Audlo outputs (front/rear)

87.5 , 108.0 MHz (AEP, UK Model) Subwoofet output (mono)
Antenna terminal External antenna Connector Power antenna relay control terminal
Intermediate frequency 10.7 MHZ/450 kHz Power amplifier Control terminal
Usable sensitivity 8 dBf Inpuls Telephone ATT Control terlninal
Selectlylly 75 dB at 400 kHz Illumination Control terminal
Signalrtoenoise ratio 66 dB (Stereo), BUS Control Input terminal

72 dB (mono) BUS audio input terminal
Harmonic dislorlion at 1 kHz AUX IN terminal

0.6% (stereo) Remote controller Input terminal

0.3% (mono) Antenna input terminal
Separation 35 dB at 1 kHz Tone Controls Bass :8 dB at 100 HZ
Frequency response 30 , 15.000 Hz Treble :8 dB at 10 kHz

Loudness +8 dB at 100 HZ

AM (US, Canadian Model) +2 dB at 10 kHz
Tunlng range 53071.710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz - Continued on next page -
Sensitivity 30 av

MW/LW (AER UK Model)

143212119633? FM/AM COMPACT DISC PLAYER

Aerial terminal External aerial connector
Intermediate frequency 10.7 MHz/450 kHz '
Sensitivity MW: 30 av US calladlall MOIIEI

V FM/MW/LW COMPACT DISC PLAYER

AEP, UK Model

9-873-558-01 Sony Corporation
2002B0400-1 e Vehicle Company
© 2002. 02 Published by Sony Engineering Corporation ®

Page 2

CDX-MP70

Power requirements 12 v DC car battery
(negative ground)
Approx. 1721 X 50 X 182 mm
(7 1/8 X 2 X 7 l/-IIH.)(W/l1/d)
Mounting dimensions Approx. 182 X 53 x 151 mm
(7 1/4 X 21/11 X 6 Us In.) (w/h/d)
Mass Approx. 1 6 kg
(3 lb. 9 02)
Parts for Installation and connections (1 set)
Front panel case (1)
Card remote commander RMer 12
(us, Canadian Model)

Dimensions

Supplied accessories

Note

This mm cannot be connected to a digital preamplifier or an equalizer,

Design (11111 tszi/it'ztlmm m nib/m 10 change wulmm
)lllllte.

SERVICE NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pickiup block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.

The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick,
up block. Therefore, when checking the laser diode emission, ob
serve from more than 30 cm away from the objective lens.

Notes on Chip Component Replacement

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be damA
aged by heat.

0 AEP, UK model

CLASS 1

LASER PRODUCT

This label is located on the bottom of the chassis.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
DO NOT STARE INTO BEAM 0B
VIEW DIRECTLY WITH OPTICAL INSTRUMENTS

This label is located on the drive units internal ch

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

If the optical pickAup block is defective, please replace the whole
optical pick-up block.

Never turn the semiiflxed resistor located at the side of optical
pick-up block.

optical pick-up block

semi-fixed resistor

TEST DISCS
Thi 'et can playback CDAR and CDEROM discs. The following
test d1 should be used to check the capability:

CD-R test disc TCDVROSZLMT (Part No. J-2501-063-l)
CDERW test disc TCD7W082L (Part No. 1725010632)

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITEN

LEs COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR LES
DIAGRAMMES SCHEMATIQUES ET LA LISTE DES PIECES
SONT CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMERos SONT DONNES DANS CE MANUEL
0U DANS LES SUPPLEMENTS PUBLIES PAR SONY.
