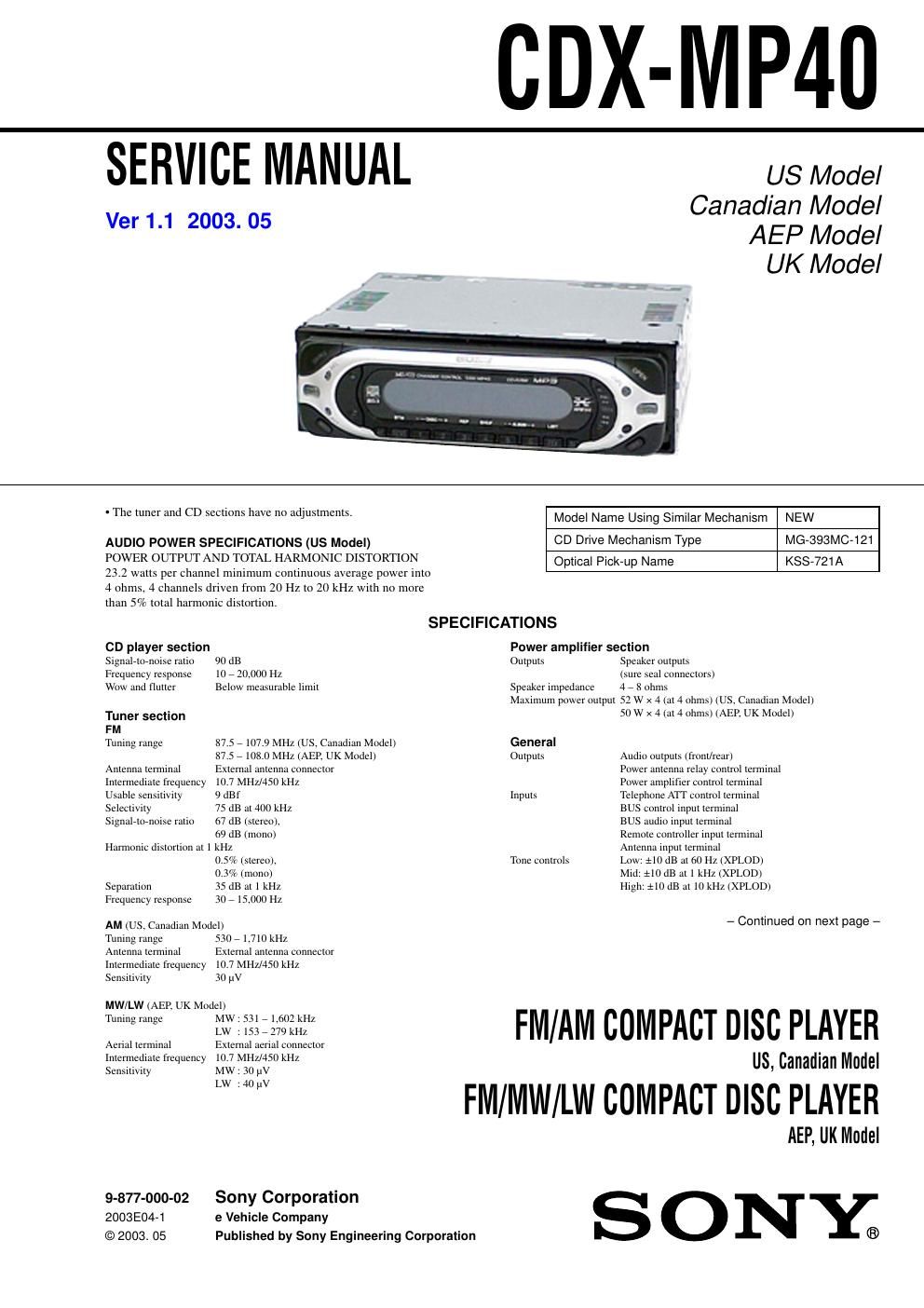

Page 1

CDX-MP40

SERVICE MANUAL us Model

Canadian Model
AEP Model
UK Model

Ver 1.1 2003. 05

- The tuner and CD Sections have no adjustments. Model Name Using Similar Mechanism NEW
AUDIO POWER SPECIFICATIONS (us Model) CD Drive Mechanism Type MG-393MC-121
POWER OUTPUT AND TQTAL HARMONIC DISTORTION Optical Pick-up Name KSS-721 A

23.2 watts per channel Inlnlmum connnuouS average power Into
4 ohms. 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.

SPECIFICATIONS
CD player section Power amplifier section
Signaletoenoise ratio 90 dB outputs Speaker outputs
Frequency response 10 7 20,000 Hz (sure seal connectors)
Wow and flutter Below measurable liInII Speaker Impedance 4 e 8 ohms
Maximttm power output 52 w x 4 (at 4 ohms) (US, Canadian Model)

Tuner section 50 w x 4 (at 4 ohms) (AER UK Model)
FM
Tunmg range 37.5 7 107.9 MHz (US. Canadian Model) General

37.5 7 108.0 MHz (AEP, UK Model) Outputs Audro otttputs tfrontJrear)
Antenna terminal External antenna connector Power antenna relay control terminal
Intermediate frequency 10.7 MHz/450 kHz Power amplifier control terminal
Usable sensitiyity 9 dBf Inputs Telephone ATT control terminal
Selectwtly 75 dB at 400 kHz BUS control Input terminal
Signaletoenoise ratio 57 dB (stereo), BUS audio input terminal

69 dB (mono) Remote controller input terminal
Harmonic distortion at 1 kHz Antenna input terminal

0.5% (stereoL Tone controls Low :10 dB at 60 Hz (XILOD)

0.3% (mono) Mid e10 dB at 1 kHz (XPLOD)
Separation 35 dB at 1 kHz .e10 dB at 10 kHz (XPLOD)
Frequency response 30 7 15000 Hz
AM (US, Canadian Model) Contlnued on next page
Tunmg range 530 7 1,710 kHz
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 nv

MW/LW (AER UK Model)

3322:2633? FM/AM COMPACT DISC PLAYER

Aerial terminal External aerial connector
Intermediate frequency 10.7 MHz/450 kHz '
Sensitivity MW: 30 uv US canadlafl MOdEI

V FM/MW/LW COMPACT DISC PLAYER

AEP, UK Model

9-877-000-02 Sony Corporation
2003E04-1 e Vehicle Company
© 2003. 05 Published by Sony Engineering Corporation ®

Page 2

CDX-MP40

Power requirements 12 v DC car battery
(negative ground)
Approx. 178 x 50 x 180 mm
17 1/8 x 2 x 7I/8In.)(W/I1/d)
Mounting dimensions Approx. 182 x 53 x 151 mm

(7 1/4 x 21/11 x 6 1/11 In.) (w/h/d)
Mass Approx. 1.2 kg
(2 lb. 10 02.)
Parts for installation and connections
Front panel case (1)
Card remote commander RMeXl 15

Dimensions

Supplied accessories

Note
This unn cannot be connected to a digital preamplifier or an equalizer
which is Sony BUS System eompauble.

Design and waifitzllmm m nib/m 1!) change nil/mm
HIMLQ.

SERVICE NOTES

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.

The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens

Notes on Chip Component Replacement

' Never reuse a disconnected chip component.

' Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

TEST DISCS
This set can playback CD»R and CDAROM discs. The following
test dls should be used to check the capability:

CD-R test disc TCD-ROSZLMT (Part No. J-25027063e l)
CD-RW test disc TCDEWOSZL (Part No. J»2502-06372)

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

' US, Canadian model
CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

If the optical pickeup block is defective, please replace the whole
optical pick-up block.

Never turn the semieflxed resistor located at the side of optical
pickeup block.

optical pick-up block

semi-fixed resistor

' AEP, UK model

CLASS 1

LASER PRODUCT

This label is located on the bottom of the chassis.

CAUTION-INVISIBLE LASER HADIATTON WHBI OPEN
DO NOT STARE INTO BEAM OH

VIEW DIRECTLY WITH OPTICAL INSTRUMENTS

This label is located on the drive units internal chassis.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!!

LES COMPOSANTS lDENTlFlEs PAR UNE MARQUE A SUR LES
DIAGRAMMES SCHEMATIQUES ET LA LlSTE DES PIECES
SONT CRITIQUES POUR LA sEcuanE DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE MANUEL
0U DANs LES SUPPLEMENTS PUBLIES PAR SONY.
