Extracted text from sony cdx m 620 service manual (Ocr-read)
Page 1
2
optical pick-up bloc k
semi-fixed resistor
SERVICE NOTES
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
Inputs Telephone ATT control
lead
Illumination control lead
BUS control input connector
BUS audio input connector
Antenna input connector (US model)
Aerial input connector (AEP, UK, E model)
AUX IN connector (US model)
Tone controls Bass ±8 dB at 100 Hz
Treble ±8 dB at 10 Hz
Loudness +8 dB at 100 Hz
+2 dB at 10 Hz
Power requirements 12 V DC car battery
(negative earth)
Dimensions Approx. 178 × 50 × 182 mm
(w/h/d)
Mounting dimensions Approx. 182 × 53 × 160 mm
(w/h/d)
Mass Approx. 1.5 kg
Supplied accessories Parts for installation and
connections (1 set)
Front panel case (1)
Card remote commander
RM-X110 (US model)
RM-X111 (AEP, UK, E model)
NoteThis unit cannot be connected to a digital preamplifier or an equalizer.
Design and specifications are subject to change without
notice.
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.
Notes on Chip Component Replacement
-Never reuse a disconnected chip component.
-Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical
pick-up block.
US model:
AEP/UK model:
This label is located on the bottom of the chassis.
This label is located on the drive units internal chassis.
When replacing the chassis (T) of mechanism deck which have
the CAUTION LABEL attached, please be sure to put a new
CAUTION LABEL (3-223-913-11) to the chassis (T).

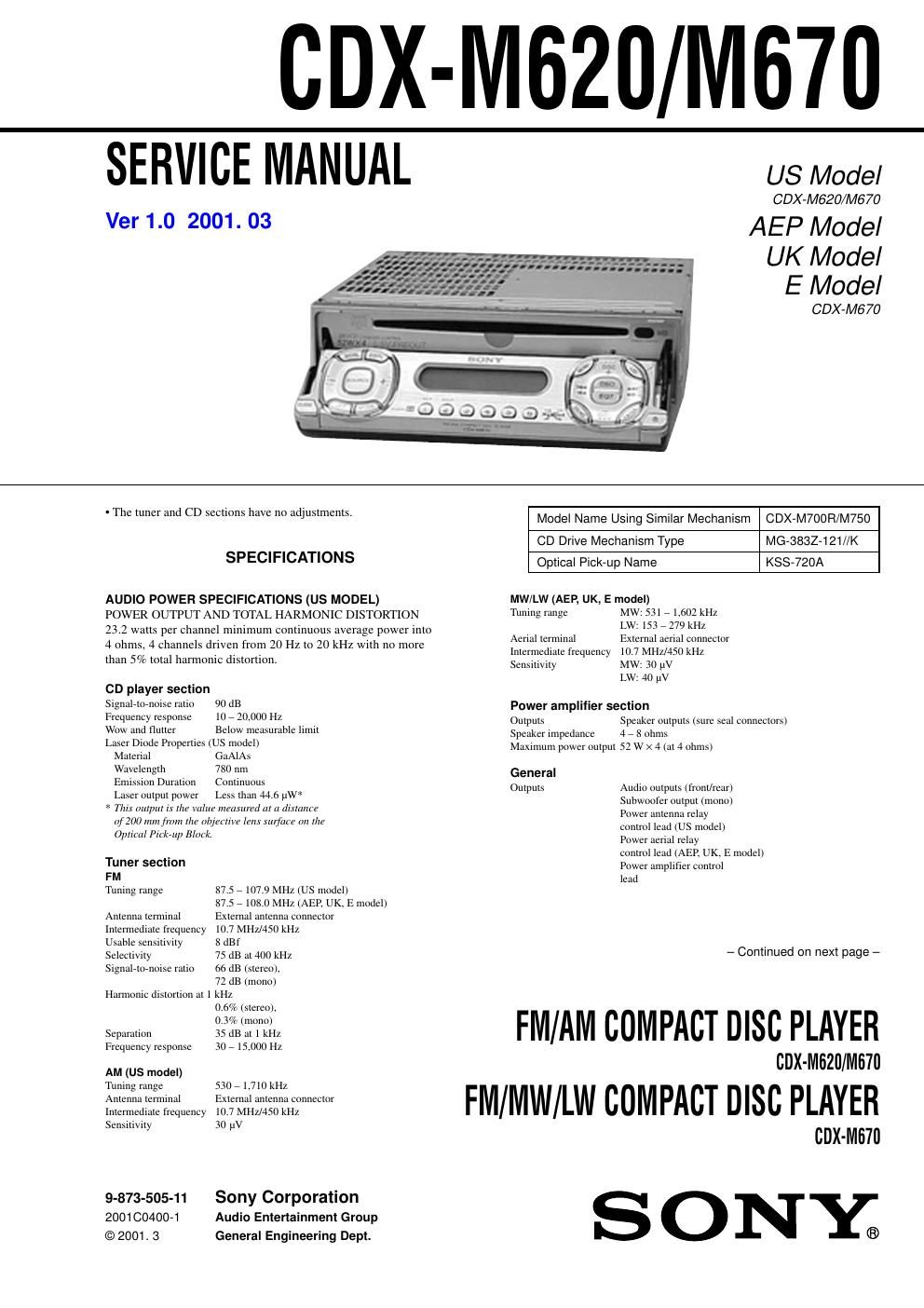

CDX-M620/M670
Page 2
3
stand
TABLE OF CONTENTS
1. GENERAL
........................................................................... 4
2. DISASSEMBLY
2-1. Front Panel Assy (Normal) ............................................... 16
2-2. Front Panel Assy (Inoperative) ......................................... 16
2-3. CD Mechanism Block, Flexible Board ............................. 16
2-4. Sub Panel (CD) Sub Assy ................................................. 17
2-5. Motor Block Assy, Cam (R) Assy ..................................... 17
2-6. Main Board ....................................................................... 18
2-7. Heat Sink ........................................................................... 18
2-8. Chassis (T) Sub Assy ........................................................ 19
2-9. Lever Section .................................................................... 19
2-10. Servo Board ....................................................................... 20
2-11. Shaft Roller Assy ............................................................... 20
2-12. Floating Block Assy .......................................................... 21
2-13. Optical Pick-up Block ....................................................... 21
3. PHASE ALIGNMENT
3-1. Arm (A-L) Assy, Arm (B-L) Assy ..................................... 22
3-2. Cam (L) ............................................................................. 22
3-3. Motor Block ...................................................................... 23
3-4. Alignment between Arm (A-L) Assy
and Arm (B-L) Assy .......................................................... 23
3-5. Arm (A-R) Assy, Arm (B-R) Assy .................................... 24
3-6. Cam (R) ............................................................................. 24
4. DIAGRAMS
4-1. IC Pin Descriptions ........................................................... 25
4-2. Circuit Boards Location .................................................... 33
4-3. Block Diagram -“CD Section-“ ........................................... 34
4-4. Block Diagram -“Tuner Section-“ ....................................... 35
4-5. Block Diagram -“Display Section-“ .................................... 36
4-6. Printed Wiring Boards -“CD Mechanism Section-“ ............ 38
4-7. Schematic Diagram -“CD Mechanism Section (1/2)-“ ....... 40
4-8. Schematic Diagram -“CD Mechanism Section (2/2)-“ ....... 41
4-9. Printed Wiring Boards -“Main Section-“ ............................ 42
4-10. Schematic Diagram -“Main Section (1/4)-“ ........................ 44
4-11. Schematic Diagram -“Main Section (2/4)-“ ........................ 45
4-12. Schematic Diagram -“Main Section (3/4)-“ ........................ 46
4-13. Schematic Diagram -“Main Section (4/4)-“ ........................ 47
4-14. Printed Wiring Board -“Sub (CD) Section-“ ....................... 48
4-15. Schematic Diagram -“Sub (CD) Section-“ .......................... 49
4-16. Printed Wiring Board -“Key Section-“ ................................ 50
4-17. Schematic Diagram -“Key Section-“ .................................. 51
4-18. Printed Wiring Board -“Display Section-“ .......................... 52
4-19. Schematic Diagram -“Display Section-“ ............................. 53
5. EXPLODED VIEWS
5-1. Chassis Section ................................................................. 56
5-2. Cam Section ...................................................................... 57
5-3. Main Board Section .......................................................... 58
5-4. Front Panel (Key) Assy Section ........................................ 59
5-5. Front Panel (Dspl) Assy Section ....................................... 60
5-6. CD Mechanism Section (1) ............................................... 61
5-7. CD Mechanism Section (2) ............................................... 62
5-8. CD Mechanism Section (3) ............................................... 63
6. ELECTRICAL PARTS LIST ........................................ 64 NOTE FOR THE OPENING OF THE FRONT PANEL
In this set, the front panel is lowered to below the bottom face when
it is opened.
When servicing the set, place it on a stand having a height of about
2 cm.
TEST MODE
1. Turn on the power.
2. Push 4 on the card remote control for 2 sec.
3. Push 5 on the control for 2 sec.
4. Push 1 on the control for 2 sec.
(The TEST MODE is entered.)
5. Push the OPEN/CLOSE switch on the control for 2 sec.
6. The front panel detouch position is set.
(No display appears at this time.)
7. Turn off the power and disassemble the set.
CDX-M620/M670
